Brand:Schneider PLC Item No.:ATS22C25S6 Product Origin:France Product Dimensions:425 x 206 x 299 mm Product Weight:33 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

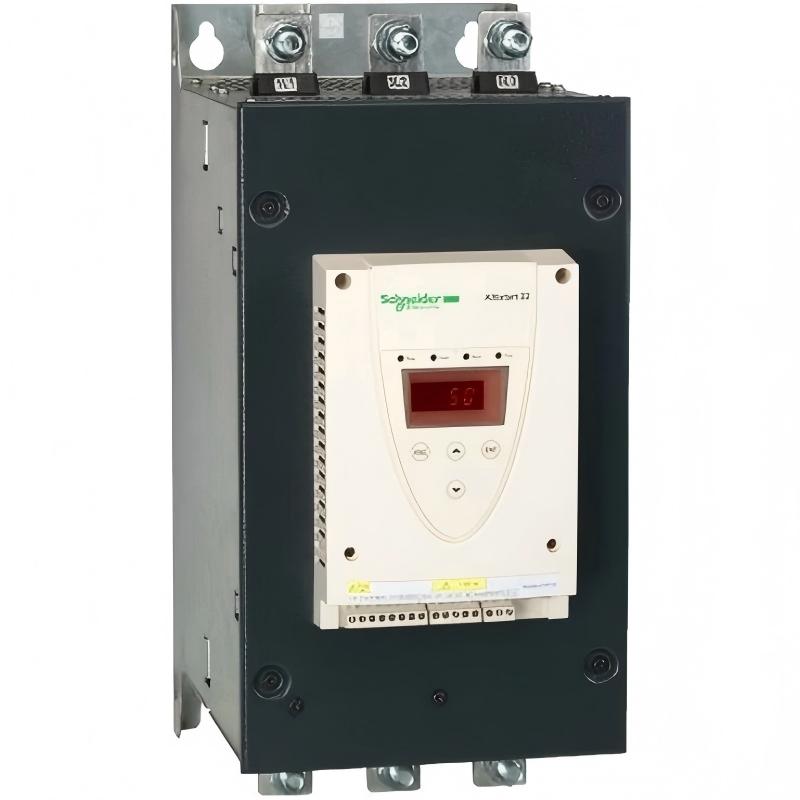

The ATS22C25S6 belongs to Schneider Electric’s Altistart 22 series, engineered for controlled starting and stopping of three-phase motors in demanding industrial environments. It uses voltage ramp technology to reduce inrush current and minimize mechanical stress on driven equipment.
This model combines SCR-based power control with integrated bypass functionality, ensuring efficient thermal performance and stable long-term operation. Its rugged design makes it suitable for high-demand industrial applications such as process plants, heavy manufacturing, and infrastructure systems where reliability is critical.
ATS22C14Q – Widely used in HVAC and pumping systems
ATS22C11Q – Common in general industrial automation applications
ATS480C25Q – Modern upgraded alternative for high-performance systems
Applications
The Schneider ATS22C25S6 Soft Starter Module is designed for heavy-duty industrial motor control applications where high current capacity, smooth torque control, and reduced electrical stress are required. It is widely used in large-scale automation systems and continuous production environments.
Typical applications include:
Large industrial pumping systems (water supply, wastewater, process transfer)
HVAC chillers, cooling towers, and air handling systems
High-power compressor stations and process air systems
Conveyor systems for bulk material handling
Mining, cement, steel, and heavy manufacturing equipment
High-load three-phase induction motor drives
Its controlled voltage ramp reduces mechanical shock and electrical inrush, improving system reliability and extending equipment lifespan in demanding industrial conditions.
Advantages
High-capacity 250A industrial design for heavy motor loads
Smooth torque ramping reduces mechanical stress on drivetrains
Integrated bypass function improves thermal efficiency after start-up
Stable soft start/soft stop improves process continuity
Robust construction for harsh industrial environments
Compatible with PLC and industrial automation systems
Built-in motor protection enhances safety and reliability
Reduces downtime and maintenance costs in continuous operations
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C25S6?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current?
It is rated at 250 A.
Q3: What is the typical power range?
It supports approximately 75–132 kW (line connection) and higher in delta configurations depending on supply conditions.
Q4: What supply voltage does it support?
It operates in the 230–600 V AC range.
Q5: Does it include an internal bypass?
Yes, it includes an integrated bypass contactor for improved efficiency.
Q6: Can it be used in pump systems?
Yes, it is widely used in pumping applications to reduce water hammer effects.
Q7: Is it suitable for HVAC systems?
Yes, it is commonly applied in HVAC and cooling infrastructure.
Q8: Does it support PLC integration?
Yes, it integrates with standard industrial automation systems.
Q9: Does it require complex commissioning?
No, setup is relatively straightforward with standard parameter configuration.
Q10: Can it be used in retrofit projects?
Yes, it is commonly used for upgrading existing motor control systems.
