Brand:Schneider PLC Item No.:ATS22C41Q Product Origin:France Product Dimensions:425 x 206 x 299 mm Product Weight:33 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

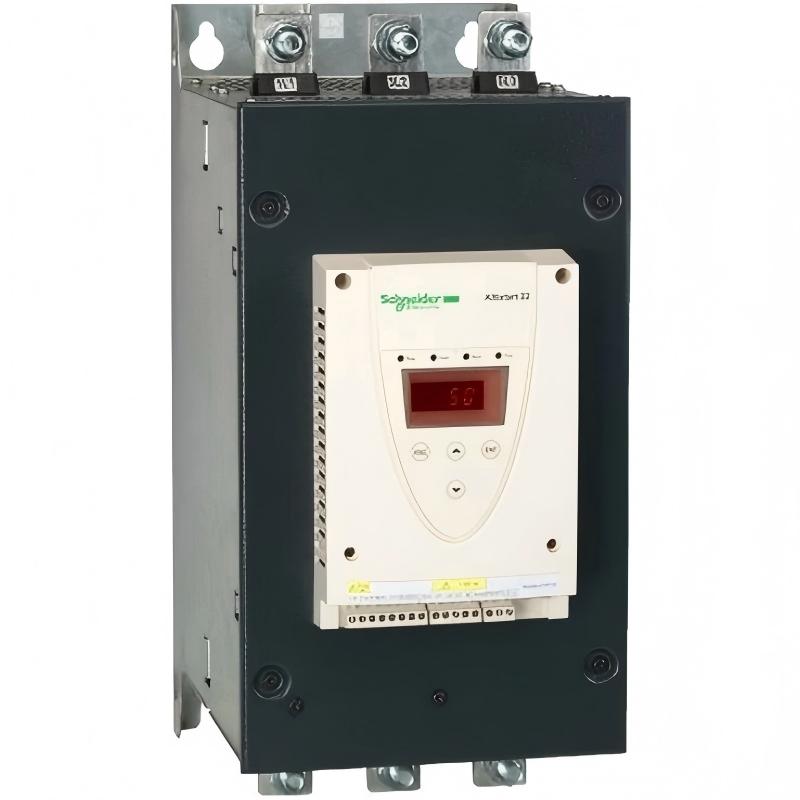

The ATS22C41Q belongs to Schneider Electric’s Altistart 22 series, designed for controlled starting and stopping of three-phase induction motors in demanding industrial environments. It uses voltage ramp technology combined with torque control to reduce inrush current and minimize mechanical stress during motor startup.
This model integrates SCR-based power control with an internal bypass system, ensuring efficient thermal management and stable long-term operation. Its high current capacity and robust construction make it suitable for infrastructure, heavy manufacturing, and process industries where uptime and reliability are critical.
ATS22C32S6 – Widely used heavy-duty industrial variant
ATS22C25Q – Common in HVAC and pumping systems
ATS480C41Q – Modern upgraded alternative for advanced automation systems
Applications
The Schneider ATS22C41Q Soft Starter Module is designed for high-power industrial motor control applications where smooth acceleration, reduced electrical stress, and controlled torque are required. It is widely used in large-scale automation systems and continuous process industries that demand stable and reliable motor starting performance.
Typical applications include:
Large industrial pumping stations (water supply, wastewater, process pipelines)
HVAC chillers, cooling towers, and ventilation systems
High-capacity compressor installations
Conveyor and bulk material handling systems
Mining, cement, steel, and heavy industrial machinery
High-power three-phase induction motor drives
Its controlled voltage ramp significantly reduces mechanical shock and electrical inrush current, improving system stability and extending equipment life in heavy-duty environments.
Advantages
High-current industrial design suitable for up to 220 kW class motors
Smooth torque control reduces mechanical stress on drivetrain systems
Integrated bypass contactor improves thermal efficiency after startup
Stable soft start and soft stop improves process reliability
Robust construction for harsh industrial environments
Compatible with PLC and industrial automation systems
Built-in motor protection enhances operational safety
Reduces downtime and maintenance costs in continuous operation systems
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C41Q?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
The rated current is 410 A.
Q3: What is the supply voltage range?
It operates in the 230–440 V AC range for industrial power systems.
Q4: What is the motor power range?
It supports approximately 110 kW at 230 V and up to 220 kW at 400–440 V.
Q5: Does it include an internal bypass?
Yes, it features an integrated bypass contactor to reduce heat dissipation.
Q6: Is it suitable for pump systems?
Yes, it is widely used in pumping applications to reduce water hammer effects.
Q7: Can it be used in HVAC systems?
Yes, it is commonly applied in HVAC and ventilation systems.
Q8: Does it support PLC integration?
Yes, it integrates easily with industrial automation systems.
Q9: Does it support Modbus communication?
Yes, Modbus RTU communication is supported.
Q10: Can it be used for retrofit projects?
Yes, it is commonly used for upgrading and modernizing existing motor control systems.
