Brand:Schneider PLC Item No.:ATS22C41S6U Product Origin:France Product Dimensions:425 x 206 x 299 mm Product Weight:33 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

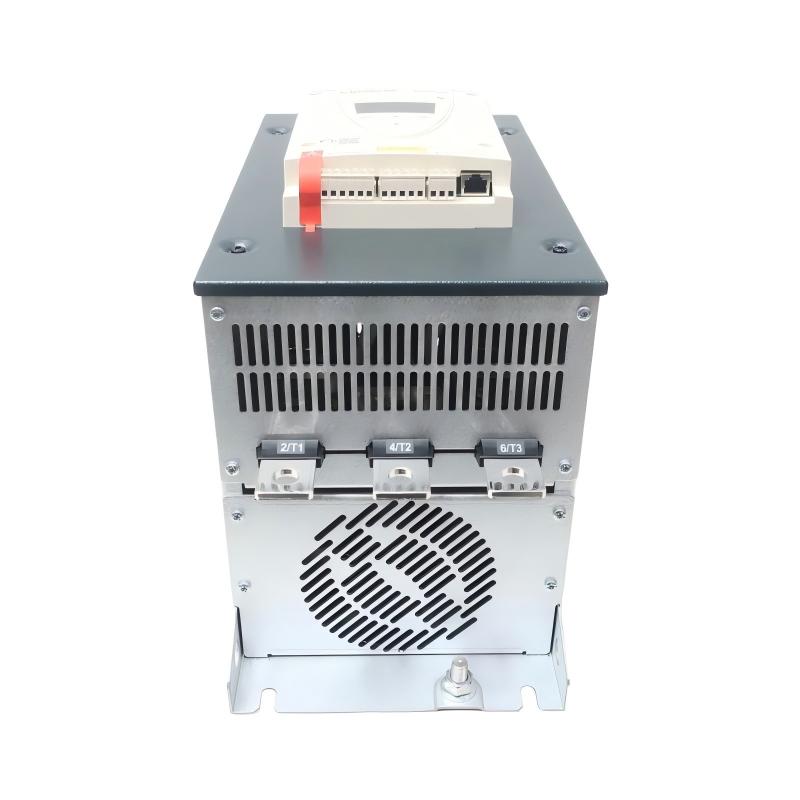

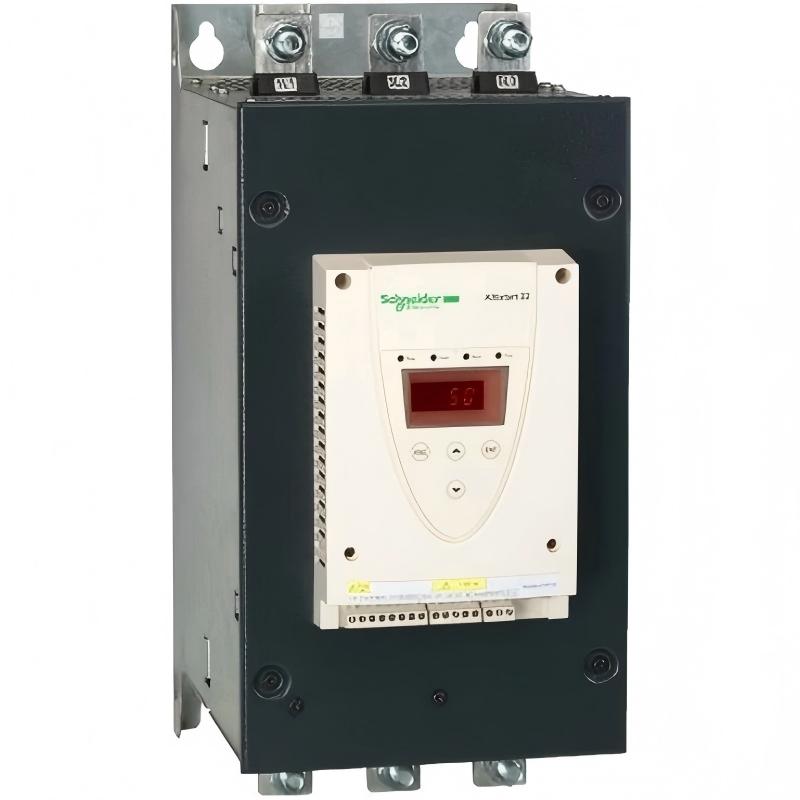

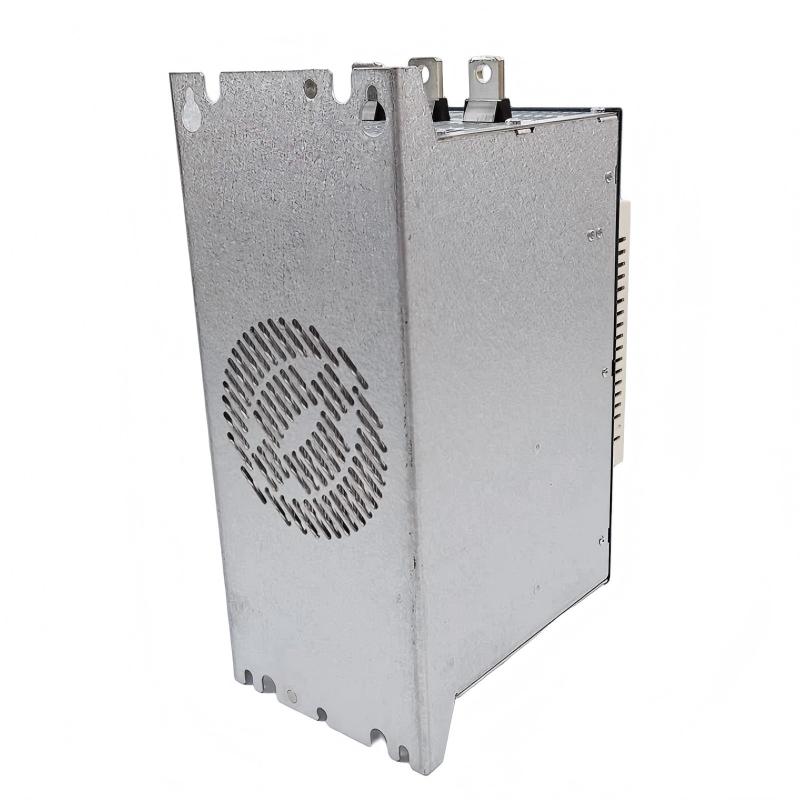

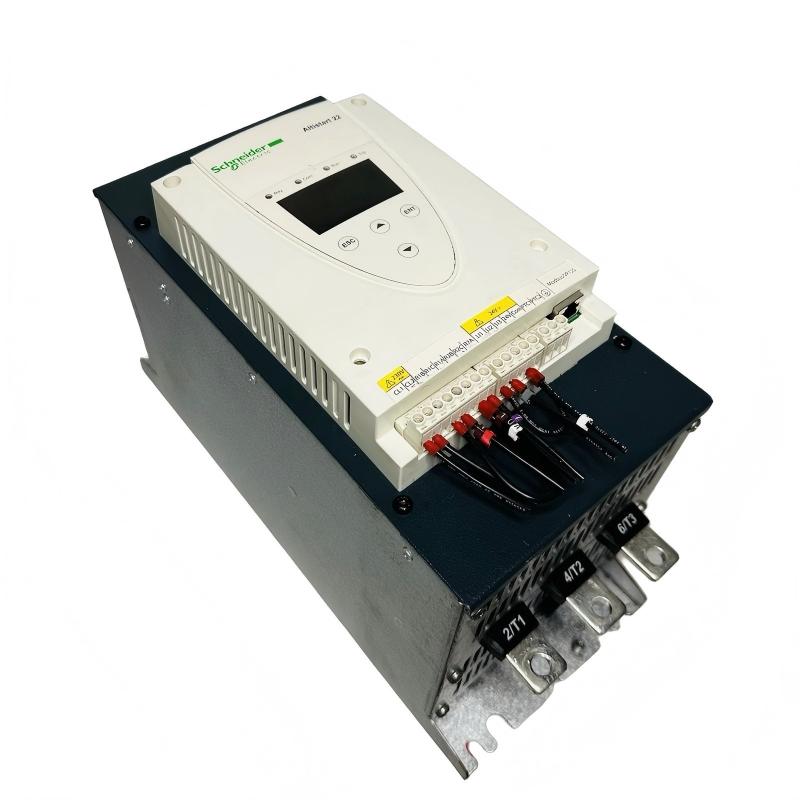

The ATS22C41S6U belongs to Schneider Electric’s Altistart 22 series, engineered for controlled starting and stopping of high-power three-phase induction motors. It uses voltage ramp technology combined with torque control to reduce inrush current and minimize mechanical stress during motor startup.
This model integrates SCR-based power control with an internal bypass system, ensuring efficient thermal management and stable long-term performance. It has been widely used in industrial infrastructure, process plants, and heavy-duty manufacturing systems where uptime and equipment protection are critical.
However, this reference has now reached its end-of-commercialization stage, and Schneider Electric positions newer ATS430-series devices as its direct replacement for future projects.
ATS22C41S6 – Closely related S6 variant widely used in legacy systems
ATS22C32S6 – Common in heavy-duty pumping and conveyor systems
ATS430C41S6 – Modern replacement for upgraded automation projects
Applications
The Schneider ATS22C41S6U Soft Starter Module is designed for high-power industrial motor control applications where controlled acceleration, reduced inrush current, and stable torque performance are essential. It is widely used in heavy-duty automation systems and continuous process industries requiring high reliability and long service life.
Typical applications include:
Large-scale water pumping and distribution systems
Industrial HVAC chillers, cooling towers, and ventilation plants
High-capacity compressor stations and air handling systems
Conveyor systems for bulk and continuous material transport
Mining, cement, steel, and heavy manufacturing equipment
High-power three-phase induction motor drive systems
Its voltage ramp control significantly reduces mechanical stress and electrical shock during startup, improving overall system stability and reducing maintenance requirements.
Advantages
High-current 410A industrial design suitable for heavy motor loads
Smooth torque ramping reduces mechanical stress on drivetrain components
Integrated bypass contactor improves thermal efficiency after startup
Stable soft start/soft stop enhances process reliability
Robust construction for harsh industrial environments and continuous duty
Compatible with PLC and industrial automation systems
Built-in motor protection improves operational safety
Reduces downtime and maintenance costs in high-load applications
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C41S6U?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
The rated current is approximately 410 A depending on configuration.
Q3: What is the supply voltage range?
It operates in the 208–600 V AC industrial voltage range.
Q4: What is the motor power range?
It supports approximately 125 hp (208 V) up to 350 hp (575 V).
Q5: Does it include an internal bypass function?
Yes, it includes an integrated bypass contactor for reduced heat dissipation after startup.
Q6: Is it suitable for pump systems?
Yes, it is widely used in pumping applications to reduce water hammer effects.
Q7: Can it be used in HVAC systems?
Yes, it is commonly applied in HVAC and ventilation systems.
Q8: Does it support PLC integration?
Yes, it integrates with standard industrial automation systems.
Q9: Does it support Modbus communication?
Yes, Modbus RTU communication is supported via RS485 interface.
Q10: Is this model still available for new projects?
No, it has been discontinued, with a recommended replacement in the ATS430 series.
