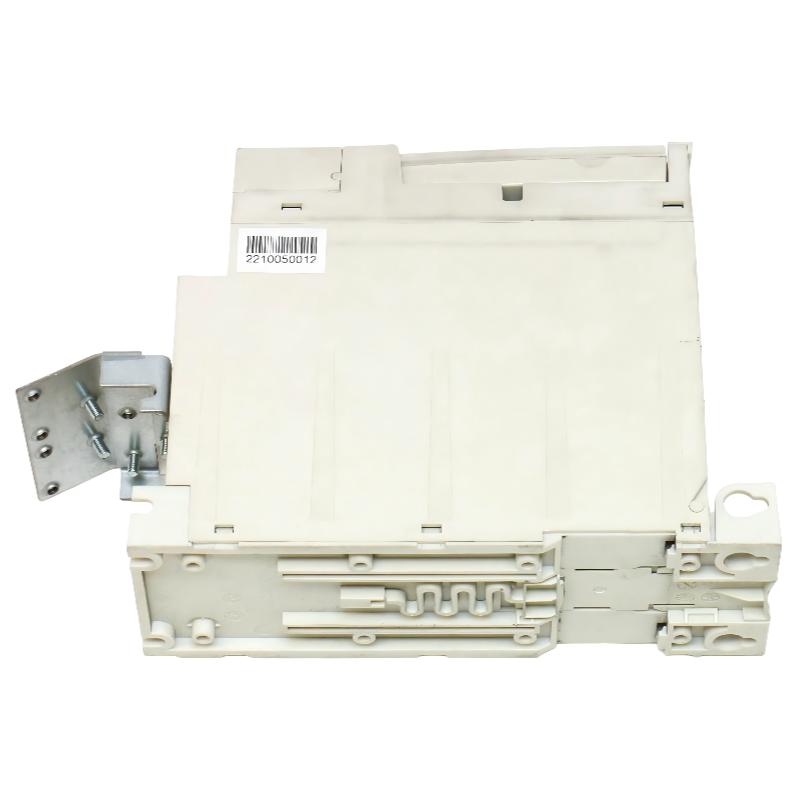

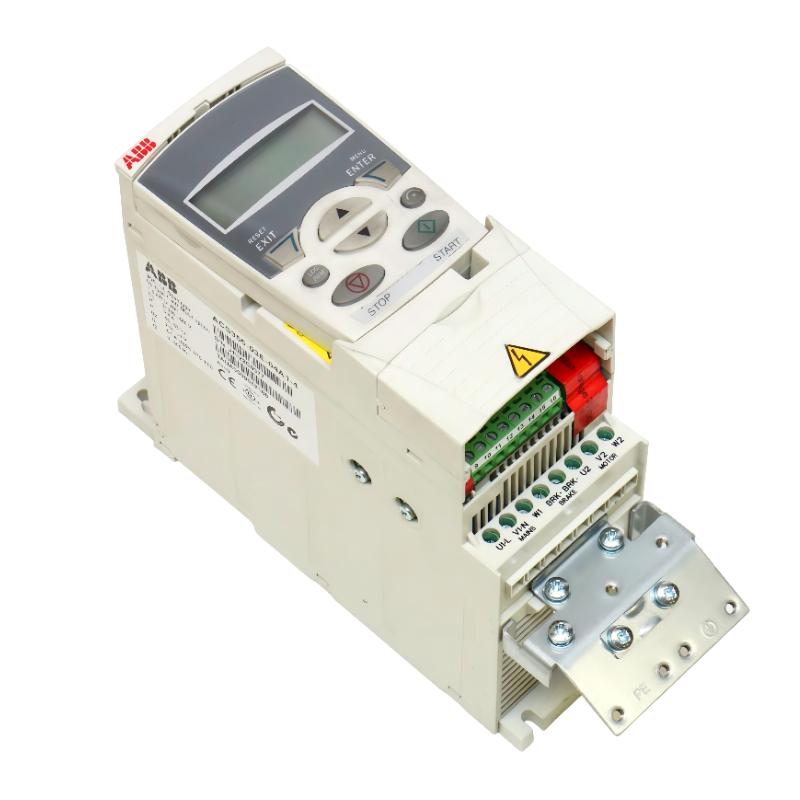

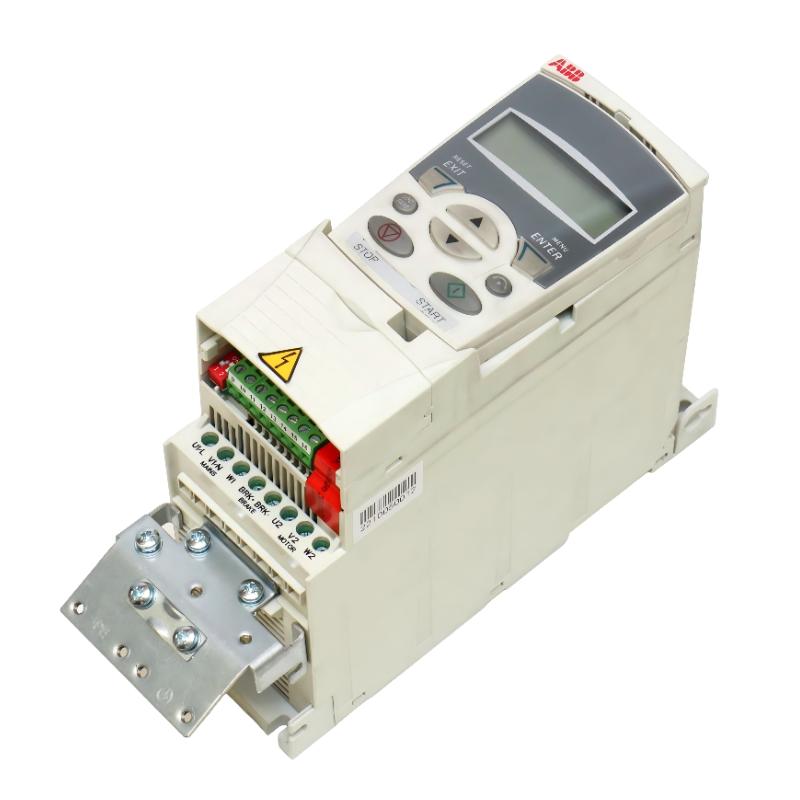

ABB ACS355-03E-04A1-4 3ABD0000058246 Frequency Converter
ABB ACS355-03E-04A1-4 3ABD0000058246 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS355-03E-04A1-4 Product Origin:Sweden (SE) Product Dimensions:169 × 70 × 161 mm Product Weight:1.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS355-03E-04A1-4 is a compact industrial frequency converter designed for efficient motor control in machinery automation systems. It delivers precise speed regulation, reliable torque response, and simplified commissioning, making it a strong choice for equipment builders and system integrators.
Its compact architecture allows integration into space-constrained control cabinets while maintaining high performance in dynamic industrial environments such as conveyors, pumps, and processing machinery. The drive is part of ABB’s ACS355 series, known for balancing usability, reliability, and cost efficiency in OEM applications.
Technical Specifications
Parameter
Specification
Product Model
ACS355-03E-04A1-4 (3ABD0000058246)
Series
ACS355
Brand
ABB
Supply Voltage
380–480 V AC
Output Current
4.1 A
Rated Power
1.5 kW
Control Method
Sensorless vector control
Enclosure Class
IP20
Dimensions (H×W×D)
169 × 70 × 161 mm
Weight
1.08 kg (2.38 lb)
Braking Function
Built-in braking chopper
Application Type
Industrial machinery motor control
Applications
The ABBACS355-03E-04A1-4 frequency converter is engineered for compact machinery control applications requiring precise motor speed regulation and stable torque performance. It is widely deployed in OEM systems where space efficiency and fast commissioning are critical.
Conveyor and material handling systems
Pump and fan speed control in HVAC systems
Packaging and labeling machinery
Textile and printing equipment drives
Woodworking and light industrial automation lines
Small compressor and processing equipment
General-purpose industrial motor control systems
Advantages
This drive combines compact design with advanced motor control functionality to support efficient and reliable industrial operation.
Sensorless vector control for smooth torque response
Compact footprint for cabinet-friendly installation
Built-in braking chopper for improved deceleration control
Quick commissioning with application macros
Stable operation across wide industrial load variations
Integrated safety functions (including STO capability depending on configuration)
Optimized for OEM-level repeatable performance
Technical FAQs (10 Questions)
Q1: What type of motors is this drive compatible with?
It supports standard AC induction motors and permanent magnet motors.
Q2: Does it support speed control or torque control?
Yes, it supports both speed and torque control depending on parameter setup.
Q3: Is external braking hardware required?
Not always; a built-in braking chopper is included for many applications.
Q4: Can it be used in conveyor systems?
Yes, it is commonly used for conveyor speed regulation and synchronization.
Q5: Does it support PLC integration?
Yes, it can integrate via standard industrial I/O or fieldbus modules.
Q6: What is the main advantage of sensorless vector control?
It provides accurate torque control without requiring an encoder.
Q7: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial duty cycles.
Q8: Can it handle rapid speed changes?
Yes, it supports fast acceleration and deceleration profiles.
Q9: What protection features are included?
Overcurrent, overvoltage, undervoltage, and thermal protection functions.
Q10: Is it suitable for OEM machine builders?
Yes, it is specifically optimized for OEM and machine integration markets.
