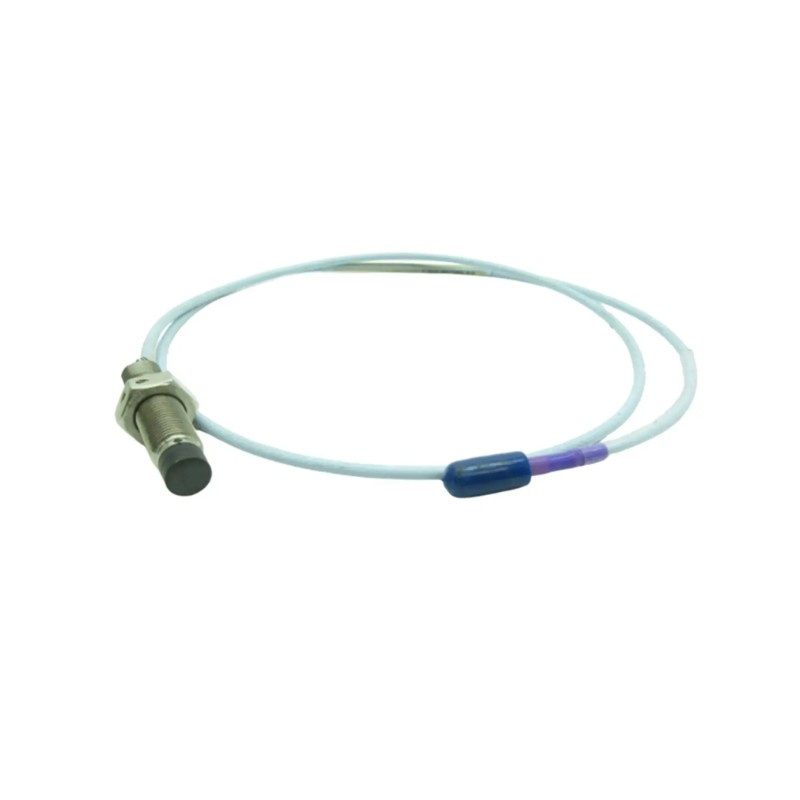

The Bently Nevada 330703-000-120-10-02-00 is a 3300 XL 11 mm Proximity Probe engineered for continuous, non-contact measurement of shaft vibration, axial position, differential expansion, and shaft displacement in critical rotating machinery.
As a key component of the 3300 XL Proximity Transducer System, this probe is designed to deliver stable measurement performance in demanding industrial environments. It is commonly installed on steam turbines, gas turbines, compressors, pumps, generators, and large electric motors, helping maintenance teams improve equipment reliability while reducing unexpected downtime.
Featuring a 120 mm probe case, 1.0 m integral cable, and a Miniature ClickLoc coaxial connector, the probe offers reliable installation and excellent compatibility with 3300 XL monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330703-000-120-10-02-00 |
| Series | 3300 XL |
| Product Type | Proximity Probe |
| Sensing Technology | Eddy Current, Non-contact Measurement |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 120 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Standard Cable |
| Agency Approval | Standard Version |
| Measurement Functions | Shaft Vibration, Axial Position, Shaft Displacement, Differential Expansion |
| Compatible System | Bently Nevada 3300 XL 11 mm Proximity Transducer System |
| Installation | Industrial Machine Monitoring |
Dimensions & Weight
| Item | Value |
|---|---|
| Probe Diameter | 11 mm |
| Case Length | 120 mm |
| Cable Length | 1.0 m |
| Thread | M14 × 1.5 |
| Approximate Weight | 0.10 kg |
The extended probe body allows greater installation flexibility where deeper mounting arrangements are required while maintaining reliable sensing performance.
