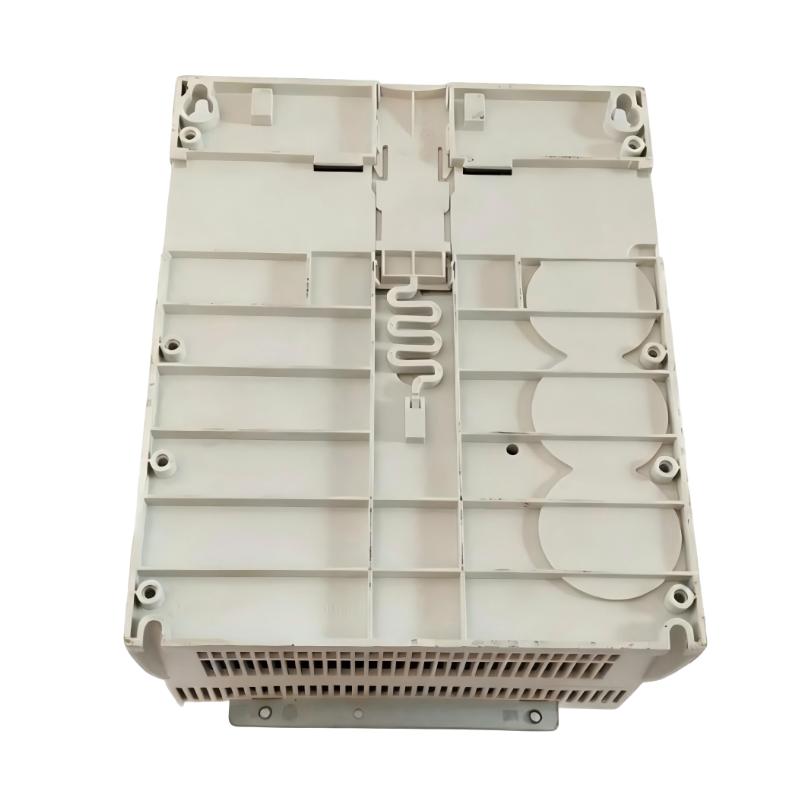

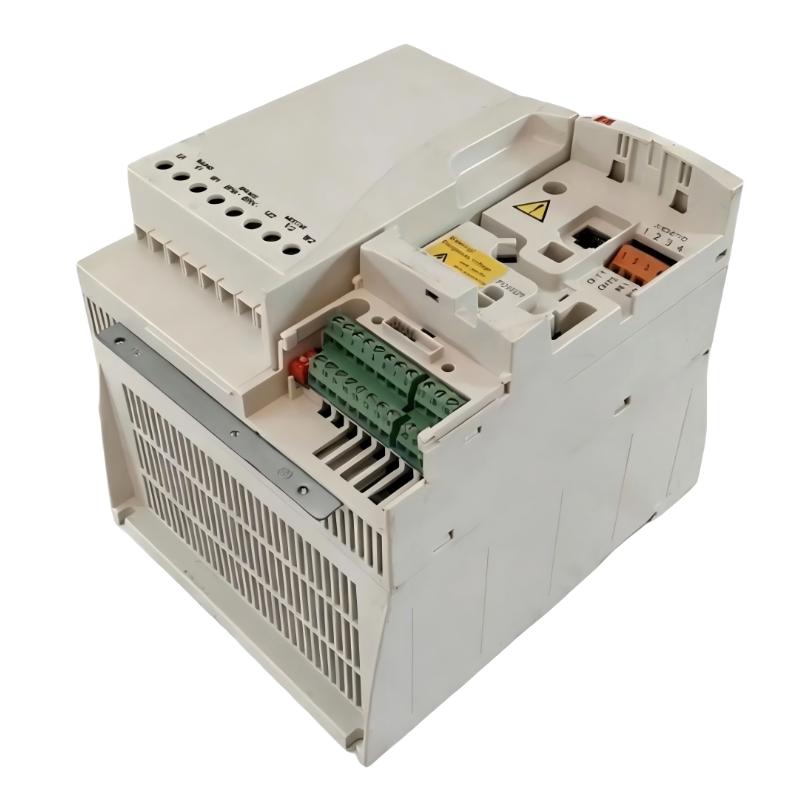

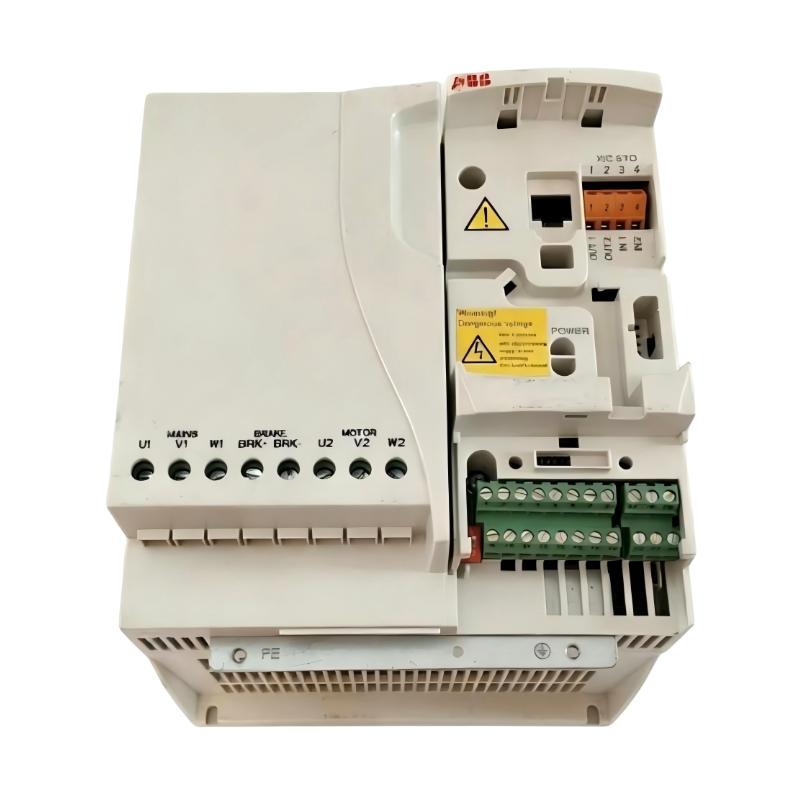

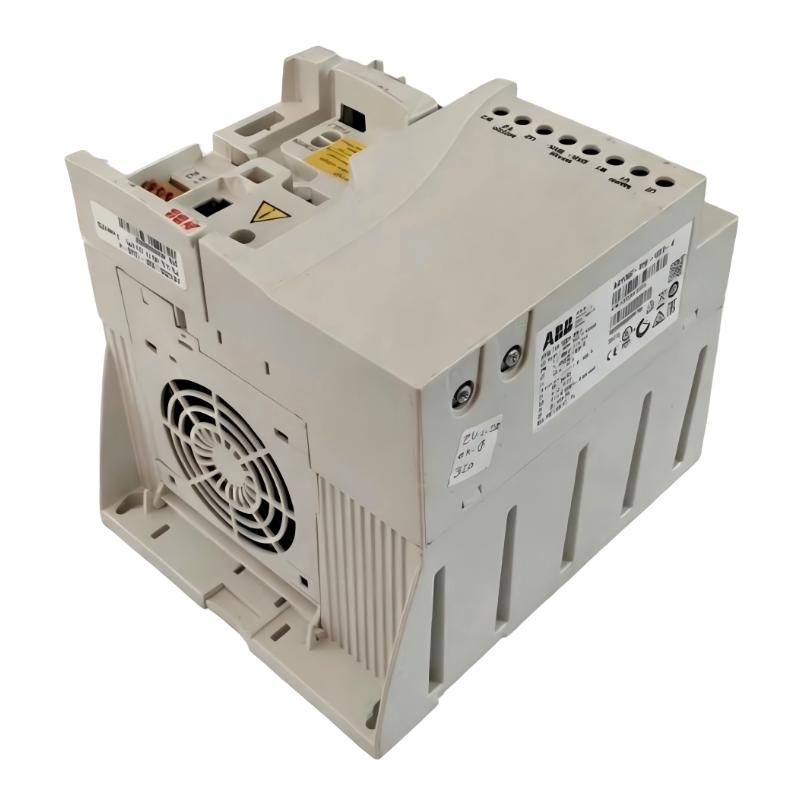

ABB ACS355-03E-12A5-4 3AUA0000058190 Frequency Converter
ABB ACS355-03E-12A5-4 3AUA0000058190 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS355-03E-12A5-4 Product Origin:Sweden (SE) Product Dimensions:236 × 169 × 169 mm Product Weight:3.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS355-03E-12A5-4 is a compact industrial frequency converter designed for efficient and precise motor control in automation and machinery systems. It provides stable torque performance, flexible configuration, and simplified commissioning, making it suitable for a wide range of OEM applications.
As part of ABB’s ACS355 series, it bridges compact design and higher power capability, making it ideal for machine builders who require reliable performance in more demanding load conditions without increasing cabinet footprint.
Technical Specifications
Parameter
Specification
Product Model
ACS355-03E-12A5-4 (3AUA0000058190)
Series
ABB ACS355
Brand
ABB
Supply Voltage
380–480 V AC
Output Current
12.5 A
Rated Power
5.5 kW
Control Method
Sensorless vector control / V/f control
Enclosure Class
IP20
Dimensions (H × W × D)
236 × 169 × 169 mm
Weight
3.2 kg (7.05 lb)
Output Frequency
0–599 Hz
Braking Function
Built-in braking chopper
Safety Function
STO (Safe Torque Off, depending on configuration)
Application Type
Industrial OEM machinery motor control
Recommended Related Models
ACS355-03E-08A8-4
ACS355-03E-07A3-4
ACS355-03E-14A8-4
ACS355-03U-12A5-4
ACS355-03E-05A6-4
Popular Related Models
ACS355-03E-12A5-4
ACS355-03E-08A8-4
ACS355-03E-07A3-4
ACS355-03E-04A1-4
ACS355-03U-04A1-4
Applications
The ABB ACS355-03E-12A5-4 frequency converter is a high-performance compact drive designed for OEM machinery requiring precise motor control, stable torque response, and efficient integration into automation systems.
Conveyor and material handling systems
Industrial pump and fan control (HVAC systems)
Packaging and filling machines
Textile and printing equipment
Woodworking and processing machinery
Light industrial automation lines
General-purpose OEM motor drive applications
Advantages
This model offers higher power capacity within the ACS355 compact platform while maintaining ABB’s signature reliability and control precision.
Advanced sensorless vector control for smooth torque output
High overload capability for demanding industrial cycles
Compact design optimized for control cabinet installation
Built-in braking chopper for efficient deceleration control
Fast setup via application macros and intuitive parameters
Stable performance under variable load conditions
Integrated safety functions (including STO depending on configuration)
Technical FAQs (10 Questions)
Q1: What motor types are supported?
It supports standard AC induction motors and permanent magnet motors.
Q2: What is the rated motor power?
It is rated at 5.5 kW for industrial applications.
Q3: What is the output current?
The nominal output current is 12.5 A.
Q4: What control methods are available?
It supports sensorless vector control and V/f control modes.
Q5: Does it support braking functionality?
Yes, it includes a built-in braking chopper for dynamic braking.
Q6: Can it be integrated into PLC systems?
Yes, it supports standard I/O and optional fieldbus communication modules.
Q7: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial duty cycles.
Q8: What protection features are included?
Overcurrent, overvoltage, undervoltage, and thermal protection.
Q9: What is STO functionality?
STO (Safe Torque Off) ensures safe motor shutdown for safety systems.
Q10: What industries commonly use this drive?
OEM machinery, conveyors, HVAC systems, packaging, and automation lines.
