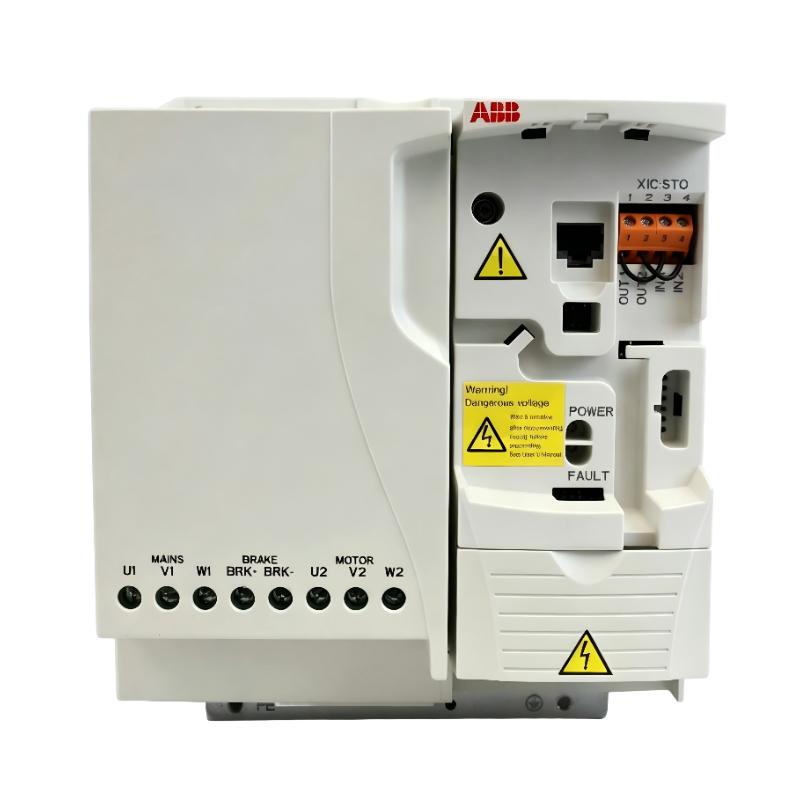

ABB ACS355-03E-23A1-4 3AUA0000058192 Frequency Converter
ABB ACS355-03E-23A1-4 3AUA0000058192 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS355-03E-23A1-4 Product Origin:Sweden (SE) Product Dimensions:236 × 169 × 169 mm Product Weight:3.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS355-03E-23A1-4 is a compact high-power frequency converter designed for efficient motor control in industrial automation and OEM machinery. It provides reliable speed regulation, stable torque response, and simplified commissioning, making it suitable for more demanding mechanical loads.
As part of the ABB ACS355 series, this model extends the power range while maintaining a compact footprint and easy integration into control cabinets. It is widely used where consistent motor performance directly impacts productivity and machine stability.
Technical Specifications
Parameter
Specification
Product Model
ACS355-03E-23A1-4 (3AUA0000058192)
Series
ABB ACS355
Brand
ABB
Supply Voltage
380–480 V AC
Output Current
23.1 A
Rated Power
11 kW
Control Method
Sensorless vector control / V/f control
Enclosure Class
IP20
Dimensions (H × W × D)
236 × 169 × 169 mm (typical R3 frame)
Weight
3.1 kg (6.83 lb)
Output Frequency
0–599 Hz
Braking Function
Built-in braking chopper
Safety Function
STO (Safe Torque Off, depending on configuration)
Application Type
Industrial OEM machinery motor control
Recommended Related Models
ACS355-03E-15A6-4
ACS355-03E-12A5-4
ACS355-03E-08A8-4
ACS355-03U-23A1-4
ACS355-03E-18A6-4
Popular Related Models
ACS355-03E-23A1-4
ACS355-03E-15A6-4
ACS355-03E-12A5-4
ACS355-03E-08A8-4
ACS355-03E-07A3-4
Applications
The ABB ACS355-03E-23A1-4 frequency converter is designed for higher-power OEM machinery requiring stable motor control, precise speed regulation, and strong torque performance in compact industrial automation systems.
Conveyor and heavy material handling systems
Industrial pump and fan control systems
Packaging, filling, and processing machinery
Textile production equipment
Woodworking and cutting machinery
Light-to-medium industrial automation lines
General-purpose OEM motor drive applications
Advantages
This model delivers higher output capacity while maintaining the compact and user-friendly ACS355 architecture, making it suitable for demanding OEM environments.
Sensorless vector control for smooth torque performance
High efficiency motor control with stable speed regulation
Built-in braking chopper for controlled deceleration
Compact cabinet-friendly design
Fast commissioning via application macros
Strong overload capability for dynamic loads
Integrated STO safety function (depending on configuration)
Technical FAQs (10 Questions)
Q1: What motor types are supported?
It supports standard AC induction motors and permanent magnet motors.
Q2: What is the rated power?
The drive is rated at 11 kW.
Q3: What is the output current?
The nominal output current is 23.1 A.
Q4: What is the supply voltage range?
It operates on 380–480 V AC three-phase power.
Q5: Does it support torque control?
Yes, via sensorless vector control mode.
Q6: Is a braking resistor required?
Not always; it includes a built-in braking chopper.
Q7: Can it be used with PLC systems?
Yes, it supports standard I/O and optional fieldbus communication.
Q8: What protection functions are included?
Overcurrent, overvoltage, undervoltage, and thermal protection.
Q9: What is STO functionality?
STO (Safe Torque Off) disables motor torque for safety circuits.
Q10: What industries commonly use this drive?
OEM machinery, conveyors, HVAC systems, packaging, and general automation.
