Brand:ABB PLC Item No.:V18345-1010261001 Product Origin:Sweden (SE) Product Dimensions:168.5 × 101 × 114.5 mm Product Weight:1.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

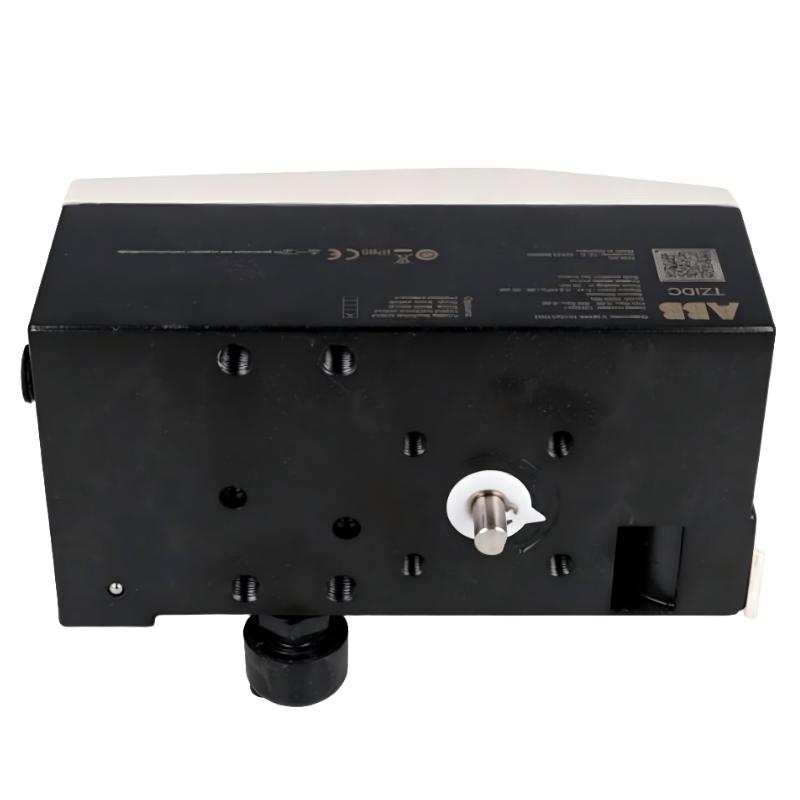

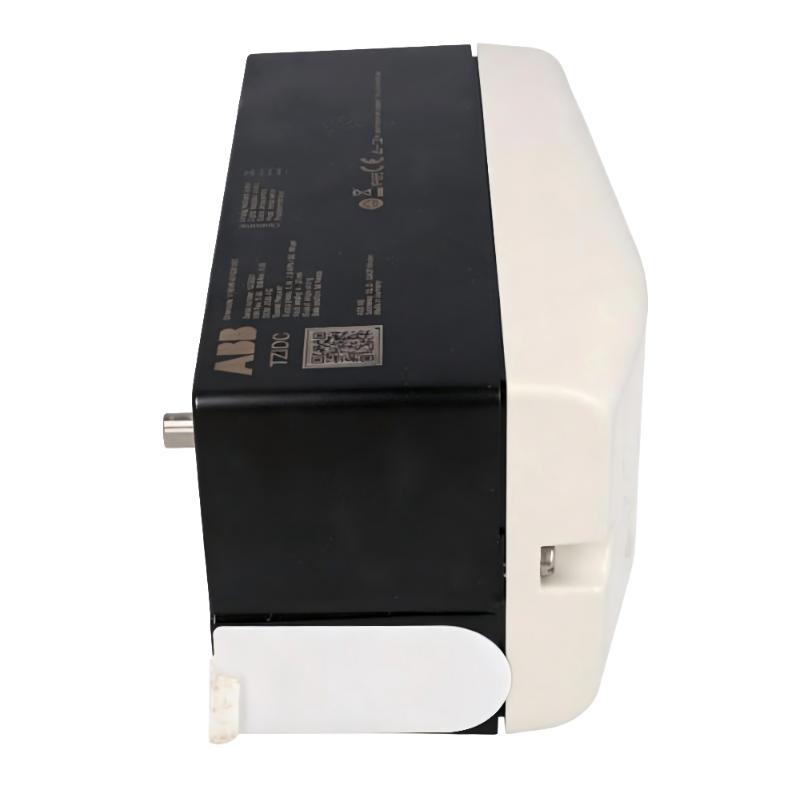

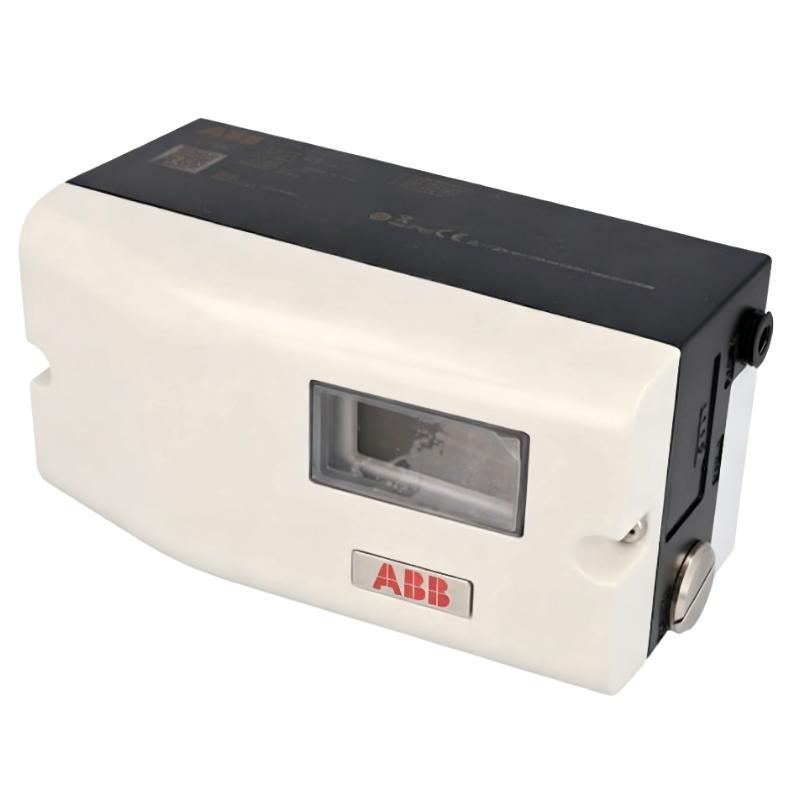

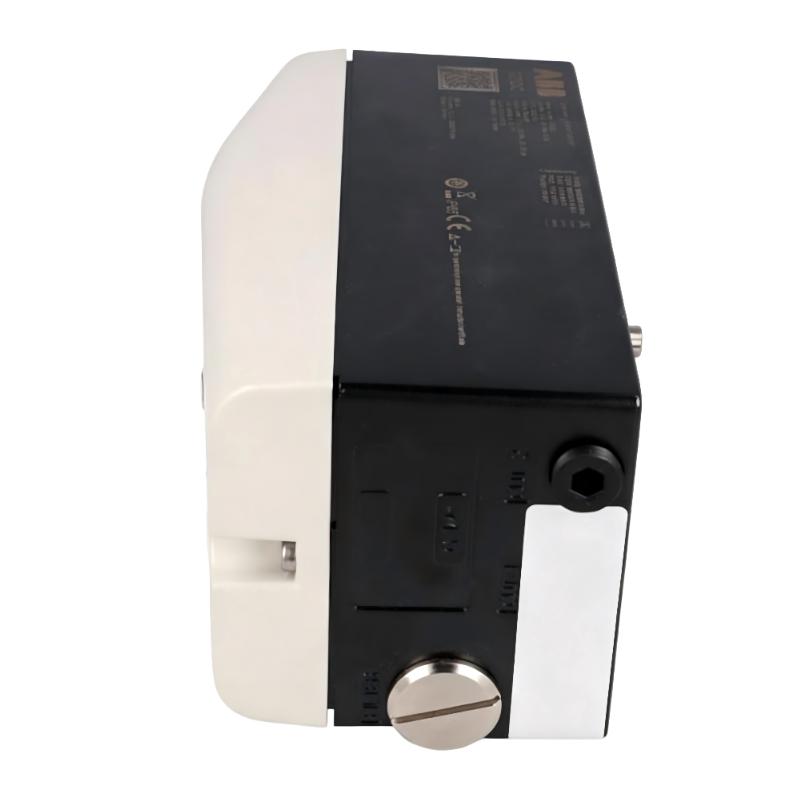

The ABB V18345-1010261001 is a TZIDC intelligent valve positioner designed for precise and reliable control of process valves in demanding industrial environments. It delivers accurate positioning performance by continuously adjusting pneumatic output based on real-time control signals.
Built with a rugged industrial housing and microprocessor-based control architecture, this positioner ensures stable operation even under fluctuating pressure, vibration, and temperature conditions. Its adaptive control algorithm allows fast commissioning and consistent long-term performance, making it a strong choice for modern process automation systems.
Technical Specifications
Parameter
Specification
Product Model
V18345-1010261001
Brand
ABB
Series
TZIDC
Device Type
Electro-pneumatic valve positioner
Control Signal
4–20 mA (two-wire)
Communication
HART (depending on configuration)
Mounting Standard
NAMUR / VDI-VDE 3845
Enclosure Protection
IP65 / IP66
Housing Material
Aluminum alloy
Dimensions
168.5 × 101 × 114.5 mm
Weight
1.7 kg (3.75 lb)
Operating Pressure Range
1.4–6 bar (typical)
Application
Industrial valve automation and process control
Recommended Related Models
V18345-1010120001
V18345-1010121001
V18345-1010251001
V18345-1010461001
V18348-50114340110
Popular Related Models
V18345-1010261001
V18345-1010120001
V18345-1010121001
V18345-1010251001
V18345-2010121001
Applications
The ABB V18345-1010261001 Valve Positioner is an intelligent electro-pneumatic positioner designed for precise control of industrial control valves. It converts electrical control signals into accurate pneumatic actuator movement, ensuring stable flow regulation and process optimization.
Oil & gas pipeline flow control systems
Refinery pressure and flow regulation
Chemical reactor and dosing valve control
Power plant steam and boiler control loops
Water treatment and distribution systems
Industrial HVAC and energy management systems
General process automation valve control
Advantages
This smart positioner is built for high-accuracy valve control with strong diagnostic capability and industrial reliability.
High-precision valve positioning with adaptive control logic
Microprocessor-based intelligent control system
Automatic calibration and fast commissioning (auto-tuning function)
Strong resistance to vibration, humidity, and process variation
Supports HART communication for diagnostics and configuration
Flexible mounting for linear and rotary actuators
Low air consumption with efficient pneumatic design
Technical FAQs (10 Questions)
Q1: What is the main function of this device?
It regulates valve position by converting 4–20 mA control signals into pneumatic actuator movement.
Q2: What type of actuators is it compatible with?
It supports both linear and rotary actuators.
Q3: Does it support digital communication?
Yes, it supports HART protocol depending on configuration.
Q4: Can it be used in hazardous environments?
Yes, certain configurations are suitable for hazardous industrial zones with proper certification.
Q5: Is calibration required during installation?
Yes, but it supports automatic self-calibration and auto-tuning.
Q6: What happens during power failure?
It moves the valve to a predefined fail-safe position or holds position depending on configuration.
Q7: Is it suitable for outdoor installation?
Yes, with proper housing and sealing it can be used outdoors.
Q8: What mounting standards does it follow?
It supports NAMUR and VDI/VDE 3845 mounting standards.
Q9: What control signal does it use?
It typically uses a 4–20 mA analog input signal.
Q10: What industries commonly use it?
It is widely used in oil & gas, chemical, power generation, and water treatment industries.
