Brand:Schneider PLC Item No.:ATS22C48S6 Product Origin:France Product Dimensions:455 x 304 x 339.7 mm Product Weight:50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

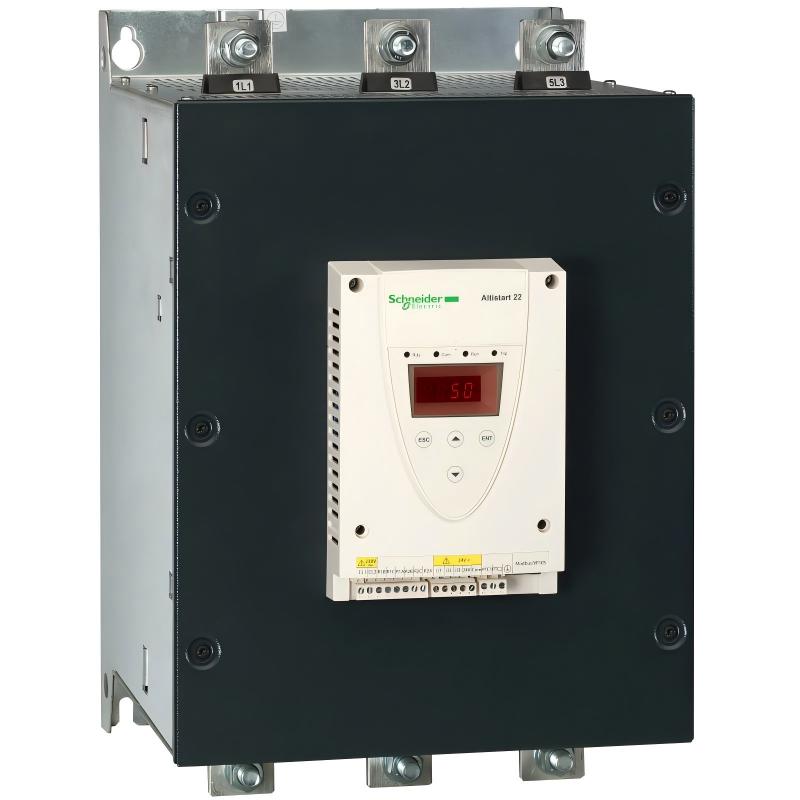

The ATS22C48S6 belongs to Schneider Electric’s Altistart 22 soft starter family, designed for controlled starting and stopping of high-power three-phase induction motors. It uses voltage ramp technology combined with current limitation to reduce inrush current and mechanical stress during motor startup.
This model integrates SCR-based power control with an internal bypass system, ensuring efficient thermal performance and stable long-term operation. It has been widely used in heavy industrial environments such as infrastructure systems, process plants, and large manufacturing facilities.
Although it remains a strong legacy solution, it has been officially discontinued and replaced by newer generation soft starters in Schneider Electric’s portfolio.
ATS22C32S6 – 320A model for large industrial loads
ATS22C25S6 – Mid-high power variant for process applications
ATS130 Series – Compact next-generation soft starter family
ATS480 Series – Modern replacement platform for new installations
Popular Related Models
ATS22C48S6 – Ultra-high power legacy soft starter (this model)
ATS22C41S6 – Widely used in pumping and compressor systems
ATS22C32S6 – Common in mining and conveyor applications
ATS480C48S6 – Modern replacement for upgraded industrial systems
Applications
The Schneider ATS22C48S6 Soft Starter Module is designed for very high-power industrial motor control applications where controlled acceleration, reduced electrical stress, and stable torque behavior are essential. It is widely used in heavy-duty process industries that require reliable starting of large inertia loads and continuous operation.
Typical applications include:
Large water treatment and distribution pumping systems
Industrial HVAC chillers, cooling towers, and ventilation plants
High-capacity compressor stations and process gas systems
Conveyor systems for bulk and continuous material handling
Mining, cement, steel, and heavy manufacturing equipment
Large three-phase induction motor drive systems in industrial plants
Its voltage ramp control reduces mechanical shock and inrush current, improving system stability and extending equipment lifespan in demanding environments.
Advantages
Ultra-high current capacity (480 A class) for heavy industrial motors
Smooth torque control reduces mechanical stress on couplings and gearboxes
Integrated bypass contactor improves thermal efficiency after starting
Stable soft start/soft stop improves process continuity and equipment protection
Robust industrial design for harsh environments and continuous-duty operation
Compatible with PLC and industrial automation systems
Built-in motor protection enhances operational safety and reliability
Reduces maintenance costs and unplanned downtime in high-load systems
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C48S6?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
The IcL starter rating is 480 A for line connection applications.
Q3: What is the supply voltage range?
It supports 230–600 V AC (with tolerance range up to 660 V depending on conditions).
Q4: What is the motor power range?
Typically supports 132–250 kW at 400–440 V, and up to 315 kW at 500 V systems.
Q5: Does it include an internal bypass?
Yes, it includes an integrated bypass contactor to reduce heat dissipation after starting.
Q6: Is it suitable for pump applications?
Yes, it is widely used in pumps to reduce water hammer and mechanical shock during startup.
Q7: Can it be used in HVAC systems?
Yes, it is commonly applied in HVAC chillers, fans, and ventilation systems.
Q8: Does it support PLC integration?
Yes, it integrates with standard industrial automation systems using relay and control inputs.
Q9: Does it support Modbus communication?
Yes, Modbus RTU communication is supported via RS485 interface.
Q10: Is this model still in production?
No, ATS22 series is discontinued, and newer Altivar Soft Starter platforms are recommended for new projects.
