Brand:Schneider PLC Item No.:ATS22C48S6U Product Origin:France Product Dimensions:455 x 304 x 339.7 mm Product Weight:50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

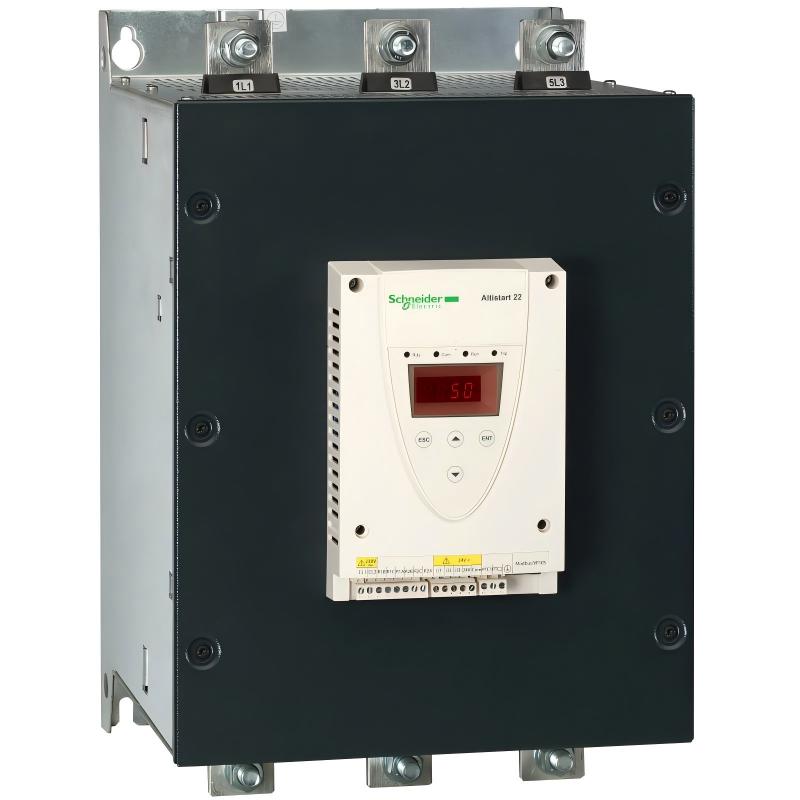

The ATS22C48S6U belongs to Schneider Electric’s Altistart 22 series, engineered for controlled starting and stopping of high-power three-phase induction motors. It uses voltage ramp technology combined with current limitation to reduce inrush current and mechanical stress during startup.
This model integrates SCR-based power control with an internal bypass system, ensuring efficient thermal management and stable long-term performance. It is widely used in heavy industrial environments such as infrastructure, process plants, and large manufacturing facilities where uptime is critical.
Although it remains a strong legacy solution, it has been phased out in favor of newer-generation Schneider soft starters for modern installations.
132–250 kW (line), up to ~400 kW (delta depending on system)
Motor Type
3-phase asynchronous motor
Frequency
50/60 Hz
Starting Method
Voltage ramp start / soft stop
Internal Bypass
Yes
Communication
Modbus RTU (RS485)
Protection Functions
Overload, phase loss, thermal protection
Mounting Type
Panel / cabinet installation
Dimensions (H × W × D)
455 × 304 × 339.7 mm
Weight
50 kg / 110.23 lb
Protection Class
IP00
Recommended Related Models
ATS22C41S6U – 410A high-power industrial variant
ATS22C32S6 – 320A model for heavy-duty motor applications
ATS22C25S6U – Mid-high power alternative for process systems
ATS130 Series – Compact next-generation soft starter family
ATS480 Series – Modern replacement platform for new installations
Popular Related Models
ATS22C48S6U – Ultra-high power legacy soft starter (this model)
ATS22C41S6U – Widely used in pumping and compressor systems
ATS22C32S6 – Common in mining and conveyor applications
ATS480C48S6 – Modern replacement for upgraded industrial systems
Applications
The Schneider ATS22C48S6U Soft Starter Module is designed for very high-power industrial motor control applications requiring controlled acceleration, reduced inrush current, and stable torque performance. It is widely used in heavy-duty process industries and large-scale automation systems where reliable motor starting under high inertia loads is essential.
Typical applications include:
Large water treatment and distribution pumping systems
Industrial HVAC chillers, cooling towers, and ventilation plants
High-capacity compressor stations and air handling systems
Conveyor systems for bulk and continuous material transport
Mining, cement, steel, and heavy manufacturing equipment
High-power three-phase induction motor drives
Its voltage ramp control helps reduce mechanical stress and electrical shock during startup, improving system stability and extending equipment lifespan.
Advantages
Ultra-high current capacity (480 A class) for heavy industrial motors
Smooth torque control reduces mechanical stress on couplings and gearboxes
Integrated bypass contactor improves thermal efficiency after starting
Stable soft start/soft stop improves process continuity and protection
Robust industrial design for harsh environments and continuous-duty operation
Compatible with PLC and industrial automation systems
Built-in motor protection enhances operational safety and reliability
Reduces maintenance costs and unplanned downtime in high-load systems
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C48S6U?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
The rated current is 480 A.
Q3: What is the supply voltage range?
It supports 208–600 V AC industrial power systems.
Q4: What is the motor power range?
Typically 132–250 kW (line connection), up to ~400 kW depending on configuration.
Q5: Does it include an internal bypass?
Yes, it includes an integrated bypass contactor for reduced heat dissipation.
Q6: Is it suitable for pump applications?
Yes, it is widely used in pumping systems to reduce water hammer and mechanical shock.
Q7: Can it be used in HVAC systems?
Yes, it is commonly used in HVAC chillers, fans, and ventilation systems.
Q8: Does it support PLC integration?
Yes, it integrates with standard industrial automation systems.
Q9: Does it support Modbus communication?
Yes, Modbus RTU over RS485 is supported.
Q10: Is this model still in production?
No, the ATS22 series is discontinued and replaced by newer Schneider soft starter platforms.
