Brand:Schneider PLC Item No.:ATS22D17S6 Product Origin:France Product Dimensions:265 x 130 x 169 mm Product Weight:7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

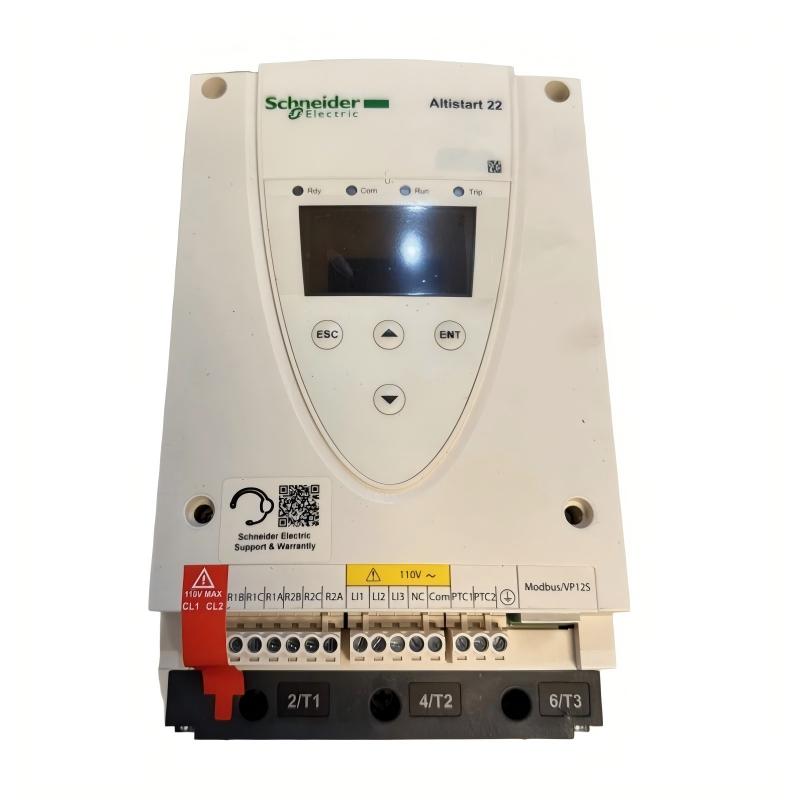

The Schneider ATS22D17S6 is part of the Altistart 22 series, designed to deliver controlled motor starting performance in industrial automation systems. By gradually ramping voltage to the motor, it minimizes electrical stress on the power network and mechanical stress on driven equipment.
Its compact footprint and integrated bypass design make it a practical choice for machine builders and industrial users who require reliable motor starting without the complexity of full variable speed control. It is widely adopted in pump, fan, and conveyor applications where smooth start-up behavior improves system longevity and operational stability.
Technical Specifications
Parameter
Specification
Product Model
ATS22D17S6
Brand
Schneider Electric
Series
Altistart 22
Device Type
Soft Starter
Rated Current
17 A
Rated Power
4–9 kW (typical range depending on voltage)
Supply Voltage
230–600 V AC three-phase
Control Voltage
230 V AC
Control Method
Voltage ramp start/stop
Communication
Optional RS-485 (depending on configuration)
Protection Class
IP20 (panel-mounted)
Cooling Method
Forced convection
Dimensions (H × W × D)
265 × 130 × 169 mm
Weight
7 kg (15.43 lb)
Installation Type
Panel-mounted vertical installation
Recommended Related Models
ATS22D11S6
ATS22D17Q6
ATS22C11Q6
ATS22D32S6
ATS01N series soft starters
Popular Related Models
ATS22D17S6
ATS22D11S6
ATS22D32S6
ATS22C17Q6
ATS22D17Q6
Applications
The Schneider ATS22D17S6 soft starter is designed to provide smooth starting and stopping control for three-phase asynchronous motors, reducing mechanical stress and electrical peak current during motor startup. It is widely used in industrial systems requiring controlled acceleration and deceleration.
Pump systems (centrifugal and piston pumps)
HVAC fan and blower control systems
Conveyor and material handling equipment
Screw compressors and air compression systems
Industrial water treatment systems
Light-to-medium industrial automation machinery
General-purpose motor soft starting applications
Advantages
This soft starter improves system reliability by reducing inrush current and mechanical shock during motor startup.
Reduced starting current for motor protection
Smooth acceleration and deceleration control
Integrated bypass contactor for reduced heat loss
Compact design suitable for panel installation
Built-in motor and starter protection functions
Easy configuration via Schneider SoMove software
Improved mechanical lifespan of driven equipment
Technical FAQs (10 Questions)
Q1: What is the main function of this soft starter?
It controls motor voltage during startup to reduce inrush current and mechanical stress.
Q2: What types of motors are supported?
It is designed for three-phase asynchronous (induction) motors.
Q3: Does it include motor protection?
Yes, it includes thermal and overload protection functions.
Q4: Can it be used for pumps and fans?
Yes, it is commonly used in centrifugal pumps and HVAC fan systems.
Q5: Does it support bypass operation?
Yes, it includes an integrated bypass contactor to reduce heat after startup.
Q6: What is the control supply voltage?
It typically uses 230 V AC control supply (depending on configuration).
Q7: Can it be programmed?
Yes, it supports configuration via Schneider SoMove software and parameter settings.
Q8: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with repeated starts.
Q9: What happens during overload conditions?
It triggers protective shutdown based on thermal and current monitoring.
Q10: Can it replace a VFD?
No, it only controls starting/stopping and does not provide continuous speed control.
