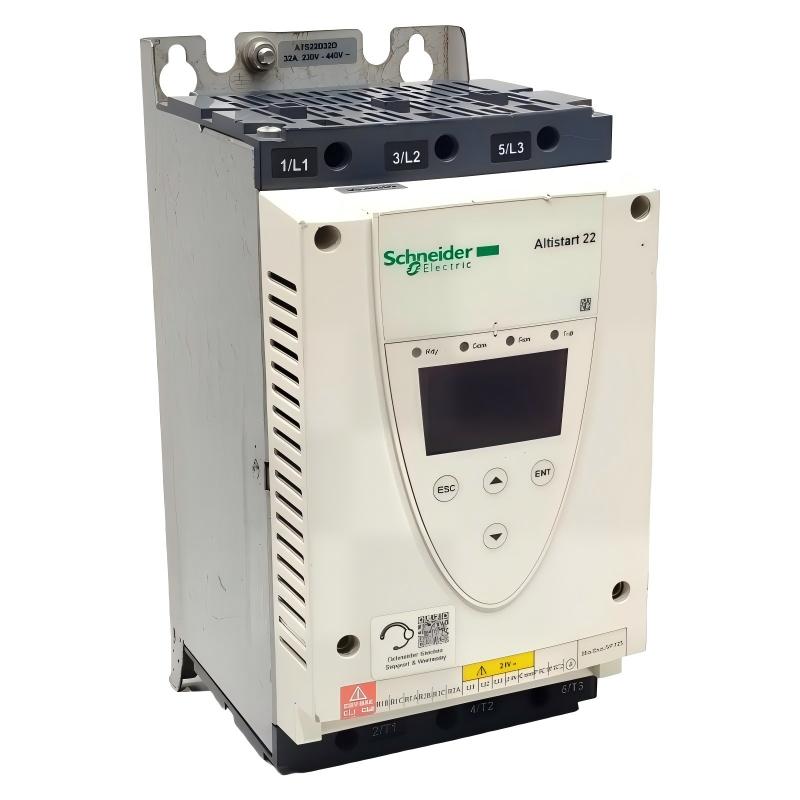

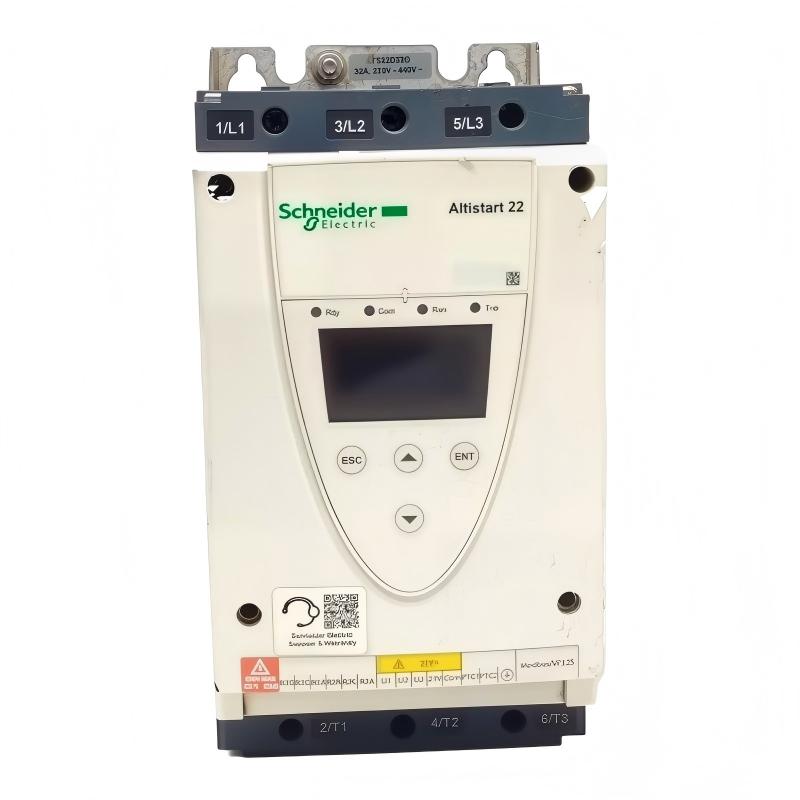

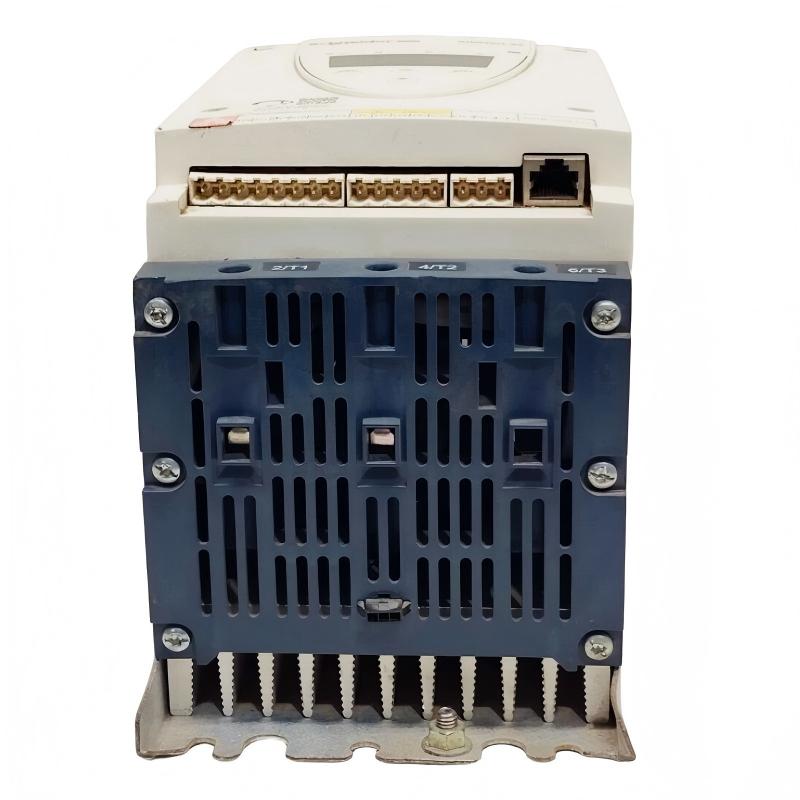

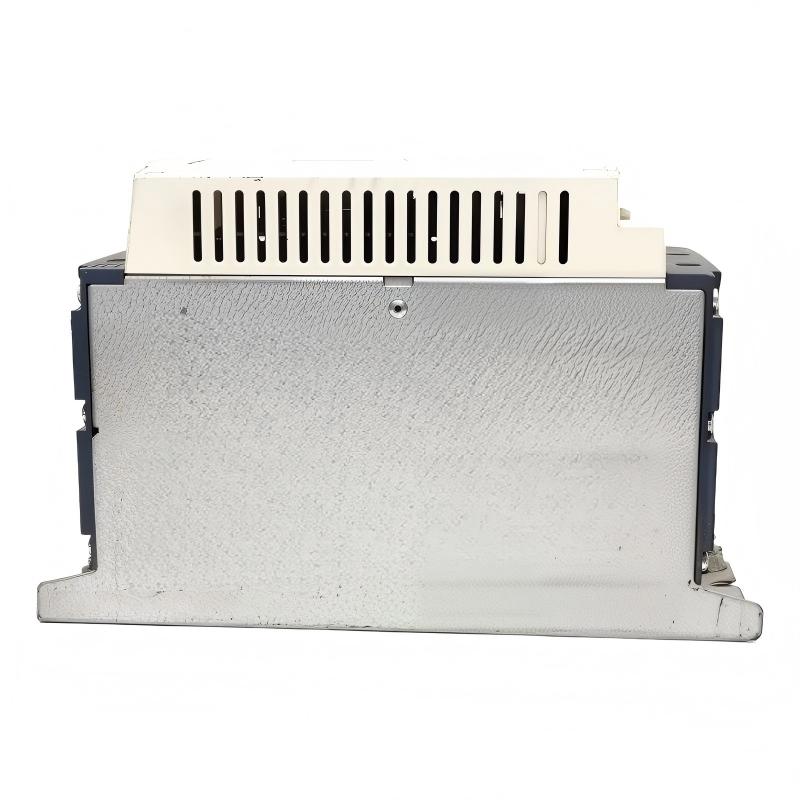

Schneider ATS22D32Q Soft Starter

Applications

The Schneider ATS22D32Q Soft Starter is designed for controlled motor starting in industrial environments where mechanical stress reduction and electrical stability are critical. It is widely deployed across medium-duty automation systems that require reliable torque management and smooth acceleration.

Typical applications include:

• Industrial pump control systems (water supply, irrigation, treatment plants)
• HVAC ventilation and air handling units
• Air compressor start/stop control systems
• Conveyor belt and material handling automation
• Process cooling and fluid circulation systems
• Light industrial machinery requiring soft torque ramping

Its controlled voltage ramping ensures stable motor behavior, especially in fluid and inertia-heavy loads.

Advantages

The ATS22D32Q delivers a strong balance between performance, protection, and installation efficiency.

Key advantages include:

• Smooth motor acceleration reduces mechanical shock
• Lower inrush current improves electrical network stability
• Integrated bypass reduces heat generation during steady-state operation
• Compact design supports panel space optimization
• Enhanced motor lifespan through controlled torque curves
• Reduced maintenance costs in long-cycle industrial operations
• Stable performance under varying load conditions
• Easy integration into existing automation architectures

Technical FAQs

1. What type of motor is compatible with ATS22D32Q?
It is designed for three-phase asynchronous induction motors.

2. Can it be used for pump applications?
Yes, it is ideal for centrifugal and positive displacement pump systems.

3. Does it require an external bypass contactor?
No, it includes an integrated bypass function.

4. Is it suitable for HVAC systems?
Yes, it is widely used in fans, blowers, and air handling units.

5. What protections are built into the device?
It includes overload, phase loss, and thermal protection functions.

6. Can it be integrated into PLC systems?
Yes, it supports industrial automation integration via standard interfaces.

7. Does it support parameter adjustment after installation?
Yes, all key settings can be configured during commissioning.

8. Is it suitable for continuous operation?
Yes, after bypass engagement, it supports continuous motor running.

9. Does it help reduce mechanical wear?
Yes, soft start control significantly reduces torque shock.

10. Is it suitable for retrofit projects?
Yes, it is commonly used for upgrading older direct-on-line systems.
