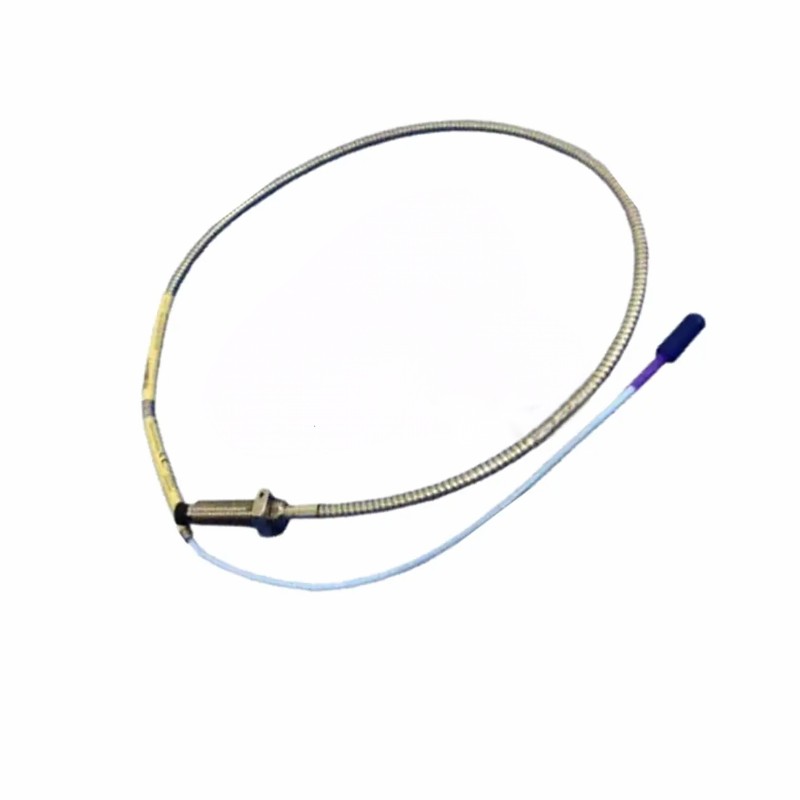

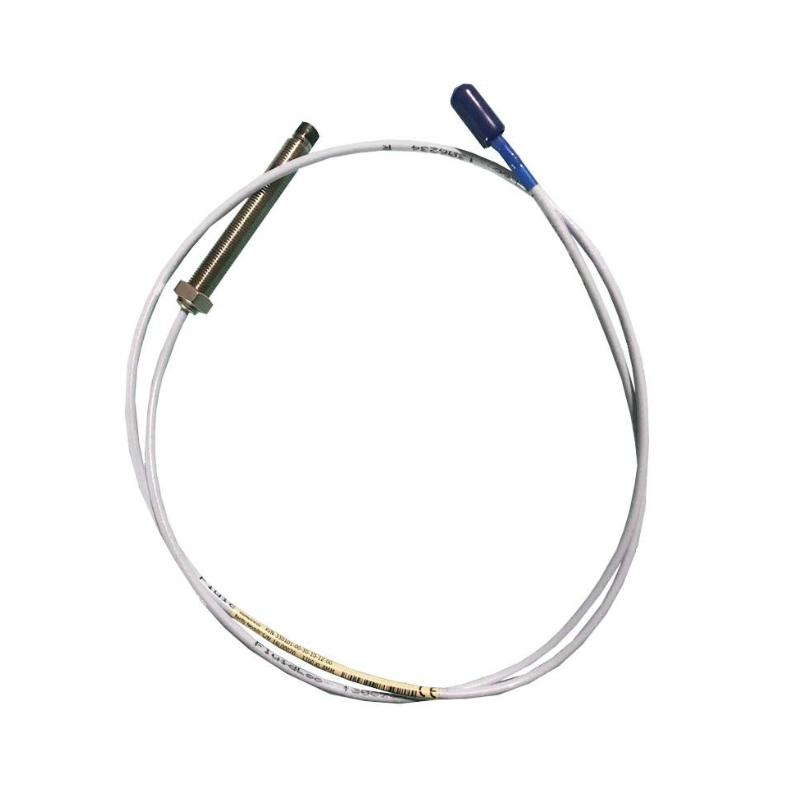

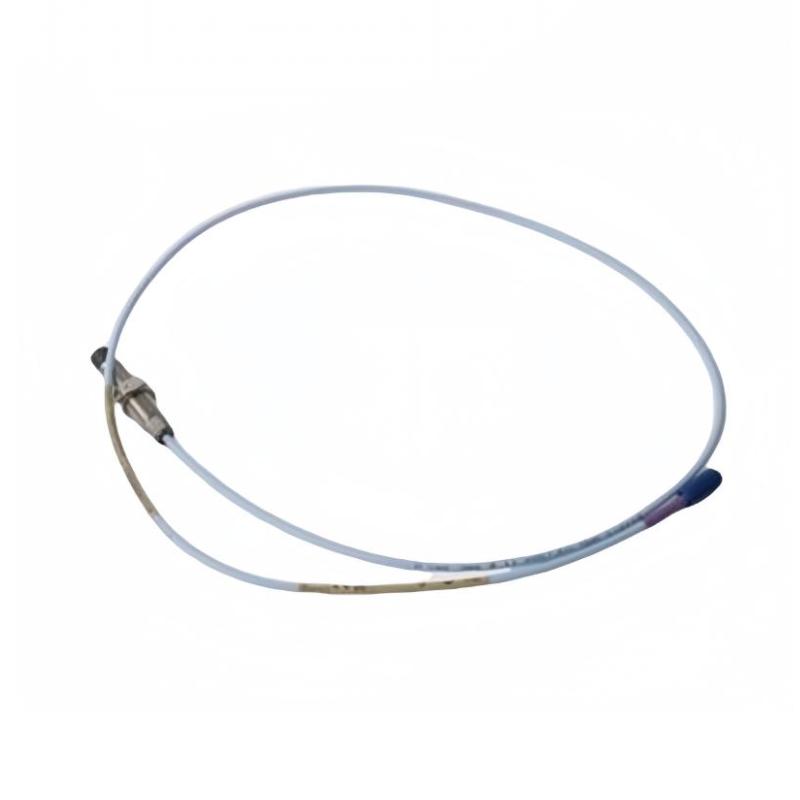

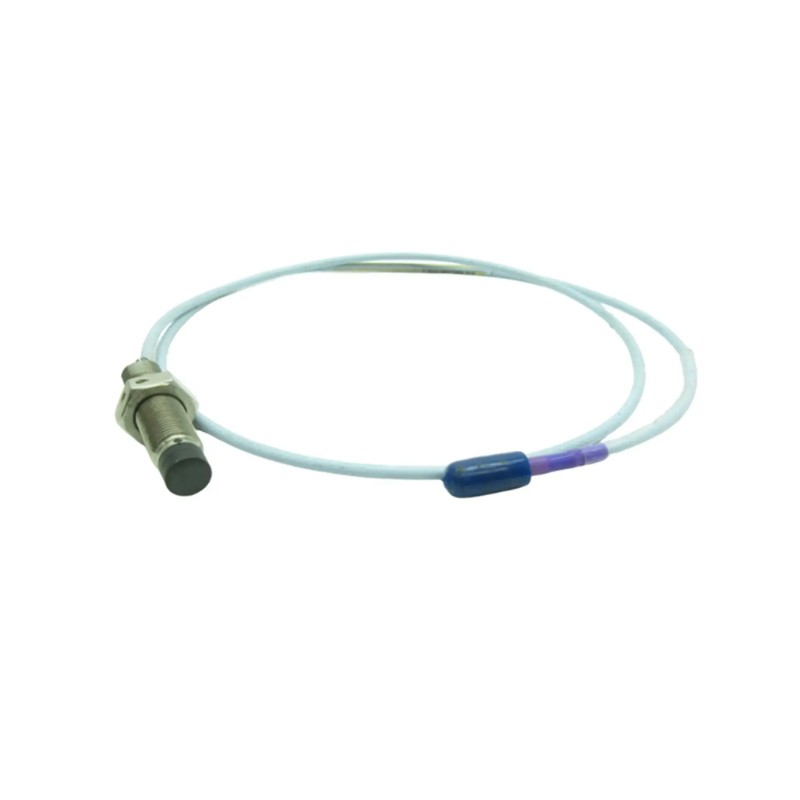

The Bently Nevada 330703-005-040-10-02-00 is an 11 mm proximity probe used in the 3300 XL transducer system for non-contact measurement of shaft vibration and displacement in rotating machinery.
It is designed for continuous monitoring applications in critical industrial equipment such as turbines, compressors, pumps, and generators. When used together with a Proximitor sensor and extension cable, it forms a complete eddy current measurement system for machinery protection and condition monitoring.
The 11 mm probe design provides a wider measurement range, making it suitable for applications with higher shaft movement or larger dynamic operating conditions.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330703-005-040-10-02-00 |
| Product Type | Proximity Probe (11 mm) |
| Measurement Type | Non-contact vibration / displacement |
| Operating Principle | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector Type | ClickLoc industrial connector system |
| Cable Type | Integrated probe + extension system |
| Material | Stainless steel probe body |
| Application | Rotating machinery condition monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 50–300 mm × 10–12 mm × 10–12 mm |
| Weight | Approx. 0.2–0.35 kg |
System Configuration
This probe is part of a complete 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable
- 3300 XL Proximitor sensor
The system converts mechanical shaft motion into a stable electrical signal used for vibration monitoring, diagnostics, and protection systems.
