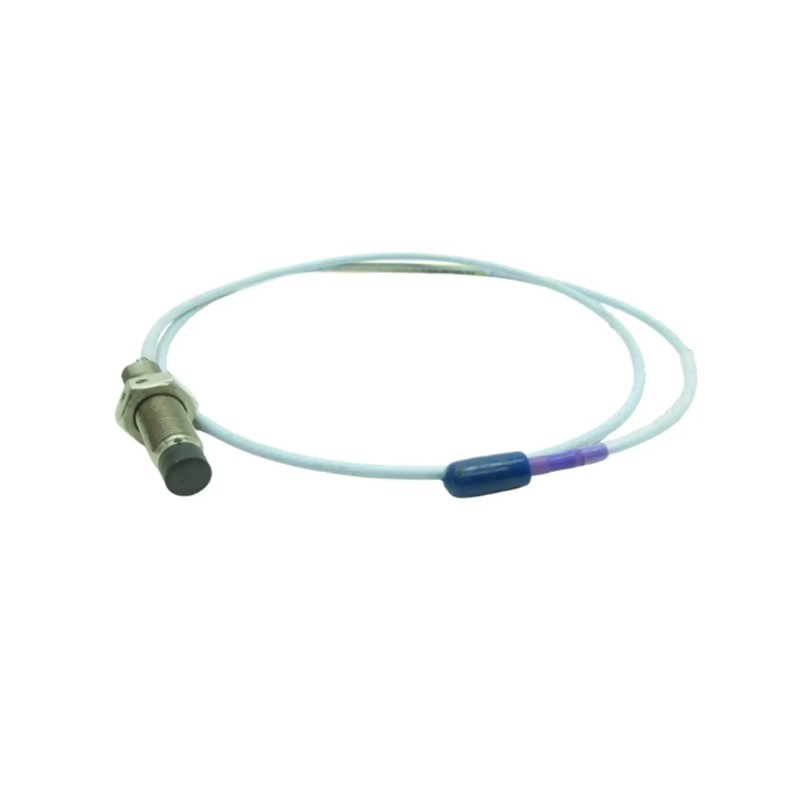

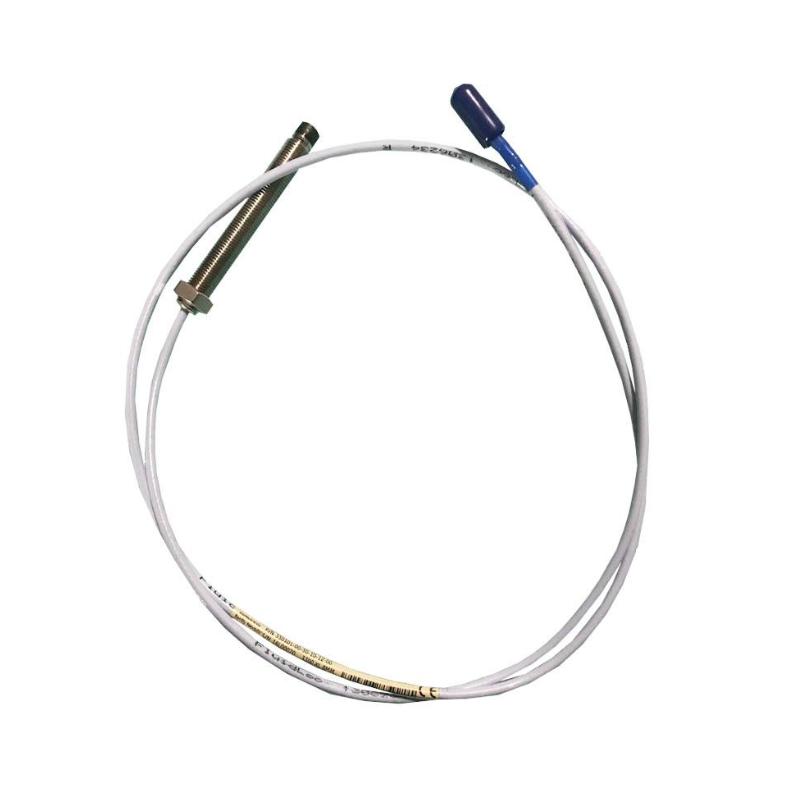

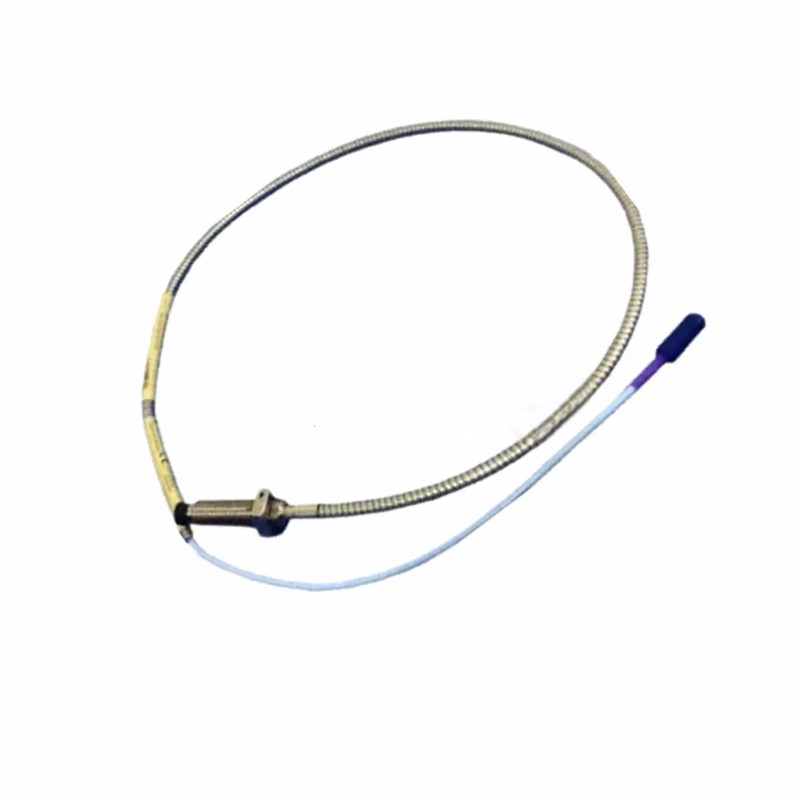

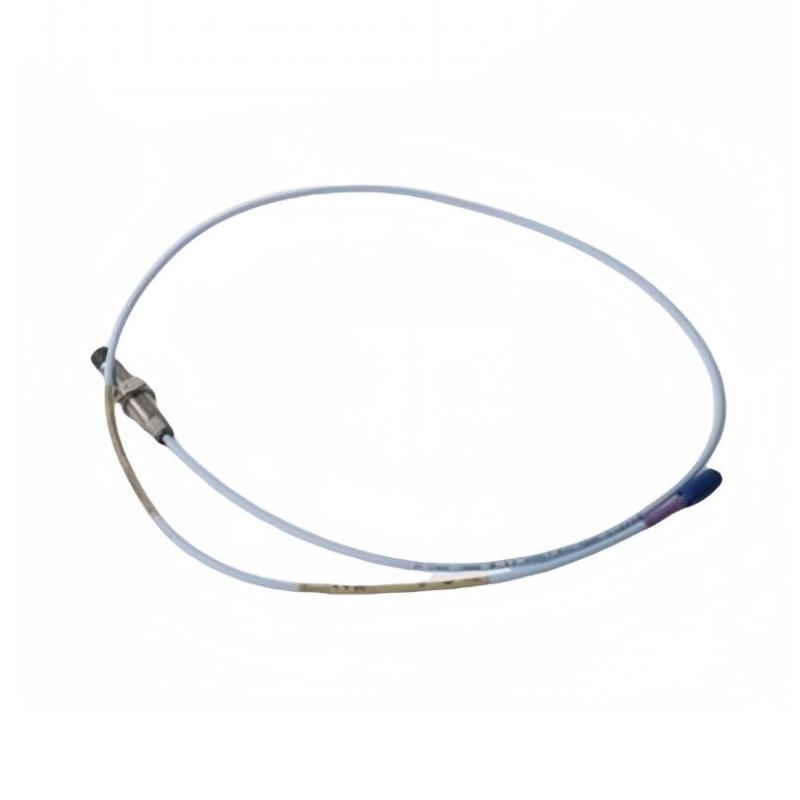

The Bently Nevada 330703-006-100-10-01-00 is an 11 mm proximity probe from the 3300 XL series, designed for high-accuracy non-contact measurement of shaft vibration and displacement in rotating machinery.
It is used as part of a complete proximity transducer system together with a matching extension cable and Proximitor sensor. The probe provides stable eddy current-based measurement signals, enabling continuous condition monitoring and machinery protection in critical industrial applications.
This configuration is typically selected for equipment requiring longer probe body geometry and stable signal performance under high vibration and harsh environmental conditions.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330703-006-100-10-01-00 |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact displacement / vibration |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector Type | Industrial ClickLoc system |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 60–350 mm × 10–12 mm × 10–12 mm (configuration dependent) |
| Weight | Approx. 0.25–0.45 kg |
System Configuration
The probe is part of the standard 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable
- 3300 XL Proximitor sensor
This system converts mechanical shaft movement into a proportional electrical signal used for vibration analysis, diagnostics, and protection systems.
Recommended Related Models
| Model | Description |
|---|---|
| 330703-000-040-10-01-00 | Short case configuration probe |
| 330703-000-060-10-01-00 | Standard case configuration |
| 330703-000-100-10-01-00 | Extended case version |
| 3300 XL Extension Cable | Signal transmission component |
| 3300 XL Proximitor Sensor | Signal conditioning module |
| 3300 XL 8 mm Probe Series | Standard range probes |
