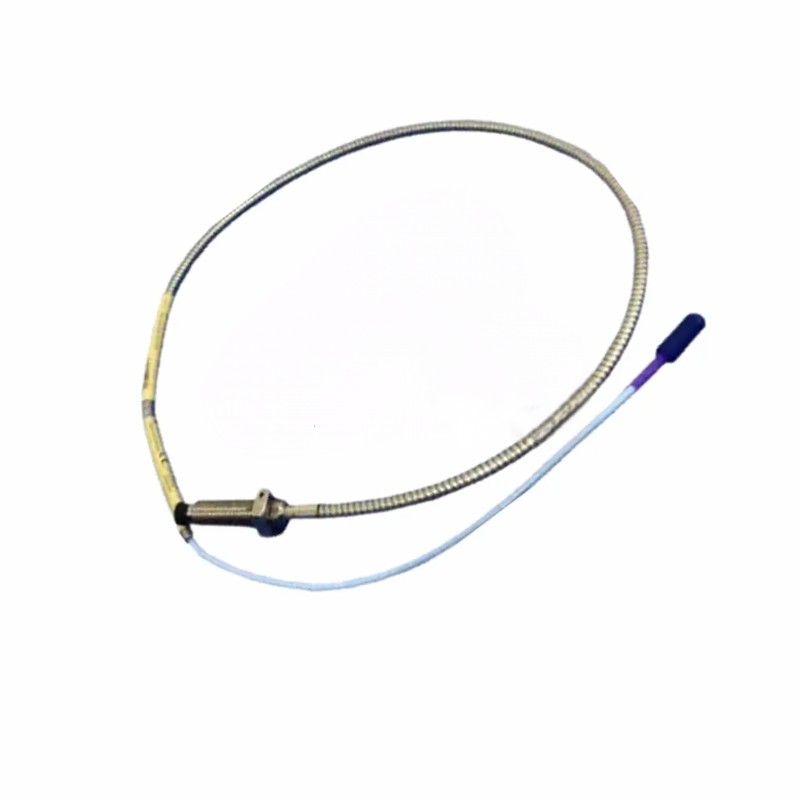

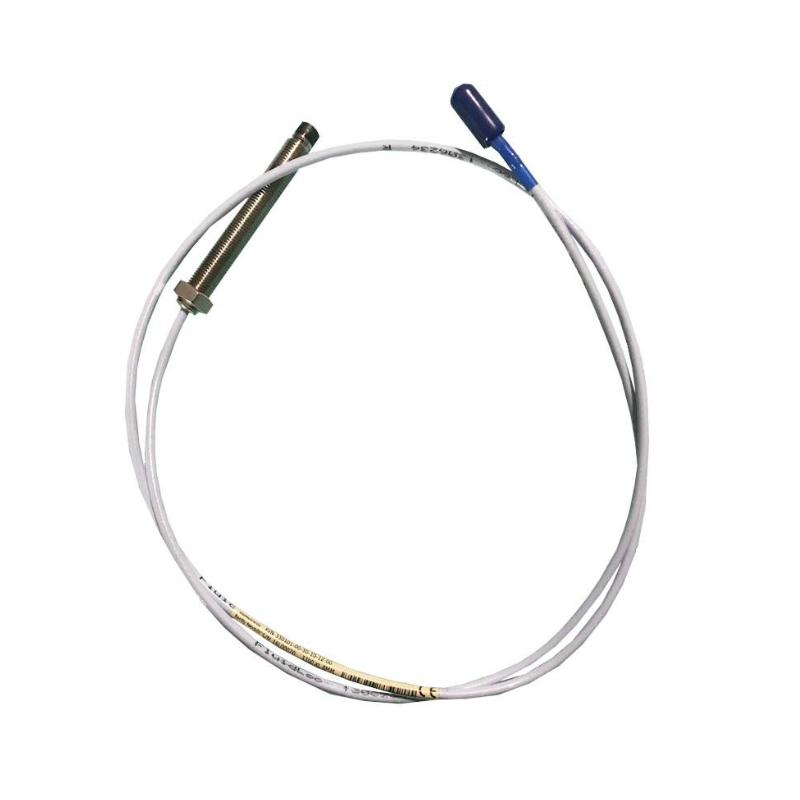

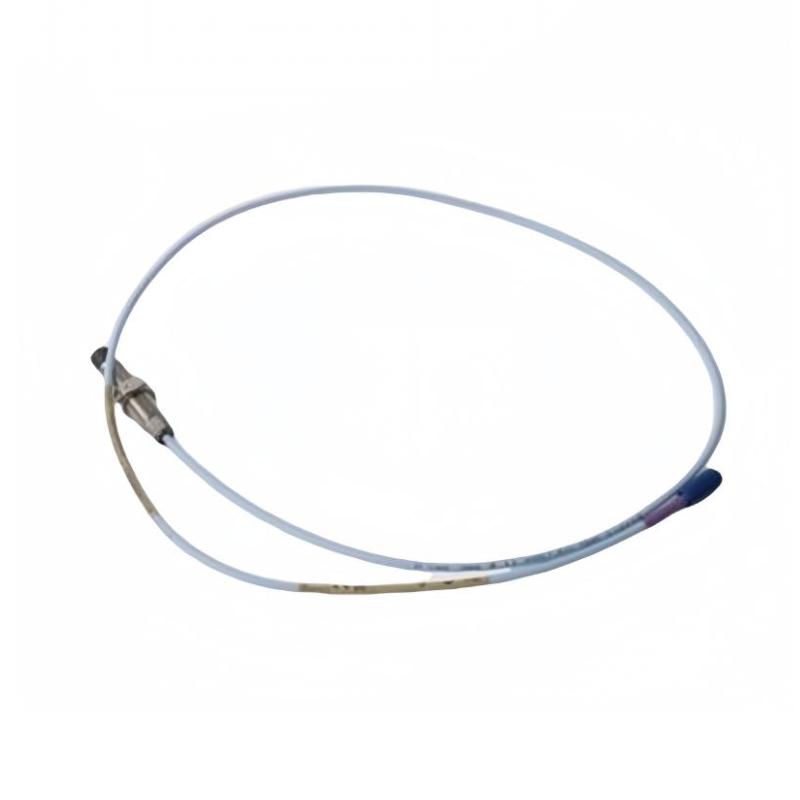

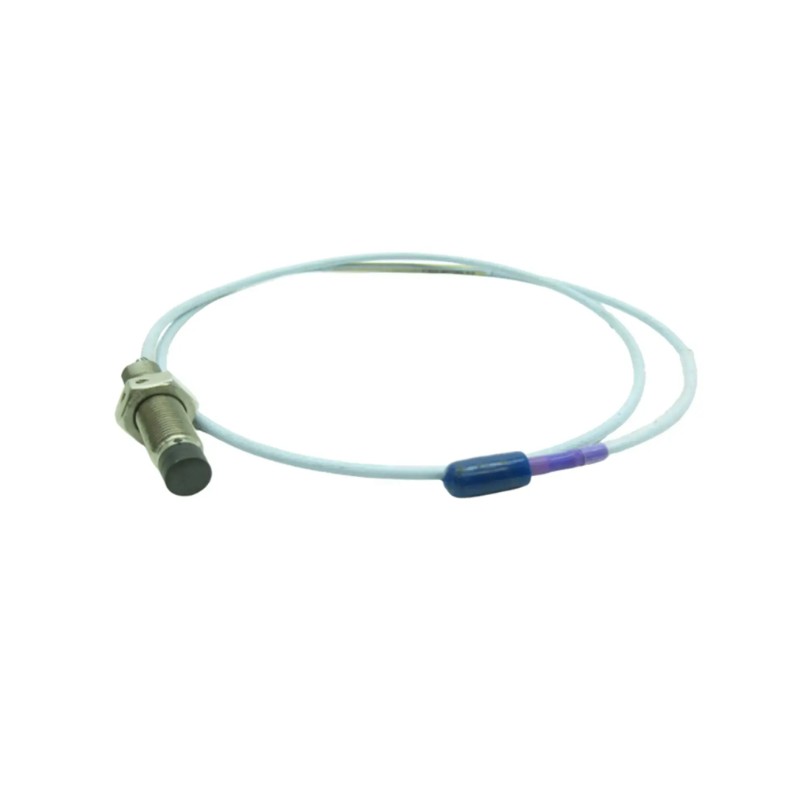

The Bently Nevada 330703-010-070-10-01-CN is an 11 mm proximity probe from the 3300 XL series designed for non-contact vibration and shaft displacement measurement in rotating machinery.
This model is part of a complete eddy current proximity transducer system used in machinery condition monitoring and protection applications. It is typically installed in turbines, compressors, pumps, and other critical rotating equipment where continuous measurement of shaft dynamics is required.
The “-CN” suffix indicates a region/approval configuration variant, commonly used for specific compliance or ordering customization within the 3300 XL probe family.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330703-010-070-10-01-CN |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact displacement / vibration |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector System | ClickLoc industrial connector |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 60–350 mm × 10–12 mm × 10–12 mm (configuration dependent) |
| Weight | Approx. 0.25–0.45 kg |
System Configuration
This probe is used as part of a complete 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable
- 3300 XL Proximitor sensor
Together, these components convert shaft motion into a proportional electrical signal for vibration monitoring, diagnostics, and protection systems.
Recommended Related Models
| Model | Description |
|---|---|
| 330703-000-040-10-01-00 | Short case configuration |
| 330703-000-060-10-01-00 | Standard case configuration |
| 330703-000-100-10-01-00 | Extended configuration |
| 330703-010-060-10-01-00 | Same family alternative configuration |
| 3300 XL Extension Cable | Signal transmission component |
| 3300 XL Proximitor Sensor | Signal conditioning module |
