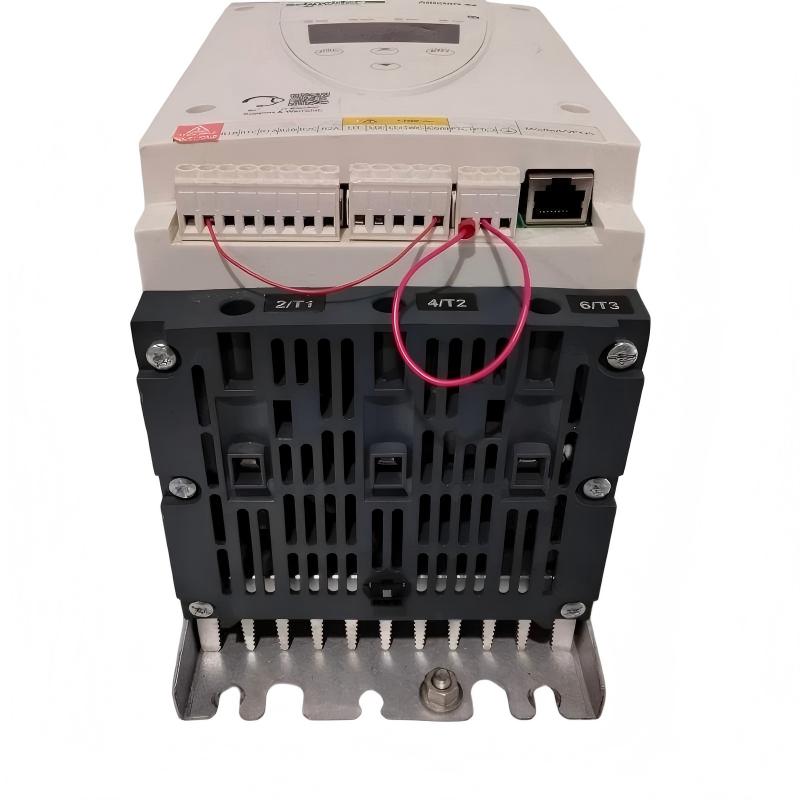

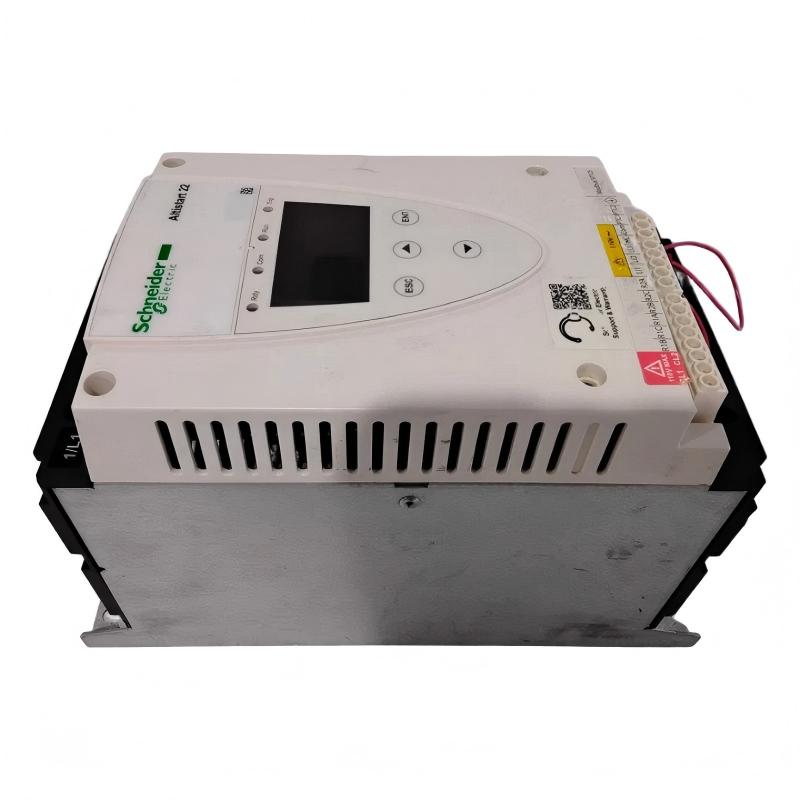

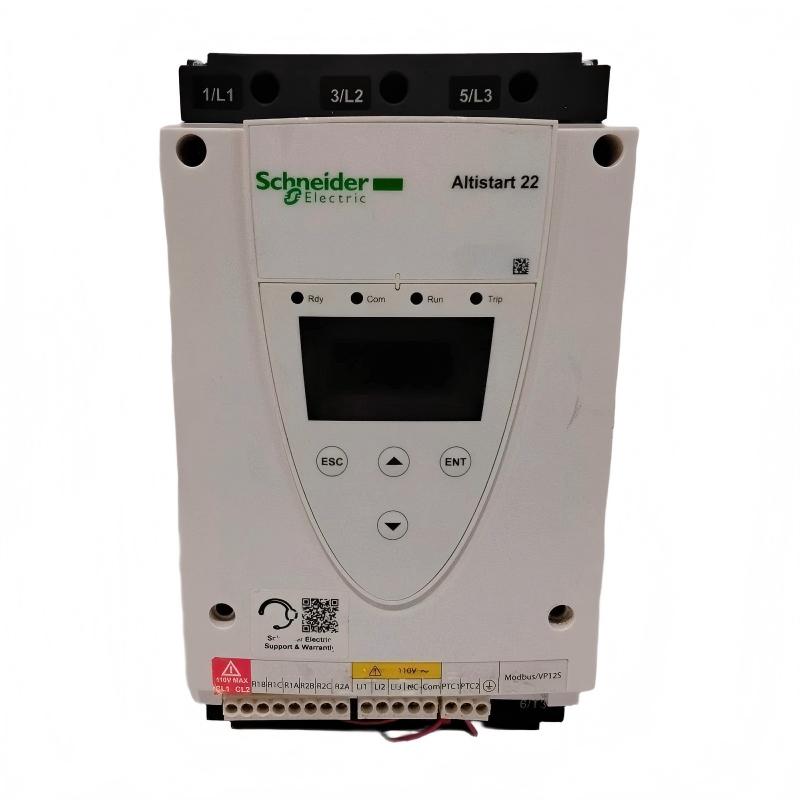

Introduction The ATS22D32S6 is a soft starter used for controlled starting of industrial motors.
It increases motor voltage gradually during startup to reduce mechanical and electrical stress.

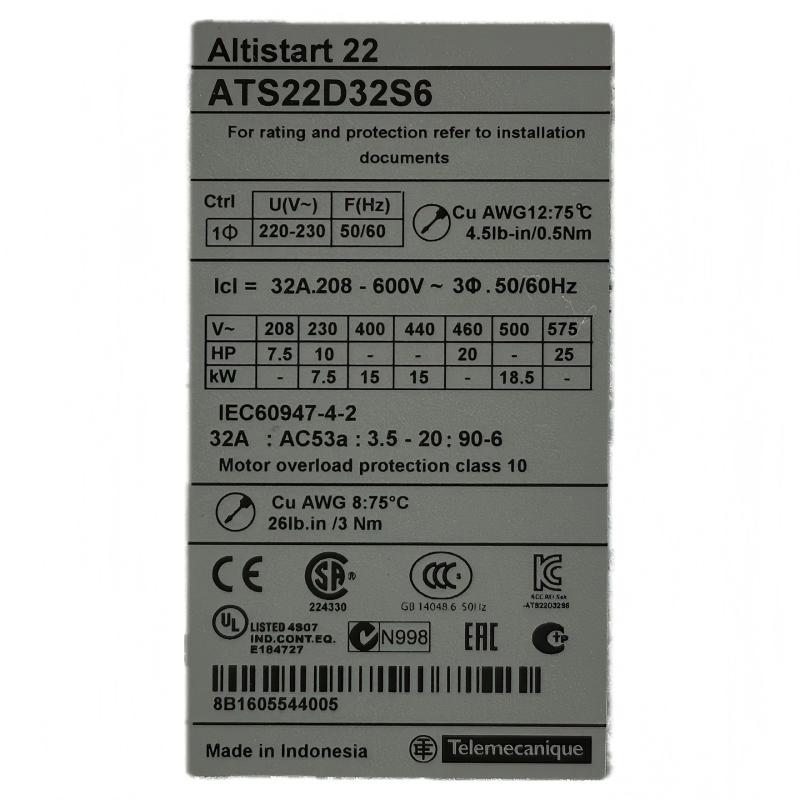

Technical Specifications Parameter Value Product type Soft starter Series Altistart 22 Model ATS22D32S6 Rated current 32 A Motor power (400 V) 15 kW Motor power (500 V) 18.5 kW Supply voltage 230–500 V AC Frequency 50/60 Hz Dimensions (H × W × D) 265 × 130 × 169 mm Weight 7 kg (15.43 lb)
Recommended Related Models
ATS22D17S6
ATS22D47S6
ATS22D75S6
Popular Related Models
ATS22D17S6
ATS22D32S6
ATS22D47S6
ATS22D75S6
Applications Schneider ATS22D32S6 is used for starting three-phase asynchronous motors in industrial installations.
Typical applications:
Pumps
Fans
Conveyors
Compressors
Standard industrial motor drives
It is used where controlled motor starting is required.
Advantages The ATS22D32S6 provides controlled voltage ramp starting for three-phase motors.
It reduces starting current compared to direct-on-line starting.
After motor acceleration, the internal bypass function is used for normal operation.
Technical FAQs (10 Technical Questions) Q1: What motor type is supported?
Q2: What is the function of this device?
Q3: Does it support soft stopping?
Q4: Does it include bypass?
Q5: What is its main application?
Q6: Can it be used on pumps?
Q7: Does it reduce inrush current?
Q8: Is parameter adjustment available?
Q9: Is it suitable for industrial use?
Q10: How is it installed?
