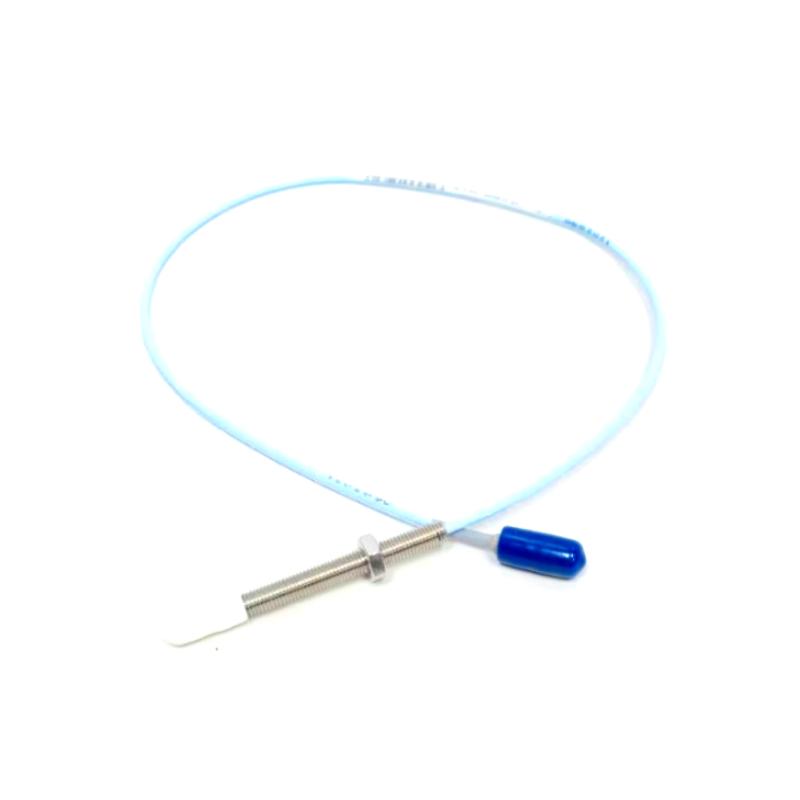

The Bently Nevada 330704-000-050-10-01-05 is an 11 mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft vibration and displacement in rotating machinery.
It is used as part of the Bently Nevada eddy current proximity transducer system together with a Proximitor sensor and extension cable. This system is widely applied in turbines, compressors, pumps, and generators for continuous condition monitoring and machinery protection.
The 050 configuration typically indicates a 50 mm case length, while the 10-01-05 suffix represents a standard 1.0 m system length with ClickLoc connector and multiple approval configuration for broader industrial compliance.
The 3300 XL 11 mm system provides a typical linear output sensitivity of 3.94 V/mm (100 mV/mil) and is designed for applications requiring a longer linear range than 8 mm probes.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330704-000-050-10-01-05 |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact vibration / displacement |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector System | ClickLoc miniature coaxial connector |
| Case Length | 50 mm |
| System Length | 1.0 m (standard configuration) |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 50 mm × 10–12 mm × 10–12 mm |
| Weight | Approx. 0.2–0.3 kg |
Note: The probe is part of a modular transducer system, so physical dimensions vary slightly depending on installation configuration and cable routing.
System Configuration
This probe is part of the standard 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable
- 3300 XL Proximitor sensor
The system converts shaft movement into a proportional electrical signal used for vibration monitoring, diagnostics, and protection functions.
