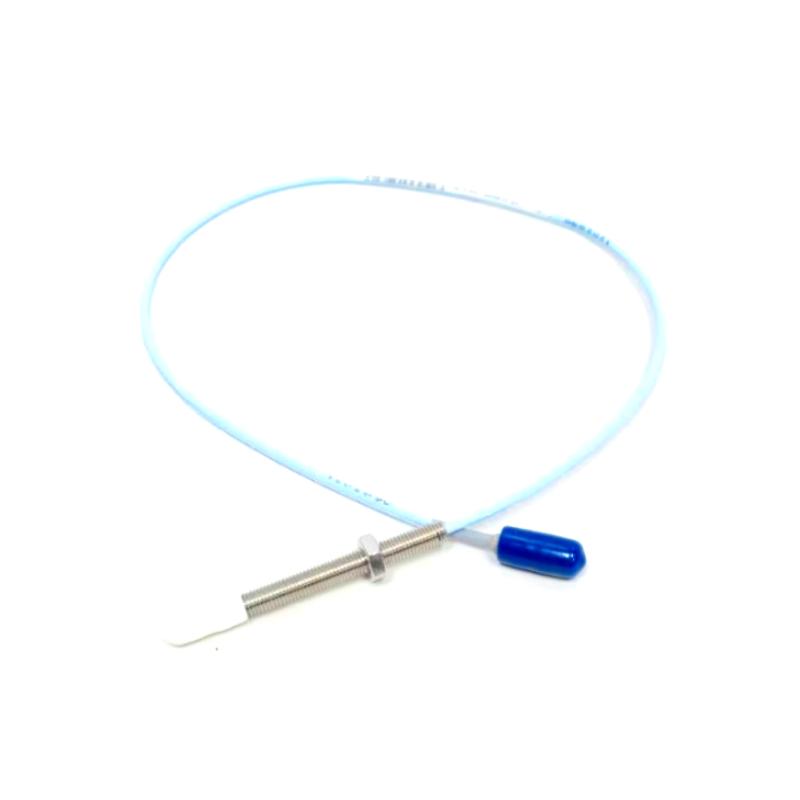

The Bently Nevada 330704-000-050-90-02-00 is an 11 mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft vibration and displacement in rotating machinery.
It is part of the Bently Nevada eddy current proximity transducer system and is used together with a Proximitor sensor and extension cable. The system provides continuous monitoring of rotor dynamics in turbines, compressors, pumps, and generators for condition monitoring and machinery protection.
The “-050 / -90 / -02-00” configuration typically represents a 50 mm case length, a 9.0 m system cable length, ClickLoc connector type, and standard approval option within the 3300 XL ordering structure.
The 11 mm probe family is designed for a typical linear measurement range of around 4 mm (160 mil), enabling accurate vibration and position monitoring in fluid-film bearing machines.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330704-000-050-90-02-00 |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact vibration / displacement |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector System | ClickLoc miniature coaxial connector |
| Case Length | 50 mm |
| System Cable Length | 9.0 m |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 50 mm × 10–12 mm × 10–12 mm |
| Weight | Approx. 0.2–0.3 kg |
System Configuration
This probe is part of a complete 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable (9.0 m)
- 3300 XL Proximitor sensor
The system converts shaft motion into a proportional electrical signal used for vibration monitoring, diagnostics, and machinery protection.
Recommended Related Models
| Model | Description |
|---|---|
| 330704-000-030-90-02-00 | Shorter case variant (same cable class) |
| 330704-000-050-10-02-00 | 1.0 m system cable variant |
| 330704-000-040-10-02-05 | Compact configuration model |
| 330703 series | Alternative 11 mm probe family |
| 3300 XL Extension Cable | Signal transmission component |
| 3300 XL Proximitor Sensor | Signal conditioning module |
