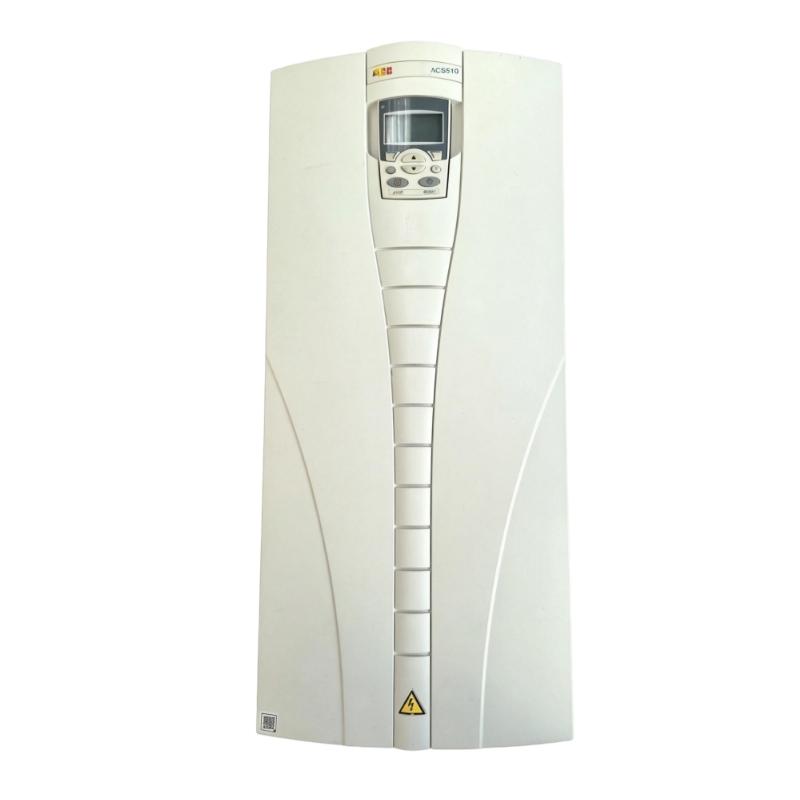

ABB ACS510-01-290A-4 3ABD00027039-D Variable Frequency Drive (VFD)
ABB ACS510-01-290A-4 3ABD00027039-D Variable Frequency Drive (VFD)
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-290A-4 Product Origin:Sweden (SE) Product Dimensions:955 × 350 × 420 mm Product Weight:76 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-290A-4 (3ABD00027039-D) Variable Frequency Drive is a high-performance industrial drive solution designed for controlling large AC motors in demanding applications. It belongs to ABB’s ACS510 standard drive range, which focuses on reliable operation, energy optimization, and simplified motor control.
This model features a three-phase 380–480 V input design, R6 frame construction, and a 290 A output rating, providing strong performance for high-power industrial equipment. Its practical design makes it suitable for engineers seeking a dependable drive solution for pumps, fans, conveyors, and other variable-speed machinery.
With ABB’s established industrial expertise, the ACS510-01-290A-4 delivers a reliable combination of performance, flexibility, and operational efficiency for modern automation environments.
Technical Specifications
Specification
Details
Product Model
ACS510-01-290A-4
Part Number
3ABD00027039-D
Product Type
Variable Frequency Drive (VFD)
Manufacturer
ABB
Product Series
ACS510
Rated Output Power
160 kW
Rated Output Current
290 A
Input Voltage
380–480 VAC
Input Phase
Three Phase
Frequency Range
47.5–63 Hz
Frame Size
R6
Protection Rating
IP21
Mounting Type
Wall Mounted
Communication Capability
Industrial Communication Support
Application Type
Industrial Motor Control
Dimensions
955 × 350 × 420 mm
Weight
76 kg (167.55 lb)
Recommended Related Models
ABB ACS510-01-246A-4 3AUA0000080507 Variable Frequency Drive
ABB ACS510-01-195A-4 Variable Frequency Drive
ABB ACS510-01-180A-4 Variable Frequency Drive
ABB ACS510-01-157A-4 Variable Frequency Drive
Popular Related Models
ABB ACS510-01-125A-4 Variable Frequency Drive
ABB ACS510-01-088A-4 Variable Frequency Drive
ABB ACS510-01-072A-4 Variable Frequency Drive
ABB ACS510-01-060A-4 Variable Frequency Drive
Advanced Application Fields
The ABB ACS510-01-290A-4 Variable Frequency Drive is developed for high-power industrial motor control applications requiring stable operation, efficient energy management, and dependable performance. As a member of ABB’s ACS510 standard drive family, this VFD is designed to handle demanding variable-speed applications while providing smooth motor control and operational flexibility.
With a 160 kW power rating and 290 A output current capability, this model is widely suitable for large motor-driven equipment where precise speed adjustment and reliable process control are required.
Typical application areas include:
Industrial pumping systems
HVAC and ventilation equipment
Water and wastewater treatment facilities
Large fans and blowers
Conveyor systems
Manufacturing process machinery
General industrial automation equipment
Core Strengths & Engineering Benefits
High-Capacity Motor Control
The ABB ACS510-01-290A-4 provides powerful motor regulation for large-scale three-phase AC motor applications. Its high output capability makes it suitable for systems requiring consistent torque performance and stable speed control.
Energy-Efficient Operation
By adjusting motor speed according to actual process requirements, this VFD helps optimize energy consumption in variable torque applications such as pumps and fans, improving overall system efficiency.
Reliable Industrial Performance
Built for industrial environments, the ACS510 series combines robust hardware design with proven ABB drive technology to support long-term operational reliability.
Flexible Automation Integration
The drive supports convenient integration into industrial control systems, allowing engineers to create efficient and adaptable motor control solutions.
Simplified Setup and Maintenance
The ACS510 platform provides practical configuration features that help reduce commissioning time and make routine maintenance easier for system operators.
Technical FAQs
1. What is the ABB ACS510-01-290A-4 mainly used for?
This VFD is mainly used for controlling large three-phase AC motors in industrial applications such as pumps, fans, conveyors, and process equipment.
2. What motor power can the ACS510-01-290A-4 support?
The model is designed for applications with a normal-use output power rating of 160 kW.
3. What input voltage does this drive support?
The ACS510-01-290A-4 is designed for three-phase 380–480 V AC power systems.
4. What type of motor control does this VFD provide?
The drive provides adjustable frequency motor control for regulating motor speed and improving process performance.
5. Can this drive be integrated into automation systems?
Yes. The ACS510 series supports industrial communication options for connection with automation and monitoring systems.
6. Is this model suitable for pump and fan applications?
Yes. The ACS510 family is widely applied in variable torque systems, especially pump and fan applications.
7. What protection features are available?
The drive includes built-in monitoring and protection functions designed to help protect the motor and drive system during operation.
8. What installation method is used for this VFD?
The ACS510-01-290A-4 uses a wall-mounted installation design suitable for industrial control environments.
9. Can operating parameters be customized?
Yes. Users can configure multiple operating parameters according to motor characteristics and application requirements.
10. Why choose the ACS510 series for industrial applications?
The ACS510 series offers a balance of reliability, energy efficiency, and practical configuration, making it a popular choice for general industrial motor control.
