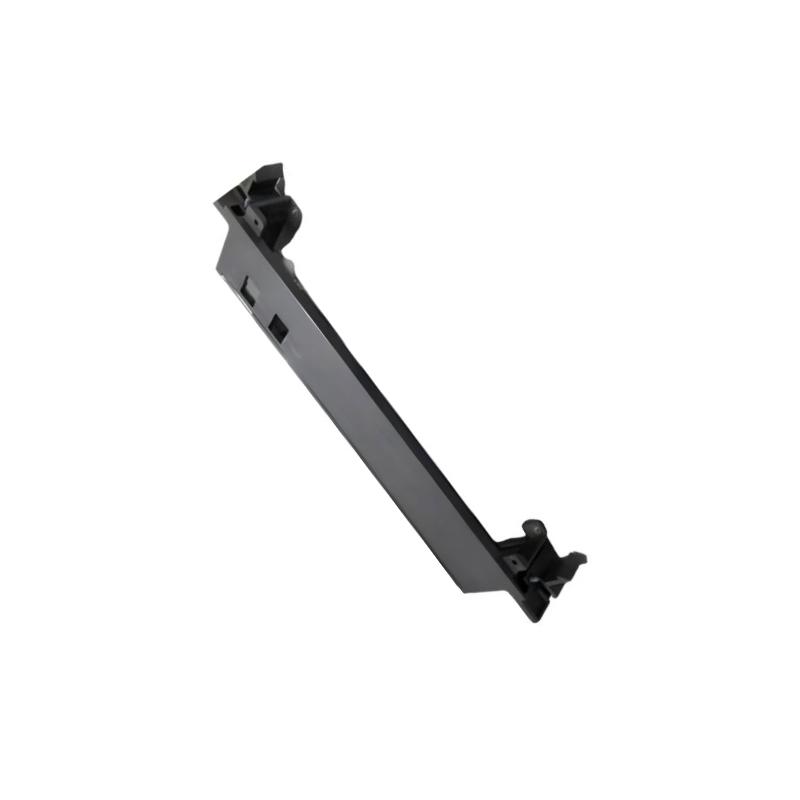

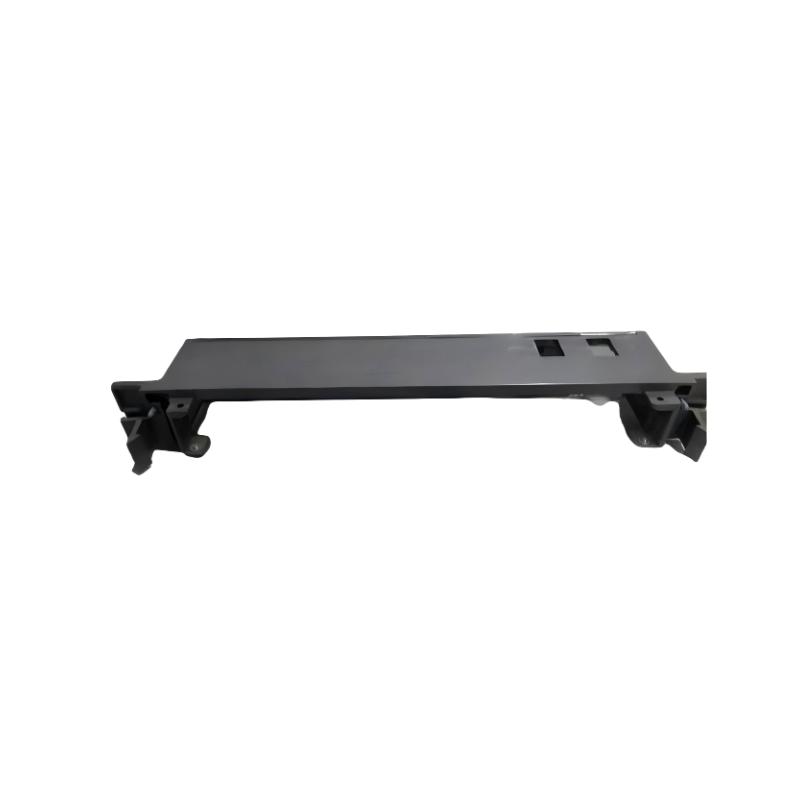

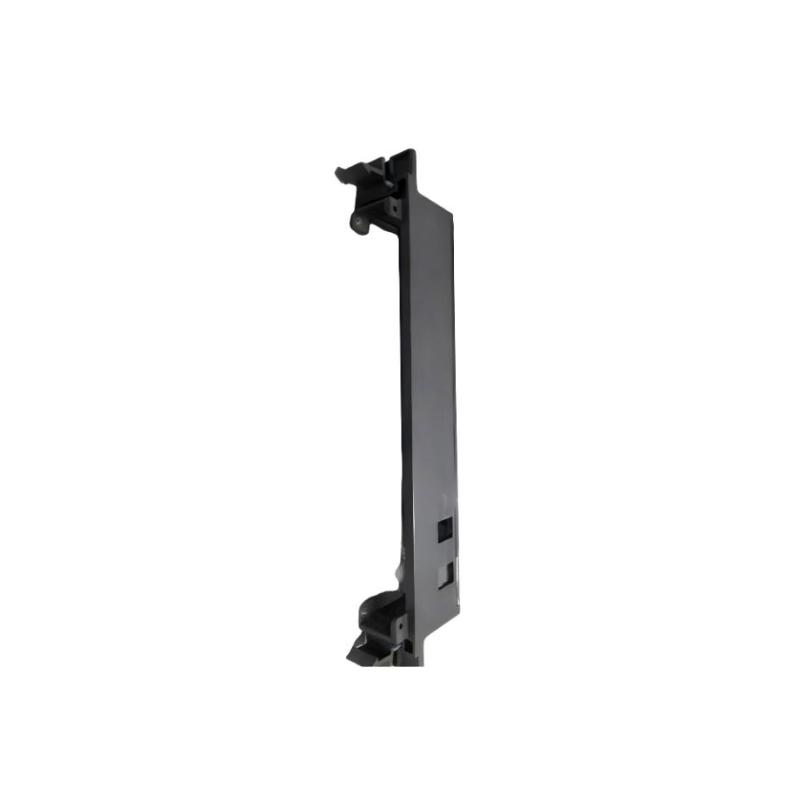

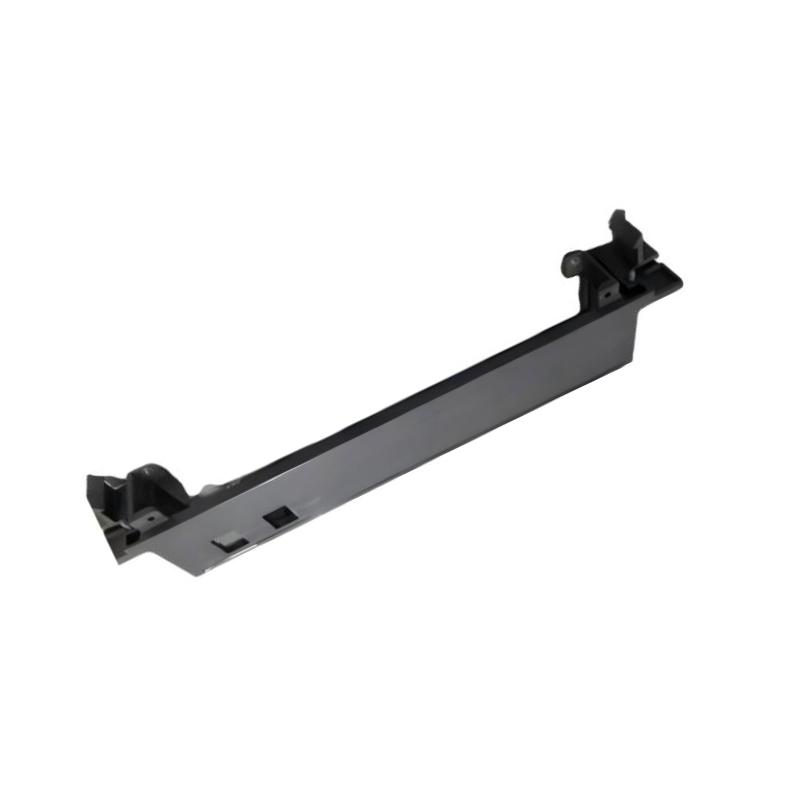

The GE IC697ACC720 is a blank slot filler module designed for GE Fanuc Series 90-70 PLC systems. Its primary function is to occupy unused slots in the PLC rack, ensuring proper airflow management, electromagnetic shielding, and physical protection of backplane connectors.
Although it does not perform active processing, this module plays an important role in maintaining system stability, noise reduction, and mechanical integrity in industrial control cabinets where long-term reliability is critical.
Technical Specifications
The IC697ACC720 is engineered as a passive structural component within PLC rack systems.
| Parameter | Specification |
|---|---|
| Model | IC697ACC720 |
| Product Type | Blank Slot Filler Module |
| System Compatibility | GE Fanuc Series 90-70 |
| Function | Slot protection / EMI shielding / airflow control |
| Electrical Function | None (passive module) |
| Installation | Plug-in rack slot |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | Approx. 100 mm × 50 mm × 20 mm (variant-dependent references exist) |
| Weight | Approx. 0.1 – 0.5 kg (depending on packaging/version) |
The compact structure ensures a tight mechanical fit within Series 90-70 rack assemblies while maintaining proper system enclosure balance.
Recommended Related Models
For complete GE Series 90-70 rack configuration and maintenance, the following modules are commonly used alongside IC697ACC720:
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
- GE IC697BEM711 Bus Controller Module
- GE IC697MDL Series I/O Modules
These components together form a stable and expandable industrial control system architecture.
