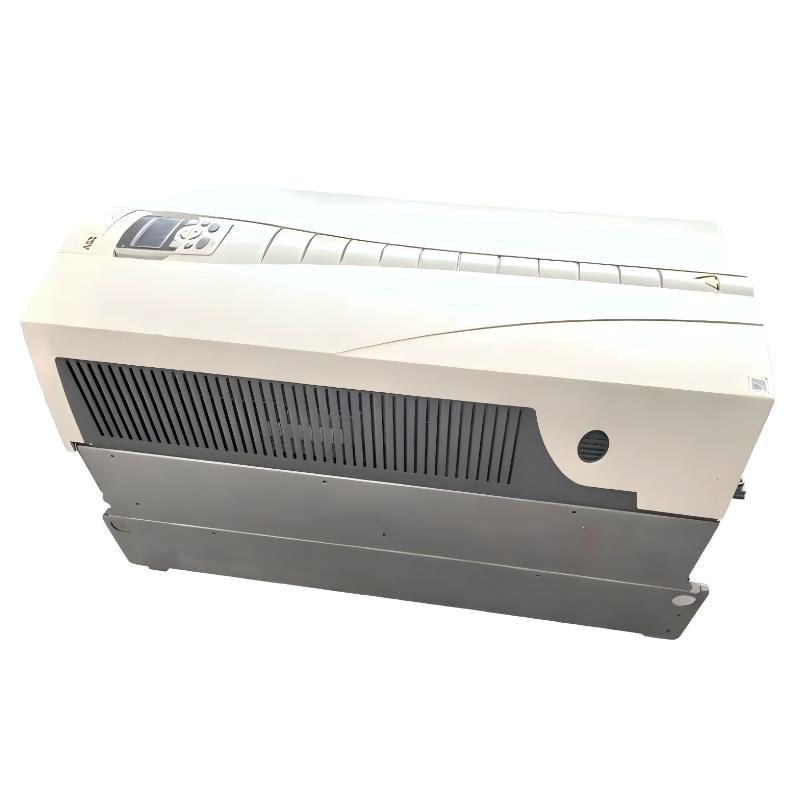

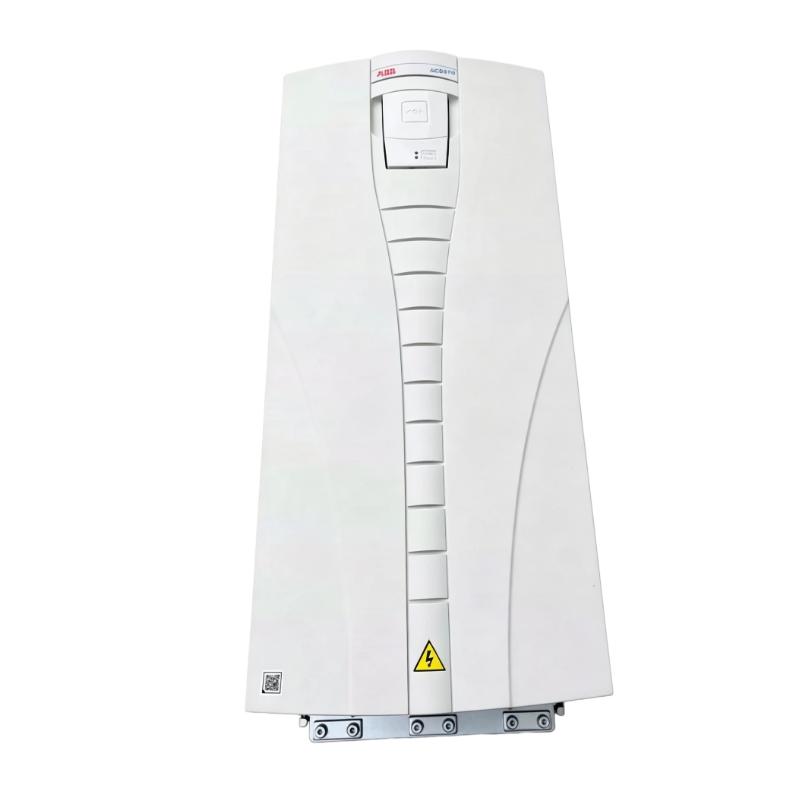

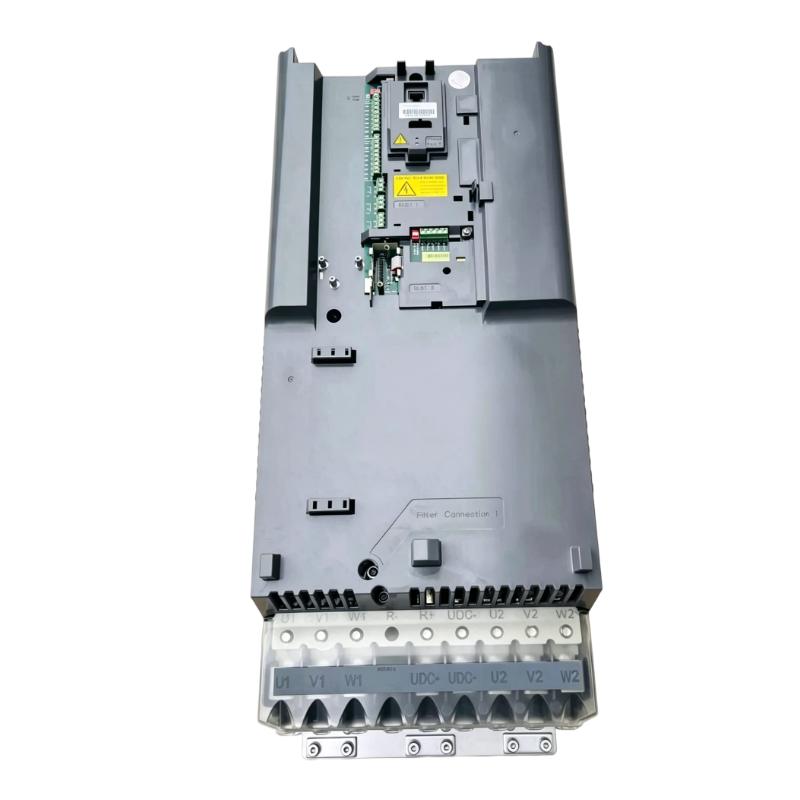

ABB ACS510-01-290A-4 3ABD00027039-E Variable Frequency Drive (VFD)

Industrial Application Overview

The ABB ACS510-01-290A-4 3ABD00027039-E Variable Frequency Drive is designed for high-performance motor control in industrial environments where stable operation, energy efficiency, and long-term reliability are essential. As part of the ABB ACS510 standard drive family, this VFD provides a practical solution for controlling large three-phase AC motors in variable-speed applications.

With a 160 kW output capacity and 290 A rated current, this drive is suitable for demanding equipment that requires smooth acceleration, accurate speed adjustment, and dependable process control. It is commonly used in industrial systems where optimizing motor performance and reducing unnecessary energy consumption are key priorities.

Typical applications include:

• Industrial water pumping systems
• HVAC and ventilation equipment
• Large fans and blowers
• Conveyor and material handling systems
• Manufacturing production lines
• Process automation machinery
• Industrial motor control applications

Key Benefits & Performance Advantages

High-Power Motor Control Capability

The ACS510-01-290A-4 delivers reliable control for high-power motors, supporting applications that require consistent operation under changing load conditions. Its strong output capability makes it suitable for large industrial equipment.

Energy Optimization for Variable-Speed Systems

By adjusting motor speed according to actual system requirements, this VFD helps improve operational efficiency in applications such as pumps and fans, where variable-speed control can significantly enhance energy management.

Reliable Industrial Design

ABB’s ACS510 platform is engineered for industrial environments, providing durable construction and stable performance for continuous-duty applications.

Easy Integration into Automation Systems

The drive supports flexible integration with industrial control systems, allowing engineers to build efficient and scalable motor control solutions.

Simplified Commissioning and Maintenance

The ACS510 series offers practical configuration features that help reduce setup complexity and support easier maintenance throughout the product lifecycle.

Technical FAQs

1. What is the ABB ACS510-01-290A-4 mainly designed for?

This VFD is designed for controlling large three-phase AC motors in industrial applications requiring adjustable speed operation and reliable motor management.

2. What is the rated output power of this model?

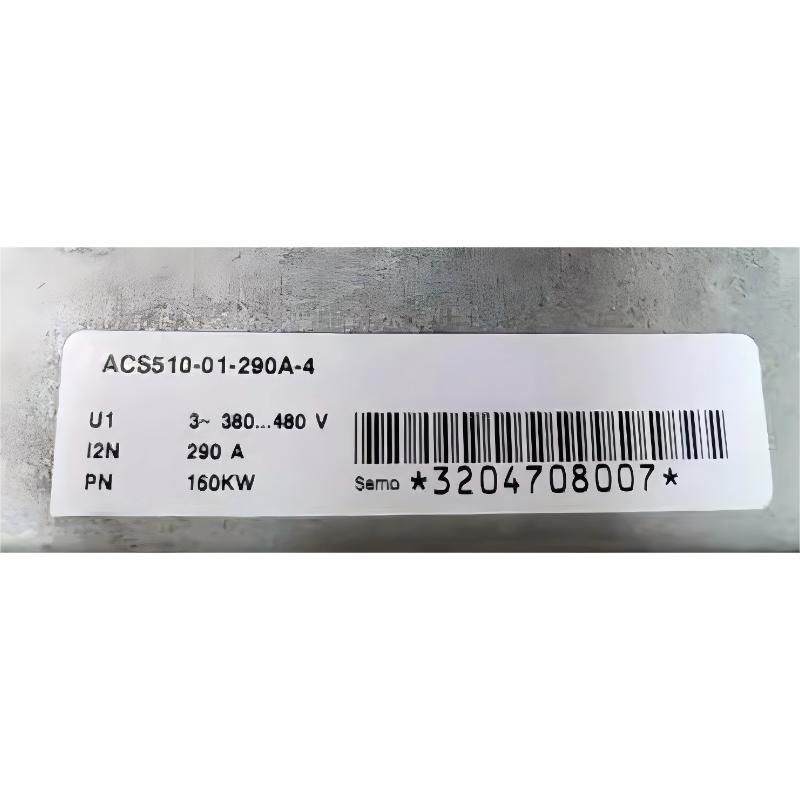

The ACS510-01-290A-4 supports a rated output power of 160 kW for normal-use applications.

3. What type of motors can be controlled by this drive?

The drive is primarily used with standard three-phase AC induction motors commonly found in industrial machinery.

4. What input voltage range does this VFD support?

The ACS510-01-290A-4 is designed for three-phase 380–480 VAC power systems.

5. Can the drive be used for pump and fan applications?

Yes. The ACS510 series is especially suitable for variable torque applications including pumps, fans, and ventilation systems.

6. Does this model support industrial communication?

Yes. The ACS510 family provides communication capabilities for integration with automation and monitoring systems.

7. What control functions are available on this VFD?

The drive provides adjustable frequency control functions for managing motor speed, acceleration, and operating performance.

8. Is the ACS510-01-290A-4 suitable for continuous operation?

Yes. It is designed for industrial applications requiring stable and reliable motor control performance.

9. Can operating parameters be adjusted for different applications?

Yes. Users can configure operating parameters according to motor specifications and application requirements.

10. What industries commonly use ABB ACS510 drives?

These drives are widely used in water treatment, HVAC, manufacturing, process industries, and general automation systems.
