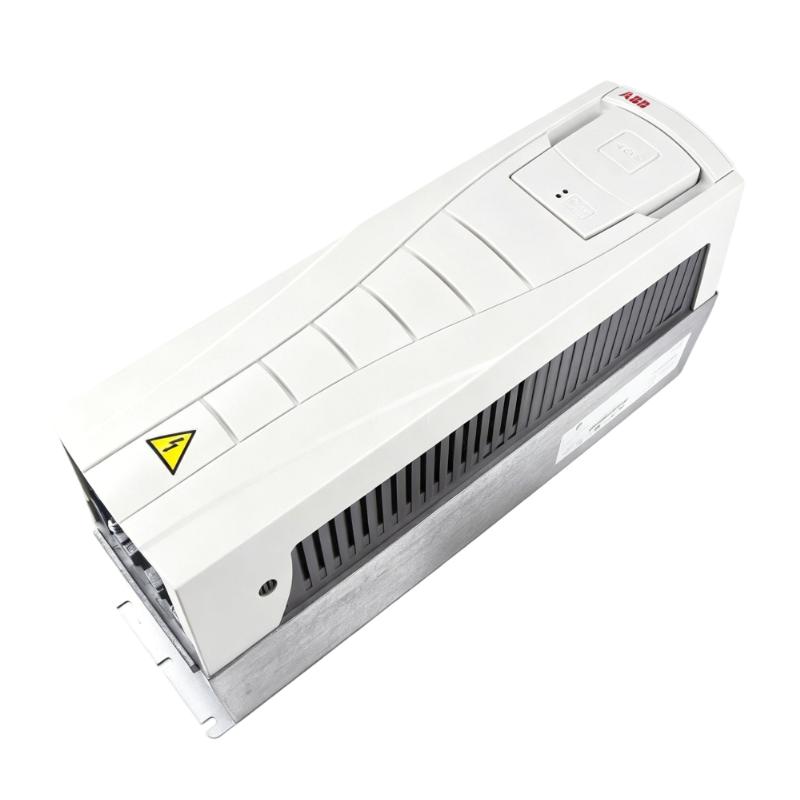

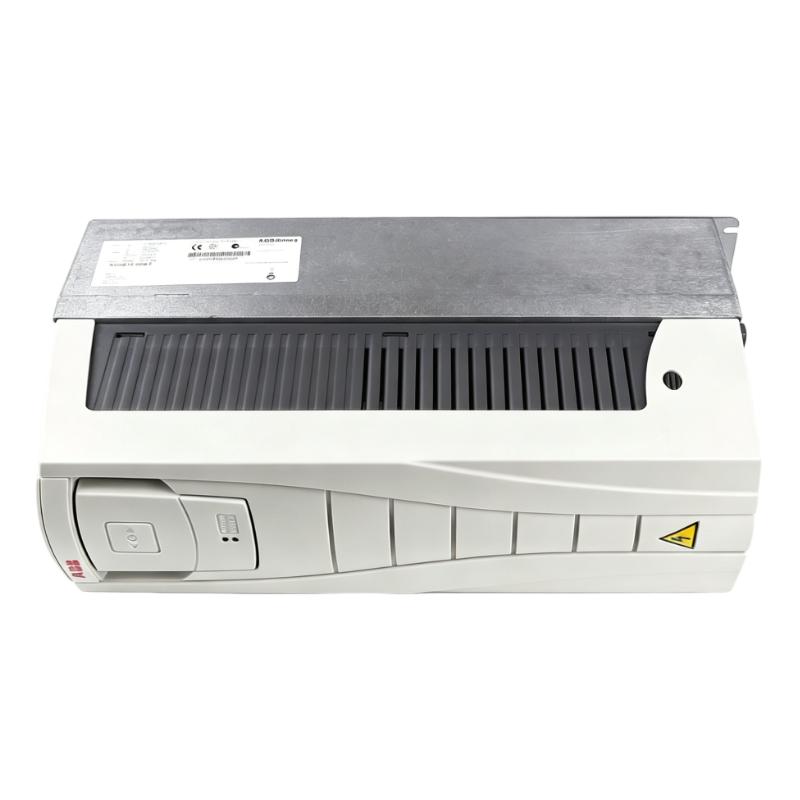

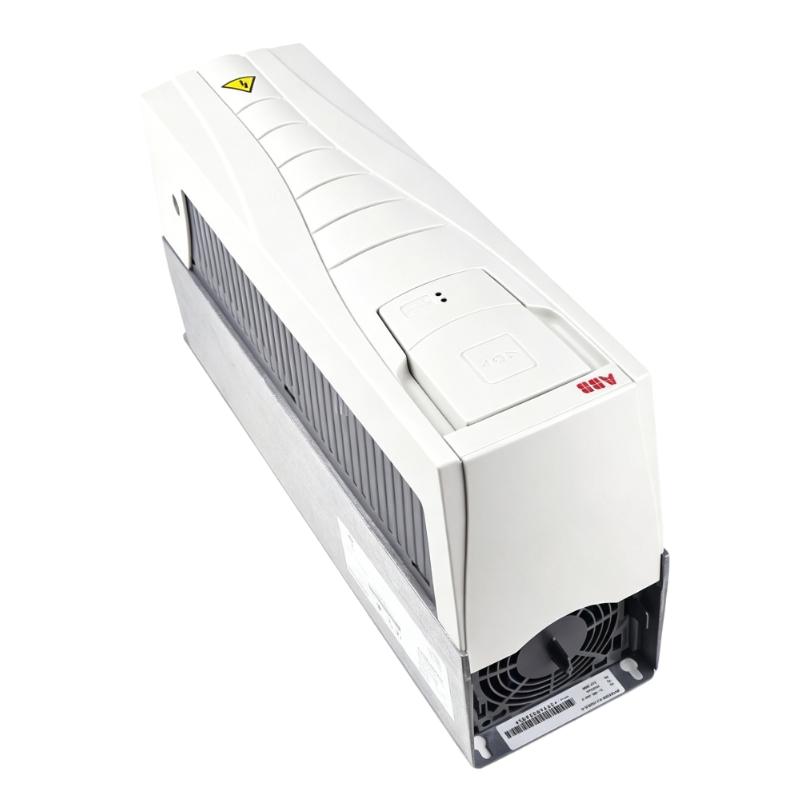

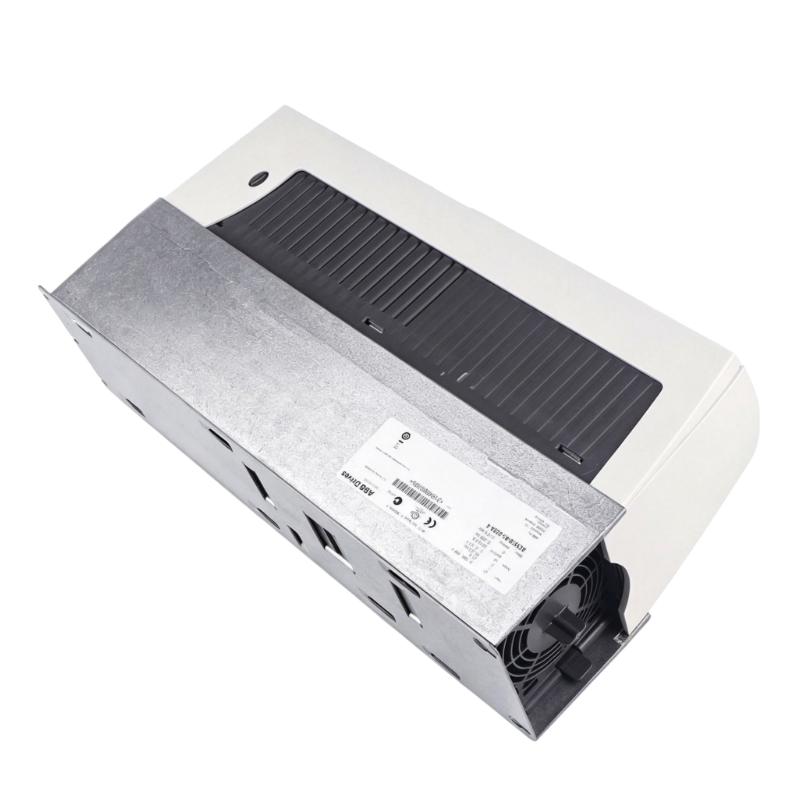

ABB ACS550-01-023A-4 3AUA0000002417-D Variable Frequency Drive (VFD)
ABB ACS550-01-023A-4 3AUA0000002417-D Variable Frequency Drive (VFD)
0.0
Points
Brand:ABB PLC Item No.:ACS550-01-023A-4 Product Origin:Sweden (SE) Product Dimensions:565 × 225 × 365 mm Product Weight:9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS550-01-023A-4 3AUA0000002417-D Variable Frequency Drive is a versatile industrial motor control solution designed for applications requiring dependable speed adjustment and efficient operation. This model belongs to ABB’s ACS550 general-purpose drive family, which provides reliable control technology for various industrial automation requirements.
Featuring an 11 kW power rating, 23 A output capability, and a three-phase 380–480 VAC configuration, the ACS550-01-023A-4 delivers balanced performance for pumps, fans, conveyors, and other motor-driven equipment.
Its robust design, flexible control capability, and ABB engineering quality make it a dependable choice for system integrators and industrial users seeking efficient motor management.
Technical Specifications
Specification
Details
Product Model
ACS550-01-023A-4
Part Number
3AUA0000002417-D
Product Type
Variable Frequency Drive (VFD)
Manufacturer
ABB
Product Series
ACS550
Rated Output Power
11 kW
Rated Output Current
23 A
Input Voltage
380–480 VAC
Input Phase
Three Phase
Frequency Range
50/60 Hz
Frame Size
R2
Protection Rating
IP21
Mounting Type
Wall Mounted
Control Application
General Industrial Motor Control
Communication Capability
Industrial Communication Support
Cooling Method
Air Cooling
Dimensions
565 × 225 × 365 mm
Weight
9 kg (19.84 lb)
Recommended Related Models
ABB ACS550-01-016A-4 3AUA0000002416 Variable Frequency Drive
ABB ACS550-01-023A-4 3AUA0000002417-D Variable Frequency Drive
ABB ACS550-01-031A-4 Variable Frequency Drive
ABB ACS550-01-038A-4 Variable Frequency Drive
Popular Related Models
ABB ACS550-01-03A3-4 Variable Frequency Drive
ABB ACS550-01-04A1-4 Variable Frequency Drive
ABB ACS550-01-05A4-4 Variable Frequency Drive
ABB ACS550-01-08A8-4 Variable Frequency Drive
Industrial Application Areas
The ABB ACS550-01-023A-4 3AUA0000002417-D Variable Frequency Drive is a general-purpose AC drive designed to provide efficient and reliable motor speed control for industrial automation systems. As part of ABB’s proven ACS550 series, this VFD delivers flexible performance for applications requiring smooth motor operation, energy optimization, and dependable process control.
With an 11 kW output rating and 23 A current capacity, this model is well suited for controlling medium-duty three-phase AC motors in a variety of industrial environments. It offers a practical solution for applications where stable operation, easy integration, and long-term reliability are important.
Typical applications include:
Pumping and water circulation systems
HVAC and ventilation equipment
Conveyor systems
Packaging machinery
Material handling equipment
Industrial fans and blowers
General manufacturing automation systems
Performance Highlights & Product Advantages
Reliable Motor Control Performance
The ACS550-01-023A-4 provides accurate frequency adjustment and stable motor regulation, helping equipment achieve smooth acceleration, consistent speed control, and improved operational efficiency.
Energy-Efficient Operation
By allowing motors to operate according to actual process requirements, this VFD helps optimize energy usage in variable-speed applications such as pumps, fans, and conveyors.
Flexible Industrial Integration
Designed for general automation environments, the ACS550 series supports convenient integration into industrial control systems, making it easier to develop reliable motor control solutions.
Compact and Practical Design
The wall-mounted construction provides a space-efficient installation option while maintaining industrial-grade performance for everyday automation requirements.
Simplified Commissioning and Maintenance
The ACS550 platform offers straightforward configuration and user-friendly operation, helping reduce installation complexity and improve maintenance efficiency.
Technical FAQs
1. What is the primary function of the ABB ACS550-01-023A-4?
The ACS550-01-023A-4 is a Variable Frequency Drive used to regulate the speed and performance of three-phase AC motors by controlling output frequency and voltage.
2. What motor power rating does this VFD support?
This model supports an 11 kW normal-duty motor application with a rated output current of 23 A.
3. What type of motors can be controlled by this drive?
The drive is designed for standard three-phase AC induction motors commonly used in industrial machinery.
4. What input power supply is required?
The ACS550-01-023A-4 is designed for three-phase 380–480 VAC power systems.
5. Is this drive suitable for pump and fan applications?
Yes. The ACS550 series is commonly used for variable-speed applications including pumps, fans, and ventilation systems.
6. Does the ACS550-01-023A-4 support communication functions?
Yes. The ACS550 platform supports industrial communication options for integration with automation systems.
7. Can users adjust drive parameters according to application needs?
Yes. Operating parameters can be configured according to motor characteristics and specific application requirements.
8. What protection functions are included in this VFD?
The drive includes monitoring and protection functions designed to support safe and stable motor operation.
9. Can this model be used in continuous industrial operation?
Yes. It is designed for reliable performance in industrial environments requiring consistent motor control.
10. Why is the ACS550 series widely used in automation systems?
The ACS550 series combines reliable drive technology, flexible configuration, and practical installation features for a broad range of industrial applications.
