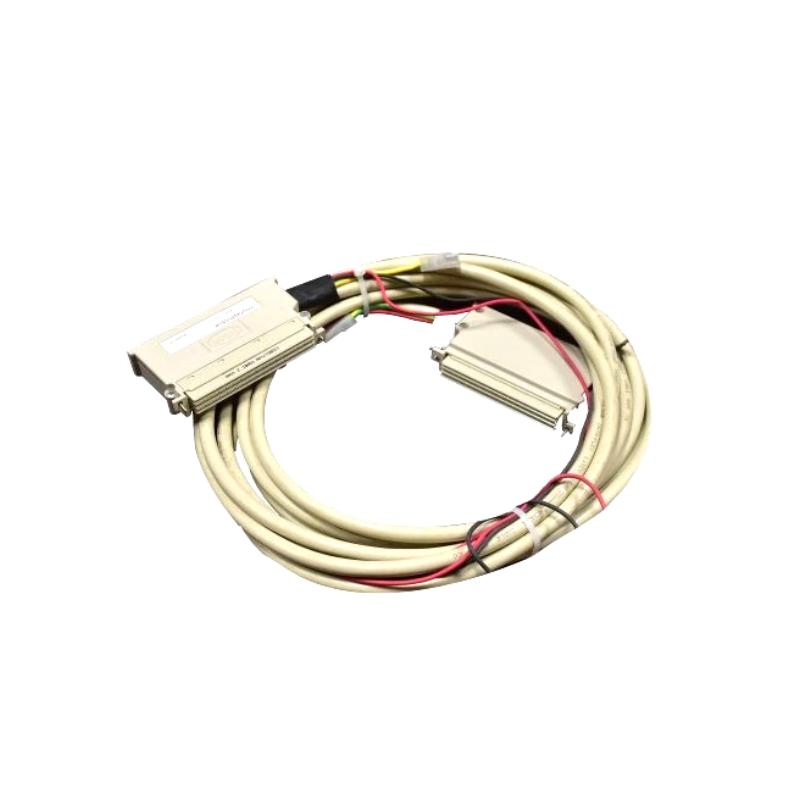

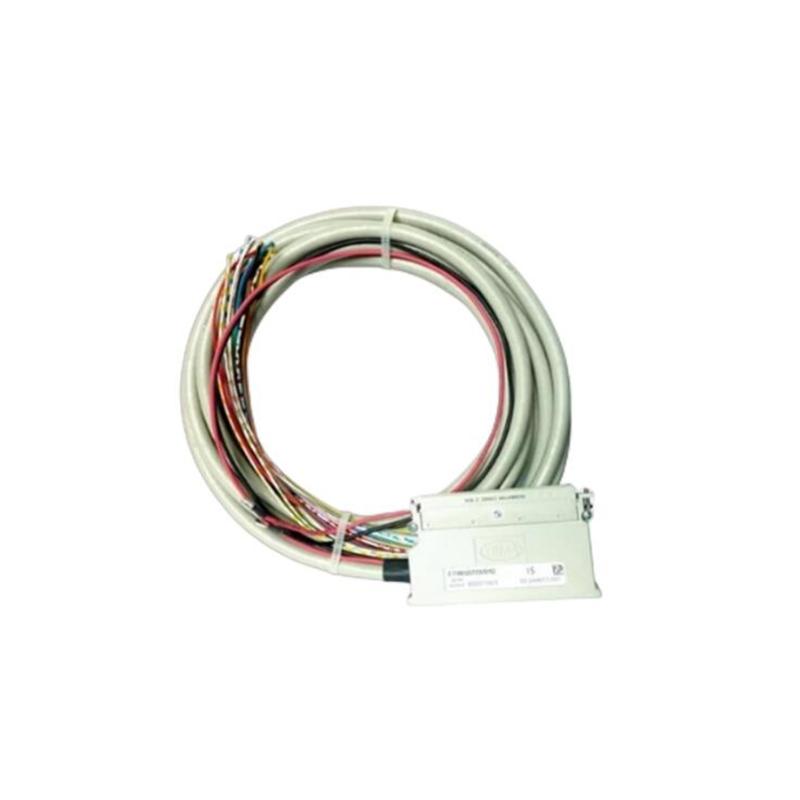

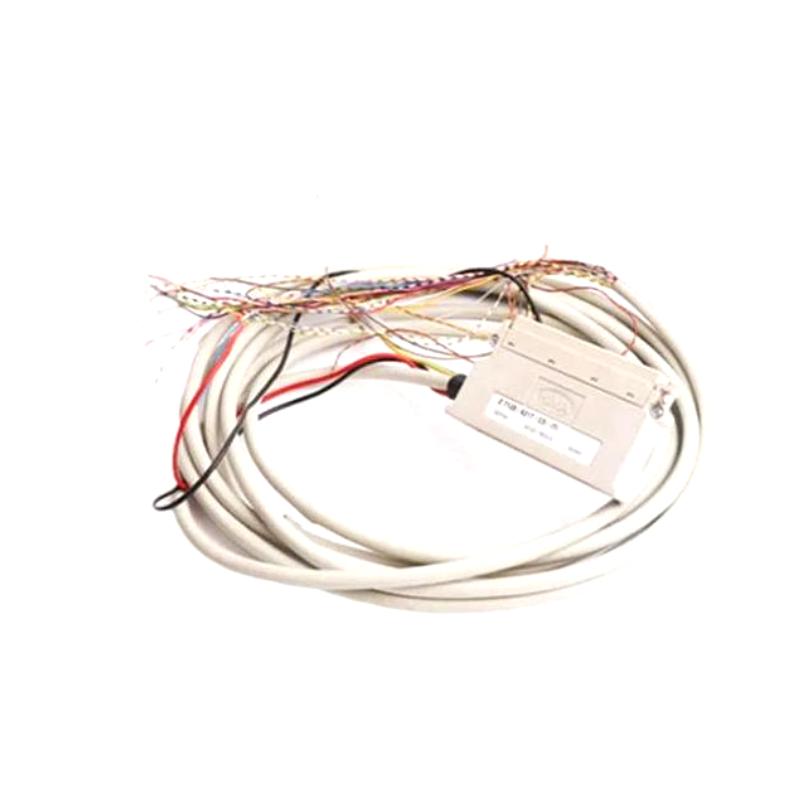

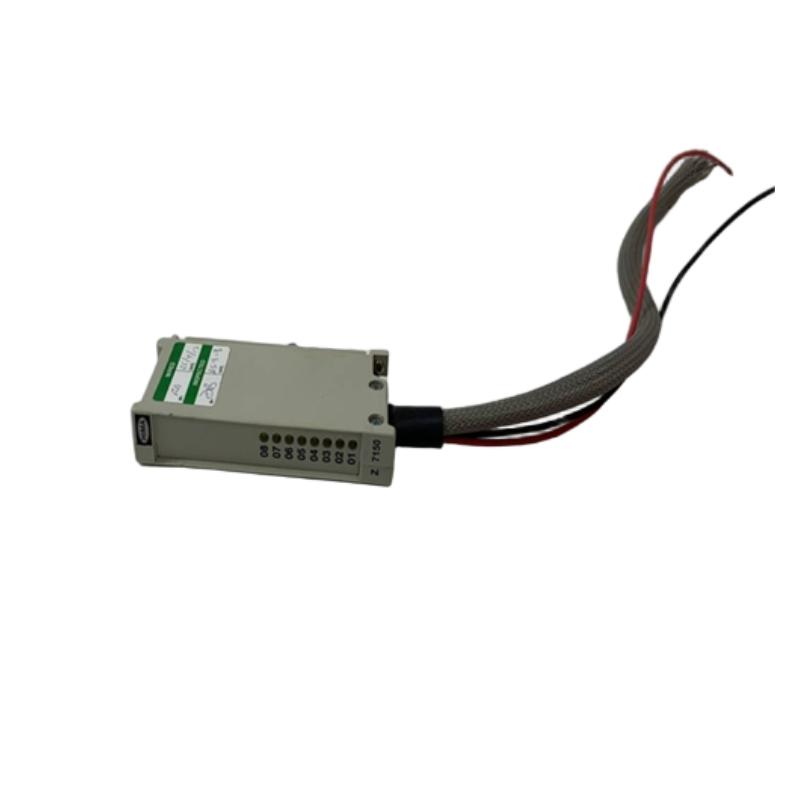

HIMA Z7150/3349/W5/24P2 Cable Plug

Applications

The HIMA Z7150/3349/W5/24P2 Cable Plug is engineered for reliable, high-density connections in complex industrial automation systems. Typical applications include:

• Connecting HIQuad and HIMA modular systems with multiple signal channels.
• SIL 3-compliant safety networks requiring precise, secure connections.
• Industrial automation across energy, chemical, manufacturing, and transportation sectors.
• Replacement, extension, or upgrade of existing multi-channel cable interfaces.
• Compact and high-density panel or rack-mounted setups where multiple signals must be transmitted reliably.

Advantages

The Z7150/3349/W5/24P2 Cable Plug delivers high performance, reliability, and compact integration:

• Multi-Signal Capability: Supports multiple signals through a single plug for efficient cabling.
• Compact Design: Measures only 45 × 100 × 115 mm, suitable for dense installations.
• Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature changes.
• Plug-and-Play Installation: Quick and secure connection reduces downtime.
• Seamless System Integration: Fully compatible with Z7150 cables and HIQuad modules.

Technical FAQs

1. What does “W5/24P2” indicate?
   Denotes the specific plug configuration with 24 pins for multi-signal connections.
2. Can it be used in SIL-rated systems?
   Yes, supports SIL 3-compliant safety networks.
3. What is the operating temperature range?
   -20°C to 70°C.
4. Is it suitable for high-vibration industrial environments?
   Yes, designed to maintain reliable connections under vibration.
5. Does it support both digital and analog signals?
   Yes, capable of handling multiple signal types in industrial automation.
6. Can it be mounted in panels or racks?
   Yes, compact dimensions allow integration into high-density setups.
7. How durable is the plug?
   Industrial-grade materials ensure long-lasting performance.
8. Is maintenance straightforward?
   Yes, plug-and-play design allows quick replacement or reconnection without downtime.
9. Are variants available for different pin counts?
   Yes, HIMA offers plugs with different pin configurations for various applications.
10. Is it compatible with Z7150 series cables?
    Yes, fully compatible with Z7150 cable connectors and modules.
