Introduction

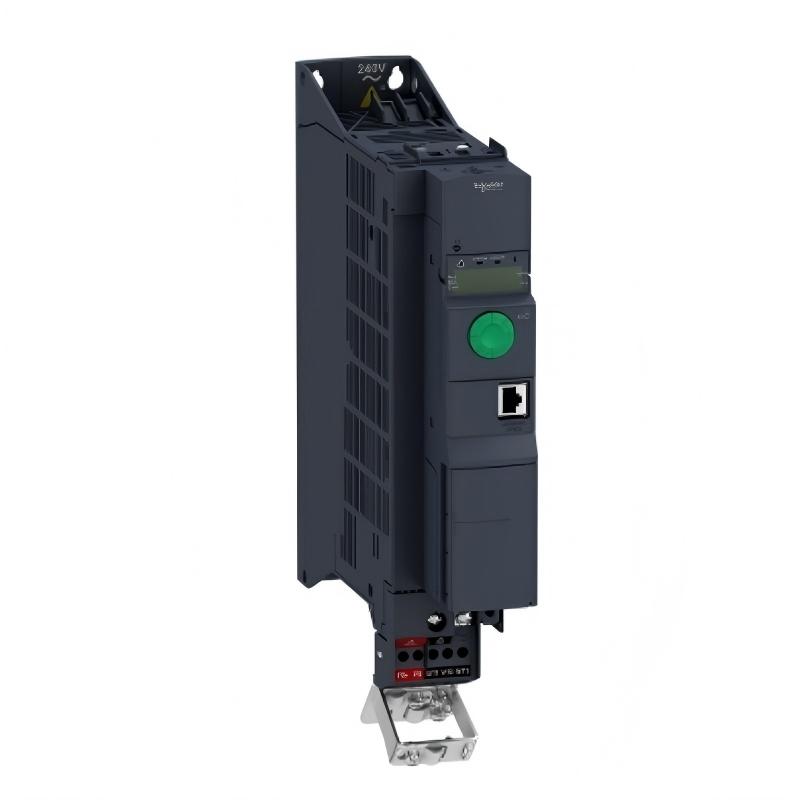

The Schneider ATV320U22M2B Frequency Converter Module is part of the Altivar Machine ATV320 family, developed to deliver efficient and reliable motor control for modern industrial automation systems.
Designed for 2.2 kW motor applications with 200–240 V single-phase input, this variable speed drive combines compact mechanical design with advanced control technology. It provides engineers with a practical solution for optimizing machine performance, improving energy efficiency, and simplifying system integration.
With integrated safety features, flexible communication options, and Schneider Electric’s proven automation expertise, the ATV320U22M2B is an ideal choice for OEM builders, machine manufacturers, and industrial users seeking dependable drive performance in space-limited installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar Machine ATV320 |
| Model Number | ATV320U22M2B |
| Module Type | Frequency Converter Module |
| Drive Type | Variable Speed Drive |
| Rated Motor Power | 2.2 kW |
| Input Voltage | 200–240 V AC |
| Input Phase | Single Phase |
| Output Voltage | 200–240 V AC |
| Rated Output Current | 11 A |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | V/F Control, Sensorless Vector Control |
| Motor Compatibility | Asynchronous Motors / Permanent Magnet Motors |
| Communication Protocol | Modbus RTU |
| Safety Function | Safe Torque Off (STO) |
| EMC Filter | Integrated |
| Protection Rating | IP20 |
| Installation Method | Cabinet Mounting |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (H × W × D) | 60 x 245 x 325 mm |
| Weight | 2.9 kg |
Recommended Companion Models
| Model | Product Name | Application |
|---|---|---|
| ATV320U07M2B | Schneider Altivar Machine ATV320 Variable Speed Drive | Compact motor control applications up to 0.75 kW |
| ATV320U15M2B | Schneider Altivar Machine ATV320 Frequency Converter | Small industrial automation equipment |
| ATV320U30M3C | Schneider Altivar Machine ATV320 Variable Speed Drive | Three-phase motor control systems |
| ATV320U55N4B | Schneider Altivar Machine ATV320 Frequency Converter | Higher-power industrial machinery applications |
Frequently Selected Alternatives
| Model | Product Name | Application |
|---|---|---|
| ATV320U11M2B | Schneider Altivar Machine ATV320 Variable Speed Drive | Compact OEM machine applications |
| ATV320U22N4B | Schneider Altivar Machine ATV320 Frequency Converter | 400 V industrial motor systems |
| ATV320U40N4B | Schneider Altivar Machine ATV320 Variable Speed Drive | Medium-duty automation equipment |
| ATV320D15N4B | Schneider Altivar Machine ATV320 Drive | Advanced industrial motion control solutions |
