Product Overview

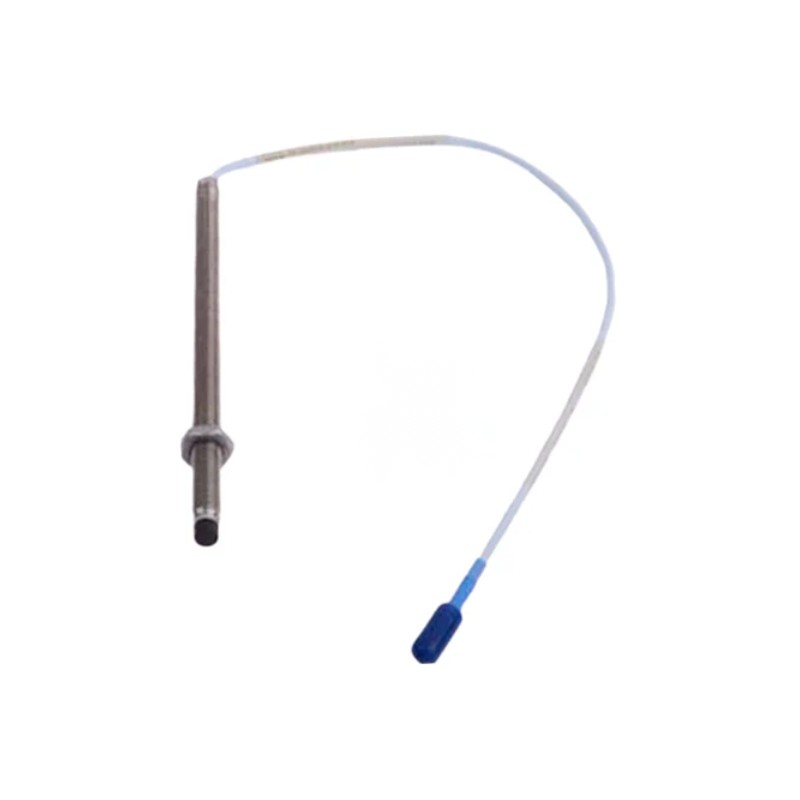

The Bently Nevada 330908-00-08-10-02-05 belongs to the 3300 NSv Proximity Transducer System, a product family developed for machinery where installation space is limited or shaft diameters are smaller than those accommodated by standard proximity probe systems.

This ordering configuration includes a standard 3/8-24 UNF threaded probe, a 0.8-inch case length, a 1.0-meter integral cable, a miniature ClickLoc connector, and the Multiple Approvals option. It is commonly selected for compressor, turbine, pump, and gearbox monitoring systems that require dependable shaft vibration and position measurement.

Its compact construction makes installation easier in restricted locations while maintaining compatibility with the complete 3300 NSv monitoring system.

Technical Specifications

Parameter	Specification
Product Family	3300 NSv Proximity Transducer System
Model Number	330908-00-08-10-02-05
Module Type	Proximity Probe Module
Product Type	Standard Proximity Probe
Measurement Technology	Eddy Current, Non-Contact
Probe Thread	3/8-24 UNF
Unthreaded Length Option	00
Case Length Option	08 (0.8 in)
Integral Cable Length	10 (1.0 m / 3.3 ft)
Connector Option	02 – Miniature ClickLoc Connector
Agency Approval Option	05 – Multiple Approvals
Compatible Extension Cable	330930 NSv Extension Cable
Compatible Sensor	330980 NSv Proximitor Sensor
Installation Method	Threaded Mounting

Recommended Companion Models

Model	Product Name	Description
330930-040-00-00	Bently Nevada 3300 NSv Extension Cable	Extension cable for 3300 NSv proximity systems
330980-50-00	Bently Nevada 3300 NSv Proximitor Sensor	Signal conditioning module for NSv probes
330909-00-08-10-02-05	Bently Nevada 3300 NSv Armored Proximity Probe	Armored version for harsher installation environments
330905-02-12-10-02-05	Bently Nevada 3300 NSv M10 Proximity Probe	Metric-thread proximity probe for compatible equipment

Frequently Selected Alternatives

Model	Product Name	Description
330908-00-08-05-02-05	Bently Nevada 3300 NSv Proximity Probe	Same probe with 0.5 m cable configuration
330901-00-08-10-02-05	Bently Nevada 3300 NSv 1/4-28 UNF Proximity Probe	Alternative thread configuration
330902-00-08-10-02-05	Bently Nevada 3300 NSv Armored 1/4-28 UNF Proximity Probe	Armored cable version for demanding environments
330101-00-08-10-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe	Standard 8 mm proximity probe for general rotating machinery

Where It Excels in Industrial Use

Centrifugal compressor monitoring
Steam and gas turbine monitoring
Pump and motor protection systems
Gearbox condition monitoring
Rotating machinery vibration measurement
Small shaft and restricted-space installations
Continuous equipment condition monitoring

Key Strengths at a Glance

Compact probe design for limited installation space
Eddy current sensing for non-contact measurement
Standard 3/8-24 UNF threaded probe
1.0 m integral cable configuration
Miniature ClickLoc connector for secure connection
Suitable for continuous industrial operation
Compatible with 3300 NSv monitoring systems
Reliable performance in demanding industrial environments

Technical FAQs

1. What is the primary function of the 330908-00-08-10-02-05?

It is used to monitor shaft vibration and shaft position on rotating machinery as part of a proximity transducer system.

2. Which machines commonly use this probe?

Typical applications include centrifugal compressors, turbines, pumps, motors, gearboxes, and other rotating equipment.

3. What sensing principle does this probe use?

The probe operates using eddy current technology to detect changes between the probe tip and the conductive target surface without physical contact.

4. Is this probe suitable for confined installation spaces?

Yes. The 3300 NSv Series was developed for applications where standard proximity probes cannot be installed because of limited mounting space or small shaft diameters.

5. What cable configuration is supplied with this model?

The 10 ordering option specifies a 1.0 m (3.3 ft) integral cable.

6. What connector configuration does this model use?

The 02 option identifies a miniature ClickLoc connector with a standard cable configuration.

7. Which monitoring system is compatible with this probe?

The probe is intended for use with compatible 3300 NSv extension cables and Proximitor Sensors within the 3300 NSv Proximity Transducer System.

8. Can this probe be used for shaft position measurement?

Yes. Depending on the monitoring configuration, it can be applied to shaft position, radial vibration, and phase reference measurements.

9. What should be checked before replacing an existing probe?

Verify the thread type, case length, cable length, connector option, approval option, and compatibility with the installed extension cable and Proximitor Sensor.
