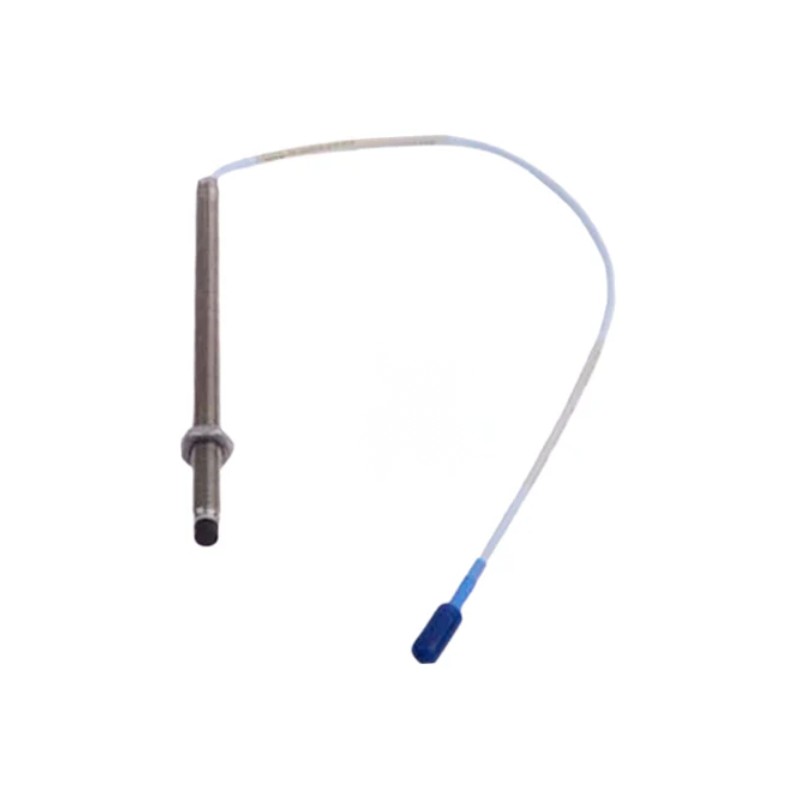

Bently Nevada 330908-00-16-10-01-05 3300 NSv Proximity Probe Module
Bently Nevada 330908-00-16-10-01-05 3300 NSv Proximity Probe Module
0.0
Points
Brand:Bently Nevada PLC Item No.:330908-00-16-10-01-05 Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330908-00-16-10-01-05 is a 3300 NSv Proximity Probe designed for rotating machinery applications where installation space is limited and accurate shaft measurement is required.
This configuration features a 3/8-24 UNF threaded probe, 1.6-inch overall case length, 1.0-meter integral cable, Miniature ClickLoc connector with connector protector, and the Multiple Approvals option. It is intended for use with compatible 3300 NSv system components to measure shaft vibration and shaft position on compressors, turbines, pumps, and other critical rotating equipment.
Its compact construction makes it suitable for applications where conventional proximity probes cannot be easily installed while maintaining reliable measurement performance throughout continuous industrial operation.
Technical Specifications
Parameter
Specification
Product Family
3300 NSv Proximity Transducer System
Model Number
330908-00-16-10-01-05
Module Type
Proximity Probe Module
Product Type
Standard Proximity Probe
Probe Thread
3/8-24 UNF
Armor
Without Armor
Unthreaded Length Option
00 (0.0 in)
Overall Case Length
16 (1.6 in)
Integral Cable Length
10 (1.0 m / 3.3 ft)
Connector Option
01 – Miniature ClickLoc Connector with Connector Protector, Standard Cable
Agency Approval
05 – Multiple Approvals
Measurement Technology
Eddy Current, Non-Contact
Compatible Extension Cable
330930 NSv Extension Cable
Compatible Sensor
330980 NSv Proximitor Sensor
Installation Method
Threaded Mounting
Recommended Companion Models
Model
Product Name
330930-040-00-00
Bently Nevada 3300 NSv Extension Cable
330980-50-00
Bently Nevada 3300 XL NSv Proximitor Sensor
330909-00-16-10-01-05
Bently Nevada 3300 NSv Armored Proximity Probe
330905-02-16-10-01-05
Bently Nevada 3300 NSv M10 Proximity Probe
Frequently Selected Alternatives
Model
Product Name
330908-00-16-10-02-05
Bently Nevada 3300 NSv Proximity Probe
330908-00-16-10-11-05
Bently Nevada 3300 NSv Proximity Probe
330901-00-16-10-01-05
Bently Nevada 3300 NSv 1/4-28 UNF Proximity Probe
330909-00-16-10-11-05
Bently Nevada 3300 NSv Armored Proximity Probe
Where It Excels in Industrial Use
Centrifugal compressor monitoring
Steam and gas turbine protection systems
Pump and motor vibration monitoring
Gearbox shaft displacement measurement
Rotating machinery condition monitoring
Industrial equipment with restricted installation space
Continuous machinery protection applications
Key Strengths at a Glance
Compact 3300 NSv probe design for space-constrained installations
Non-contact eddy current sensing technology
3/8-24 UNF threaded mounting
1.6-inch overall case length
1.0 m integral cable configuration
Miniature ClickLoc connector with connector protector
Standard cable construction
Multiple Approvals configuration for industrial applications
Technical FAQs
1. What is the primary function of the 330908-00-16-10-01-05?
It is used to monitor shaft vibration and shaft position in rotating machinery through non-contact measurement.
2. Which applications commonly use this proximity probe?
The probe is widely used on compressors, turbines, pumps, motors, blowers, and gearboxes where continuous machinery monitoring is required.
3. What does the "16" option represent?
The 16 ordering code identifies a 1.6-inch overall case length.
4. What cable length is supplied with this configuration?
The 10 option specifies a 1.0-meter integral cable.
5. What does the "01" connector option indicate?
It specifies a Miniature ClickLoc connector with connector protector and standard cable.
6. What mounting thread is used on this model?
The probe uses a 3/8-24 UNF threaded body for installation.
7. Does this probe require contact with the shaft?
No. It measures shaft movement using non-contact eddy current technology.
8. Which system components are required with this probe?
It is designed to operate with a compatible 3300 NSv extension cable and 3300 XL NSv Proximitor Sensor.
9. What does the "05" approval option indicate?
It designates the Multiple Approvals version for installations requiring certified industrial approvals.
10. What should be verified before replacing an existing probe?
Confirm the probe model, thread type, case length, cable length, connector configuration, approval option, and compatibility with the installed transducer system.
