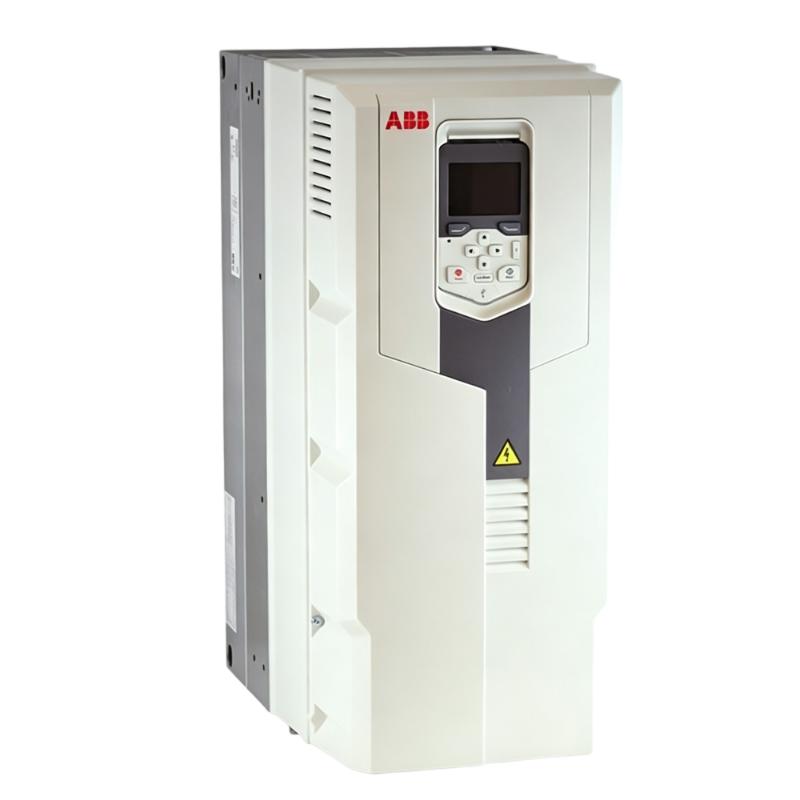

ABB ACS580-01-145A-4 3AUA0000080504 Variable Frequency Drive (VFD)
ABB ACS580-01-145A-4 3AUA0000080504 Variable Frequency Drive (VFD)
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-145A-4 Product Origin:Sweden (SE) Product Dimensions:727 x 252 x 369 mm Product Weight:49.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-145A-4 3AUA0000080504 Variable Frequency Drive is engineered for industrial applications that require dependable motor control, efficient operation, and flexible system integration. As part of the ACS580 general-purpose drive family, it provides a practical solution for controlling high-power motors across multiple industries.
This VFD combines strong performance capability with a user-oriented design, helping operators achieve smoother motor operation, improved process control, and optimized energy usage. Its reliable construction and versatile application support make it a suitable choice for industrial automation projects and equipment upgrades.
Technical Specifications
Parameter
Specification
Product Type
Variable Frequency Drive (VFD)
Manufacturer
ABB
Model Number
ACS580-01-145A-4
Product Code
3AUA0000080504
Series
ACS580
Rated Output Power
75 kW
Rated Output Current
145 A
Input Voltage
380–480 V AC
Phase Type
Three Phase
Frequency
50/60 Hz
Mounting Type
Wall Mounted
Frame Size
R6
Protection Class
IP21
Control Type
General Purpose Motor Control
Application Category
Industrial Motor Drive
Cooling Method
Air Cooling
Dimensions (H × W × D)
727 × 252 × 369 mm
Weight
49.50 kg (109.13 lb)
Recommended Related Models
Model
Product Type
Recommended Application
ABB ACS580-01-105A-4
Variable Frequency Drive
Medium-power industrial motors
ABB ACS580-01-169A-4
Variable Frequency Drive
Higher-capacity motor systems
ABB ACS880-01-145A-4
Industrial Variable Frequency Drive
Advanced industrial applications
ABB ACS580-01-206A-4
Variable Frequency Drive
Heavy-duty process equipment
Popular Related Models
Model
Product Type
Common Application
ABB ACS580-01-046A-4
Variable Frequency Drive
Industrial pumps and fans
ABB ACS580-01-062A-4
Variable Frequency Drive
Machinery speed control
ABB ACS580-01-087A-4
Variable Frequency Drive
Process automation systems
ABB ACS880-01-105A-4
Industrial Drive
High-performance motor control
Industrial Applications & Operating Environments
The ABB ACS580-01-145A-4 3AUA0000080504 Variable Frequency Drive (VFD) is a high-performance general-purpose AC drive designed for controlling large industrial motors with reliable speed regulation and efficient power management. This model is suitable for demanding applications such as pumps, fans, compressors, conveyors, mixers, extruders, and other variable or constant torque systems.
With a 75 kW power rating and 145 A output current capability, the ACS580-01-145A-4 provides stable motor control for industrial facilities requiring dependable operation, reduced mechanical stress, and improved process efficiency. Its wall-mounted structure makes it suitable for factory automation systems, production equipment, and industrial control installations.
Key Advantages & Performance Features
High-Capacity Motor Control
Designed for larger three-phase AC motors, providing consistent operation in industrial applications requiring reliable speed adjustment.
Efficient Energy Management
Helps optimize motor performance by adjusting speed according to actual process demand, improving overall system efficiency.
Wide Application Compatibility
Suitable for pumps, fans, conveyors, compressors, mixers, and industrial process equipment.
Robust Industrial Construction
Built for continuous-duty environments with a durable design focused on long-term operational reliability.
Simplified Installation and Setup
Provides practical configuration functions that help engineers integrate and commission systems efficiently.
Flexible Automation Integration
Supports industrial control environments where communication and system connectivity are required.
Technical FAQs
1. What is the main function of the ABB ACS580-01-145A-4?
The ABB ACS580-01-145A-4 is a variable frequency drive designed to regulate AC motor speed and improve the efficiency of industrial motor systems.
2. What motor power range does this VFD support?
This model is designed for applications requiring approximately 75 kW motor power capacity.
3. What types of equipment can use this drive?
It is commonly used for pumps, fans, compressors, conveyors, mixers, extruders, and other industrial machinery.
4. Is the ACS580-01-145A-4 suitable for constant torque applications?
Yes. The drive supports both variable torque and constant torque applications depending on system requirements.
5. What voltage class does this model operate with?
The drive is designed for three-phase 380–480 V AC power systems.
6. Can this VFD be integrated into industrial automation networks?
Yes. It supports integration with industrial automation systems through available communication options.
7. What control functions are available in this model?
The drive provides advanced motor control functions for speed regulation, monitoring, and application adjustment.
8. How does this VFD help reduce equipment wear?
By controlling motor acceleration, deceleration, and operating speed, it helps reduce mechanical stress on connected equipment.
9. Can operating parameters be customized?
Yes. Parameters can be adjusted according to motor characteristics and specific application requirements.
10. What should be checked before replacing an existing drive?
Users should confirm motor power, voltage rating, current requirements, installation dimensions, and control compatibility.
