Brand:Schneider PLC Item No.:ATV320U04M3C Product Origin:France Product Dimensions:72 x 143 x 128 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

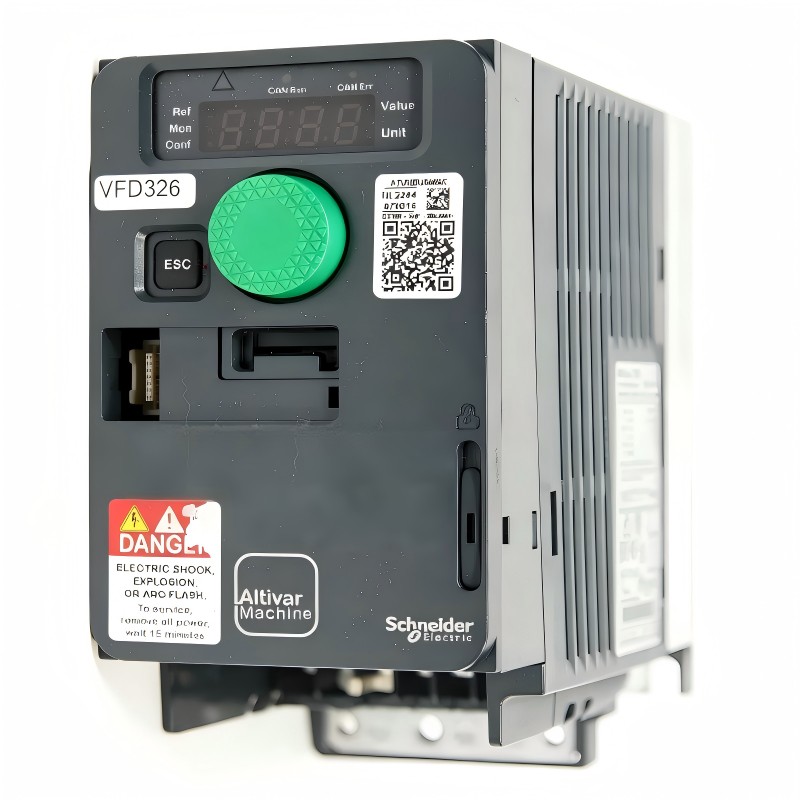

The Schneider ATV320U04M3C Variable-Speed Drive Module delivers efficient and precise motor control in a compact industrial package. Designed for machine automation applications, it combines reliable performance, flexible integration, and intelligent control features to meet the requirements of modern equipment manufacturers.
This drive helps improve machine productivity by providing smooth motor operation, optimized energy usage, and simplified system development. Its compact structure makes it an excellent choice for applications where installation space is limited but dependable motor control is essential.
The ATV320U04M3C offers a balanced combination of performance, efficiency, and reliability, making it a practical solution for industrial automation systems and OEM machine builders.
Technical Specifications
Specification
Details
Product Model
ATV320U04M3C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
0.37 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Three Phase
Rated Output Current
3.3 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Panel Mounting
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
72 × 143 × 128 mm
Weight
0.90 kg (1.98 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U02M3C
Variable-Speed Drive Module
Compact drive solution for lower-power motor applications
Schneider ATV320U06M3C
Variable-Speed Drive Module
Higher-capacity drive for expanded machine requirements
Schneider ATV320U07M3C
Variable-Speed Drive Module
Flexible automation drive for compact industrial systems
Popular Related Models
Model
Product Type
Description
Schneider ATV320U11M3C
Variable-Speed Drive Module
Widely used drive for general industrial automation equipment
Schneider ATV320U15M3C
Variable-Speed Drive Module
Suitable for medium-duty machine control applications
Schneider ATV320U22M3C
Variable-Speed Drive Module
Advanced drive option for higher-performance automation systems
Industrial Applications
The Schneider ATV320U04M3C Variable-Speed Drive Module is a compact and reliable motor control solution designed for industrial machines that require precise speed adjustment, efficient operation, and flexible automation integration. As part of the Altivar Machine ATV320 family, this drive provides stable motor performance for OEM equipment and industrial control systems where space optimization and dependable operation are essential.
With advanced motor control functions and a compact footprint, the ATV320U04M3C helps engineers develop efficient automation solutions while maintaining consistent machine performance.
Application Field
Typical Uses
Packaging Automation
Conveyor systems, assembly equipment, filling machines, and automated production lines
Material Handling
Small conveyors, feeders, transfer mechanisms, and handling equipment
Machine Manufacturing
Compact machines requiring accurate motor speed and torque control
Pump and Fan Systems
Variable-speed operation for improved efficiency and process control
The compact structure allows flexible cabinet installation while supporting demanding industrial applications that require stable and efficient motor control.
Performance Advantages & Core Benefits
The ATV320U04M3C combines advanced drive technology with a space-efficient design, providing manufacturers with a dependable solution for modern industrial automation.
Advantage
Description
Compact Industrial Design
Reduces installation space requirements while maintaining strong control performance
Precise Motor Regulation
Provides accurate speed and torque management for improved machine operation
Energy Optimization
Helps reduce energy consumption by adjusting motor speed according to load requirements
Flexible Integration
Supports connection with various automation architectures
Reliable Performance
Designed for stable operation in industrial environments
Easy Configuration
Simplifies commissioning and parameter adjustment during machine setup
Technical FAQs
1. What motor types are compatible with the ATV320U04M3C?
The ATV320U04M3C supports asynchronous motors and permanent magnet synchronous motors, providing flexibility for different industrial applications.
2. What is the rated motor power of this drive?
The ATV320U04M3C is designed for motor applications with a rated power of 0.37 kW.
3. Does this drive support sensorless vector control?
Yes. The drive provides advanced motor control technology with sensorless vector control capability for improved torque response and speed stability.
4. Can the ATV320U04M3C be used in OEM machine designs?
Yes. It is designed for OEM equipment where compact size, reliable performance, and flexible configuration are required.
5. What communication options are available for this drive series?
The ATV320 platform supports optional communication modules for integration into industrial automation networks.
6. How does this drive improve machine efficiency?
The drive optimizes motor operation by controlling speed and torque according to actual process requirements.
7. Does the ATV320U04M3C include safety functions?
Yes. The ATV320 series provides integrated safety features designed for modern machine automation applications.
8. How are operating parameters configured?
Drive settings can be adjusted through compatible engineering and commissioning tools for application-specific requirements.
9. What protection functions are available in this drive?
The drive includes monitoring and protection functions to help maintain reliable operation during industrial processes.
10. Is this model suitable for continuous industrial operation?
Yes. The ATV320U04M3C is designed for reliable long-term operation in industrial automation environments.
