Brand:Schneider PLC Item No.:ATV320U06M3C Product Origin:France Product Dimensions:72 x 143 x 138 mm Product Weight:1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

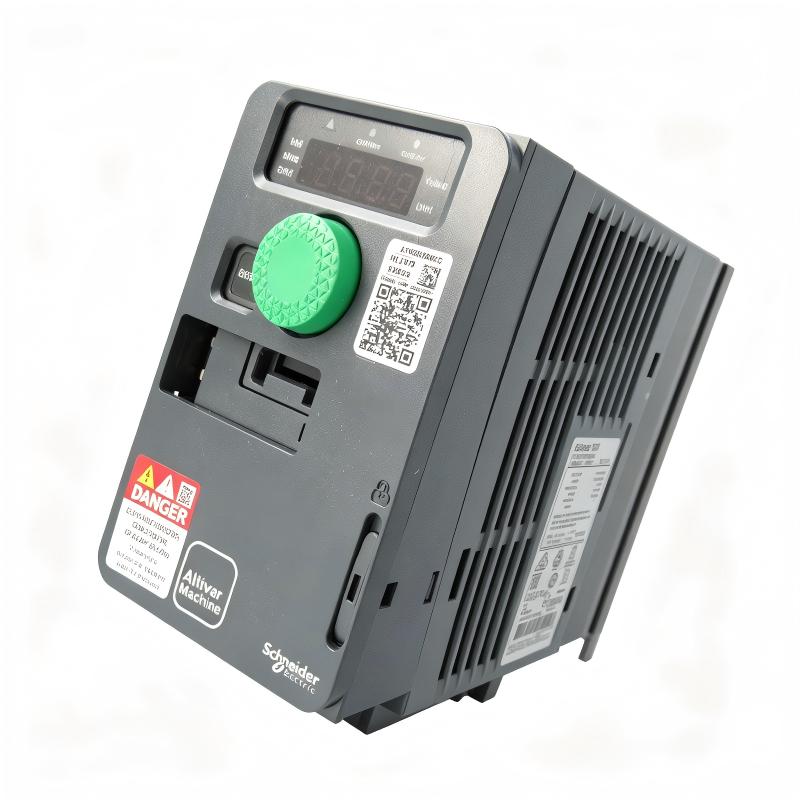

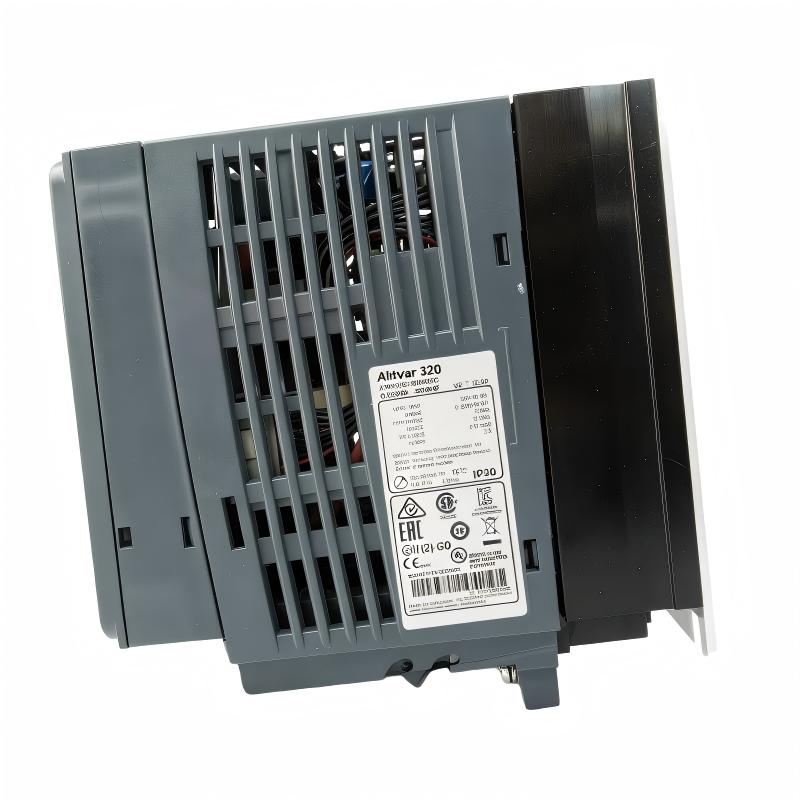

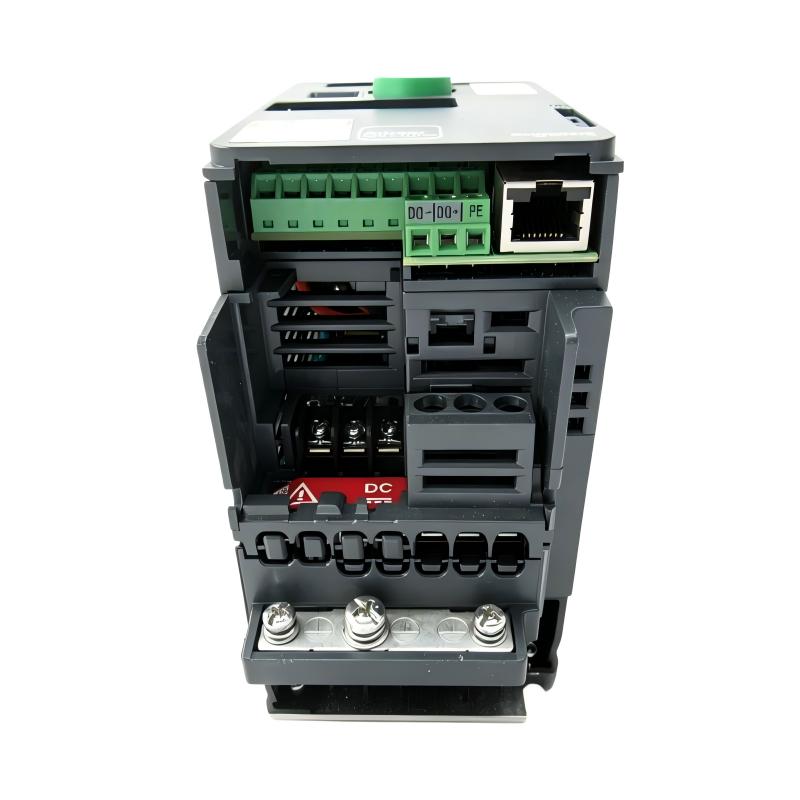

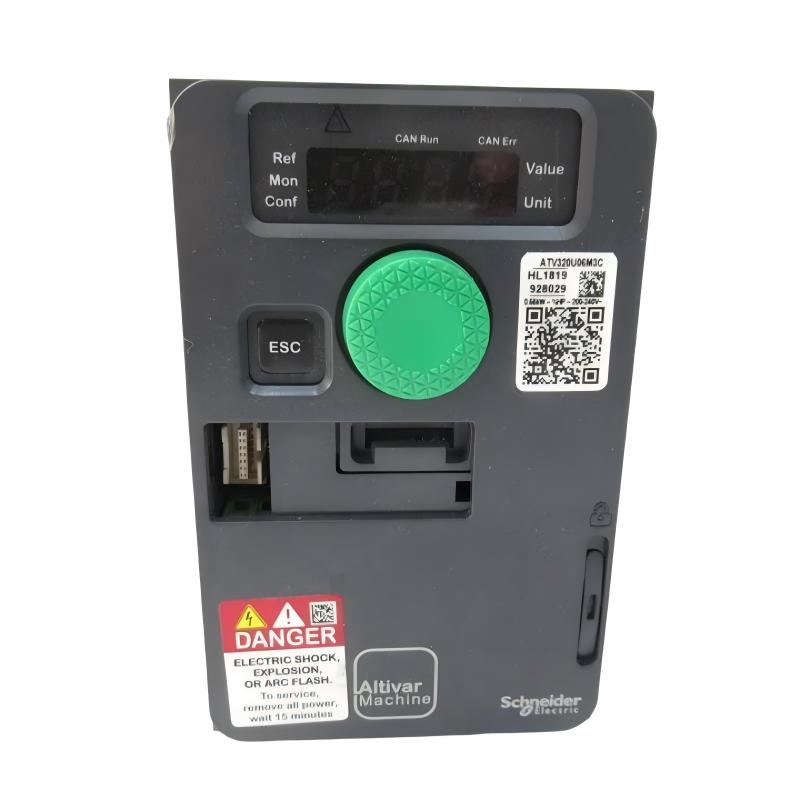

The Schneider ATV320U06M3C Variable-Speed Drive Module delivers dependable motor control performance for modern industrial automation systems. Designed with a focus on efficiency, flexibility, and reliability, this drive provides a practical solution for controlling motors in compact machine designs.
Featuring advanced control functions and a streamlined installation concept, the ATV320U06M3C helps manufacturers improve machine performance, simplify engineering processes, and achieve greater operational efficiency.
Its combination of compact dimensions, intelligent control features, and industrial reliability makes it an excellent choice for OEM equipment builders and automation engineers seeking a high-performance variable-speed drive solution.
Technical Specifications
Specification
Details
Product Model
ATV320U06M3C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
0.55 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Three Phase
Rated Output Current
3.7 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Panel Mounting
Cooling Method
Fanless Cooling
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
72 × 143 × 138 mm
Weight
1.00 kg (2.20 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U04M3C
Variable-Speed Drive Module
Compact drive solution for lower-power industrial motor applications
Schneider ATV320U07M3C
Variable-Speed Drive Module
Higher-capacity option for expanded automation requirements
Schneider ATV320U11M3C
Variable-Speed Drive Module
Flexible drive model for general machine control systems
Popular Related Models
Model
Product Type
Description
Schneider ATV320U15M3C
Variable-Speed Drive Module
Reliable solution for medium-duty industrial automation applications
Schneider ATV320U22M3C
Variable-Speed Drive Module
Advanced compact drive for higher motor performance requirements
Schneider ATV320U30M3C
Variable-Speed Drive Module
Suitable for demanding machine systems requiring increased capacity
Industrial Applications
The Schneider ATV320U06M3C Variable-Speed Drive Module is a compact motor control solution designed for advanced machine automation, industrial equipment, and OEM applications requiring accurate speed management and dependable operation. As part of the Altivar Machine ATV320 series, this drive provides efficient motor regulation, flexible integration, and reliable performance for both standard and complex machine systems.
With its compact architecture and intelligent control capabilities, the ATV320U06M3C helps engineers optimize machine productivity while maintaining smooth and stable motor operation.
Application Field
Typical Uses
Packaging Systems
Automated conveyors, filling equipment, wrapping machines, and production lines
Material Handling
Transfer systems, feeders, positioning equipment, and compact handling machines
Textile Machinery
Speed-controlled processing equipment and production systems
Mechanical Equipment
Industrial machines requiring precise motor control and reliable operation
Pump and Fan Applications
Variable-speed systems focused on efficiency and process optimization
The compact design enables flexible cabinet installation while supporting the performance requirements of modern industrial automation systems.
Advanced Performance Advantages
The Schneider ATV320U06M3C combines efficient motor control technology with a compact design, providing a reliable solution for machine builders and automation professionals.
Advantage
Description
Efficient Space Utilization
Compact dimensions allow installation in limited control cabinet environments
Accurate Speed Control
Provides stable motor regulation for improved machine performance
Advanced Motor Management
Supports precise torque control and smooth operation
Energy Saving Capability
Helps reduce power consumption through optimized motor speed adjustment
Flexible System Integration
Compatible with various industrial automation architectures
Reliable Industrial Design
Built for consistent operation in demanding applications
Technical FAQs
1. What motor types can be controlled by the ATV320U06M3C?
The drive supports both asynchronous motors and permanent magnet synchronous motors for flexible industrial applications.
2. What is the rated motor power of this variable-speed drive?
The ATV320U06M3C is designed for motor applications with a rated power of 0.55 kW.
3. Does the ATV320U06M3C support vector control technology?
Yes. The drive provides advanced sensorless vector control functions to improve torque response and speed stability.
4. What applications are suitable for this drive model?
It is suitable for packaging machines, material handling equipment, mechanical systems, and other industrial automation applications.
5. Can the drive be integrated into automated production systems?
Yes. The ATV320U06M3C is designed for integration into modern machine control architectures.
6. What communication capabilities are supported by this drive series?
The ATV320 platform supports optional communication modules for industrial networking and automation integration.
7. Does this drive provide safety-related functions?
Yes. The ATV320 series includes integrated safety features designed for machine automation requirements.
8. How can engineers configure drive parameters?
Parameters can be adjusted through compatible commissioning and engineering software tools.
9. How does the drive improve motor efficiency?
The drive optimizes motor speed and torque according to operating conditions, improving overall system efficiency.
10. Can the ATV320U06M3C support demanding industrial environments?
Yes. It is designed for reliable operation in industrial applications requiring continuous and stable motor control.
