Brand:Schneider PLC Item No.:ATV320U07S6C Product Origin:France Product Dimensions:105 x 142 x 158 mm Product Weight:1.27 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

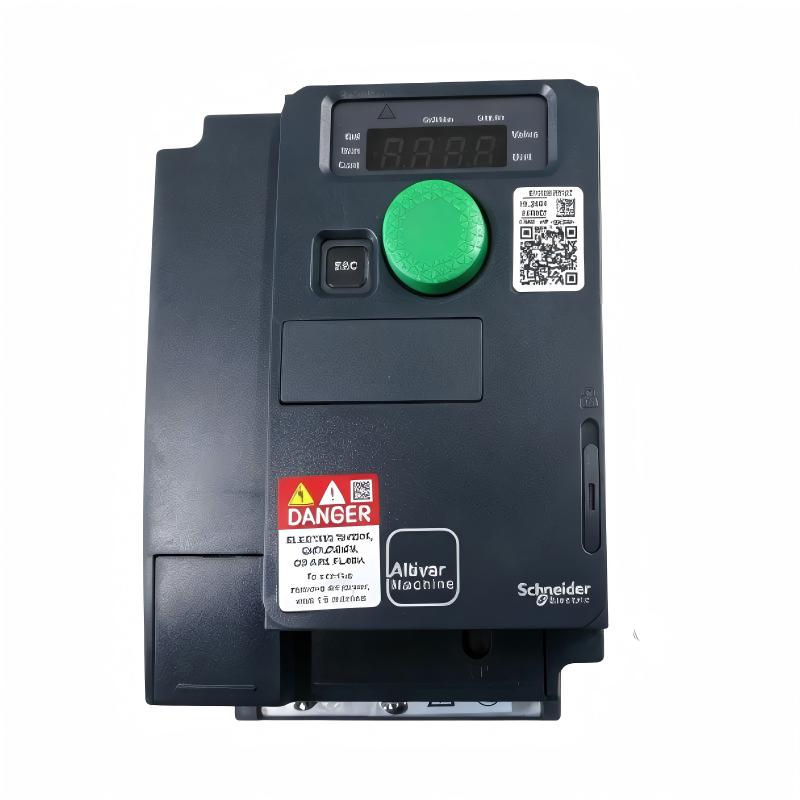

The Schneider ATV320U07S6C Variable-Speed Drive Module delivers efficient and accurate motor control for modern industrial automation systems. Designed with a focus on reliability, flexibility, and performance, this drive helps machine builders create optimized equipment with consistent operational results.
Its advanced motor management capabilities allow precise control of speed and torque, helping improve production efficiency while reducing system complexity. The compact structure and flexible application support make it suitable for a variety of industrial environments.
The ATV320U07S6C is an ideal choice for users who require dependable variable-speed control technology for automation equipment, manufacturing systems, and OEM machine designs.
Technical Specifications
Specification
Details
Product Model
ATV320U07S6C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
0.75 kW
Rated Supply Voltage
525–600 V AC
Phase Configuration
Three Phase
Rated Output Current
1.7 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Panel Mounting
Cooling Method
Integrated Cooling System
Control Technology
Advanced Motor Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
105 × 142 × 158 mm
Weight
1.27 kg (2.80 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U15S6C
Variable-Speed Drive Module
Higher-capacity drive solution for advanced industrial applications
Schneider ATV320U22S6C
Variable-Speed Drive Module
Designed for larger motor control requirements in automation systems
Schneider ATV320U40S6C
Variable-Speed Drive Module
High-performance drive for demanding industrial equipment
Popular Related Models
Model
Product Type
Description
Schneider ATV320U07M3C
Variable-Speed Drive Module
Compact three-phase drive for general automation applications
Schneider ATV320U11M3C
Variable-Speed Drive Module
Reliable motor control solution for industrial machinery
Schneider ATV320U15M3C
Variable-Speed Drive Module
Flexible drive option for medium-duty automation systems
Industrial Applications
The Schneider ATV320U07S6C Variable-Speed Drive Module is a reliable motor control solution designed for industrial automation systems that require precise speed regulation, efficient operation, and stable performance. As part of the Altivar Machine ATV320 family, this drive is developed for machine builders and industrial users who need flexible motor management in high-voltage three-phase applications.
With advanced control functions and a compact installation design, the ATV320U07S6C supports a wide range of automation equipment where productivity, reliability, and efficient motor operation are essential.
Application Field
Typical Uses
Packaging Machinery
Automated conveyors, packaging lines, assembly systems, and processing equipment
Material Handling
Transport systems, feeders, transfer units, and industrial handling machines
Manufacturing Equipment
Machine tools, production machinery, and automated processing systems
Pump and Fan Applications
Variable-speed control systems requiring optimized energy performance
OEM Machine Solutions
Custom automation equipment requiring dependable motor control
The drive provides a practical solution for engineers seeking stable motor performance, simplified integration, and improved machine efficiency.
Key Performance Advantages
The Schneider ATV320U07S6C combines advanced motor control technology with a compact industrial design, helping manufacturers achieve efficient and reliable automation solutions.
Advantage
Description
High-Voltage Industrial Support
Designed for three-phase industrial systems requiring higher voltage operation
Precise Motor Regulation
Provides accurate speed and torque management for smooth machine performance
Compact Installation Design
Helps reduce cabinet space requirements while maintaining strong functionality
Energy Optimization
Improves system efficiency by adjusting motor operation according to application needs
Flexible Integration
Supports connection with various industrial automation architectures
Reliable Operation
Built for consistent performance in demanding industrial environments
Technical FAQs
1. What type of motors are compatible with the ATV320U07S6C?
The drive supports asynchronous motors and permanent magnet synchronous motors, allowing flexible use across different industrial applications.
2. What is the rated motor power of this variable-speed drive?
The ATV320U07S6C is designed for applications requiring a rated motor power of 0.75 kW.
3. What voltage range does this drive support?
This model is designed for three-phase power systems operating within the 525–600 V AC range.
4. Does the ATV320U07S6C support vector control technology?
Yes. The drive provides advanced motor control functions, including sensorless vector control for improved torque response and speed stability.
5. Can this drive be integrated into OEM machines?
Yes. It is suitable for OEM equipment requiring flexible configuration, reliable operation, and efficient motor control.
6. What communication options are available for this drive series?
The ATV320 platform supports optional communication modules for integration with industrial control networks.
7. Does the ATV320U07S6C include safety functions?
Yes. The ATV320 series includes integrated safety features designed to support modern machine automation requirements.
8. How can engineers configure the drive parameters?
Drive settings can be adjusted through compatible commissioning and engineering tools for specific application requirements.
9. What protection features are available in this drive?
The drive includes monitoring and protection functions designed to maintain safe and reliable operation during industrial use.
10. Is the ATV320U07S6C suitable for continuous operation?
Yes. It is designed for long-term industrial applications requiring stable and dependable motor control performance.
