Brand:Schneider PLC Item No.:ATV320U11M2B Product Origin:France Product Dimensions:60 x 325 x 245 mm Product Weight:2.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

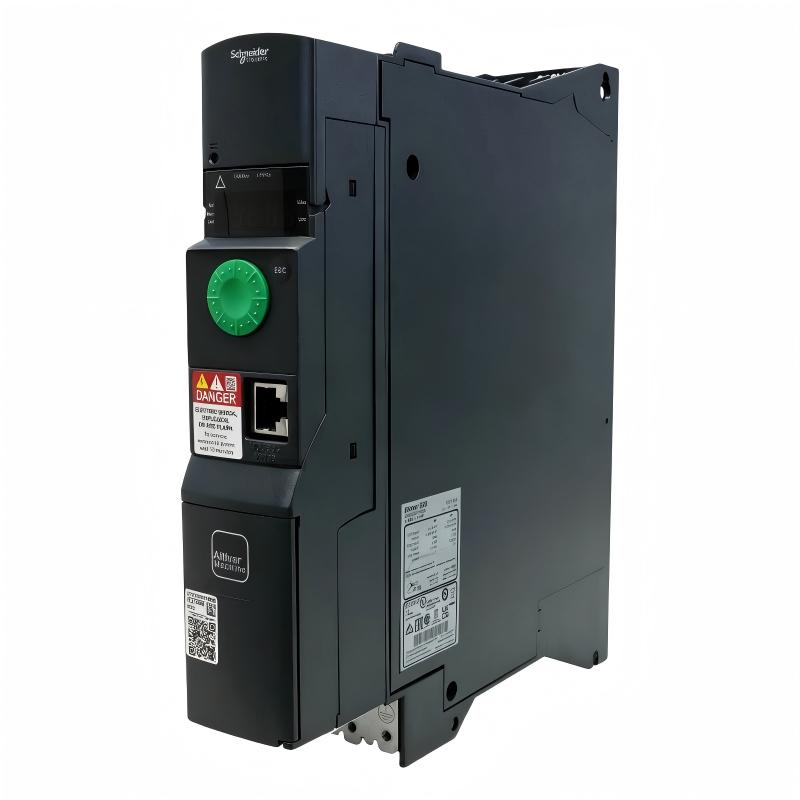

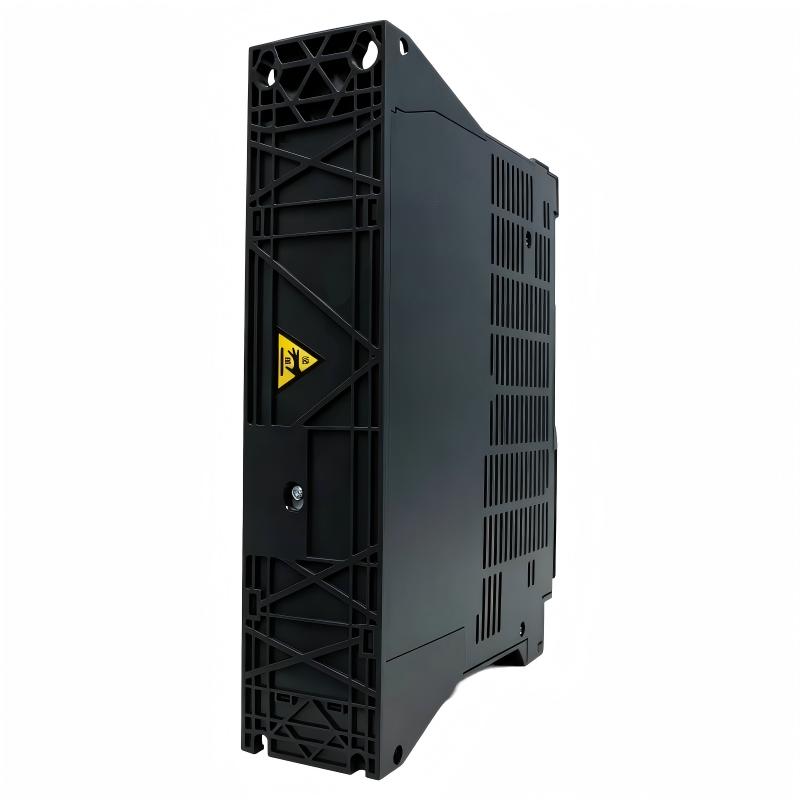

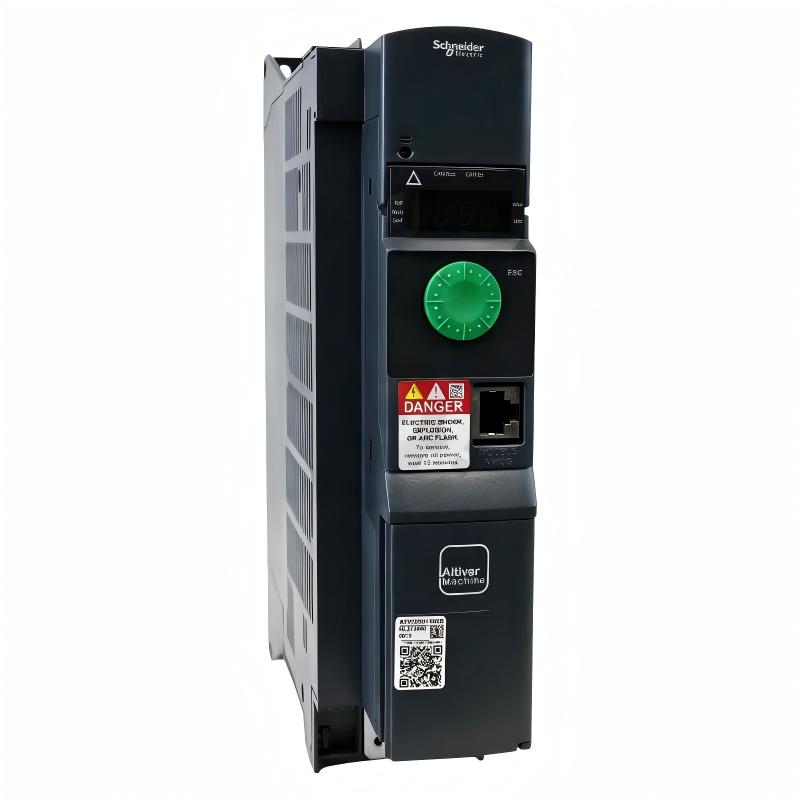

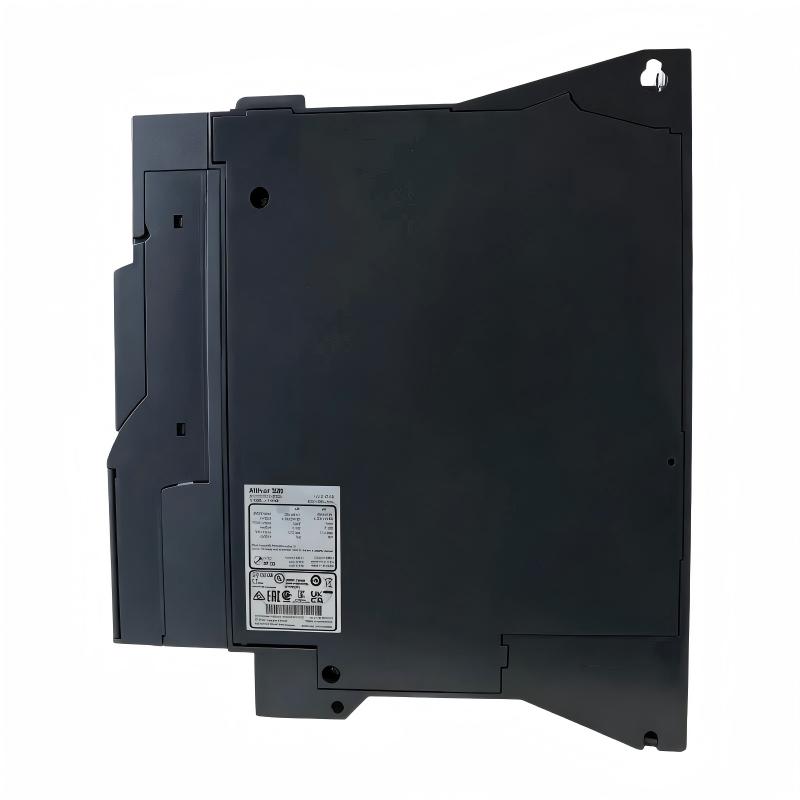

The Schneider ATV320U11M2B Variable-Speed Drive Module delivers efficient and precise motor control for industrial automation applications. Built for machine builders and system integrators, this drive combines reliable performance, flexible configuration, and advanced control capabilities in a compact package.
With intelligent motor management features, the ATV320U11M2B helps improve equipment efficiency, reduce system complexity, and achieve smoother machine operation. Its robust design makes it suitable for applications where dependable motor control and optimized performance are essential.
The ATV320U11M2B is a practical choice for industrial users seeking a high-quality variable-speed drive solution that balances performance, reliability, and installation efficiency.
Technical Specifications
Specification
Details
Product Model
ATV320U11M2B
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
1.1 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Single Phase Input
Output Configuration
Three Phase Motor Output
Rated Output Current
6.9 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Cabinet Mounting
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
60 × 325 × 245 mm
Weight
2.90 kg (6.39 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U07M2B
Variable-Speed Drive Module
Compact drive solution for lower-power single-phase applications
Schneider ATV320U15M2B
Variable-Speed Drive Module
Higher-capacity model for increased machine requirements
Schneider ATV320U22M2B
Variable-Speed Drive Module
Advanced drive solution for larger motor applications
Popular Related Models
Model
Product Type
Description
Schneider ATV320U11M3C
Variable-Speed Drive Module
Three-phase compact drive for general industrial automation
Schneider ATV320U15M3C
Variable-Speed Drive Module
Flexible motor control solution for medium-duty machines
Schneider ATV320U22M3C
Variable-Speed Drive Module
High-performance drive for demanding automation systems
Industrial Applications
The Schneider ATV320U11M2B Variable-Speed Drive Module is a compact and powerful motor control solution designed for industrial machines that require accurate speed regulation, reliable operation, and flexible automation integration. As part of the Altivar Machine ATV320 series, this drive provides efficient control for single-phase power applications while supporting demanding industrial processes.
Designed for OEM equipment and complex machine systems, the ATV320U11M2B delivers stable motor performance, simplified integration, and optimized energy management for a wide range of automation environments.
Application Field
Typical Uses
Packaging Machinery
Automated conveyors, processing lines, filling systems, and production equipment
Material Handling
Transport systems, feeders, positioning units, and handling mechanisms
Industrial Automation
Machine systems requiring accurate speed and torque control
Pump and Fan Control
Variable-speed applications focused on efficiency improvement
OEM Machine Building
Custom automation equipment requiring compact and reliable drive solutions
The drive provides engineers with a flexible solution for improving machine productivity while maintaining consistent motor performance in industrial environments.
High-Performance Advantages
The Schneider ATV320U11M2B combines advanced motor control technology with a compact book-style design, providing an efficient solution for modern automation systems.
Advantage
Description
Powerful Motor Control
Supports reliable operation for higher-capacity industrial motor applications
Compact Cabinet Integration
Book-style design helps optimize installation space
Precise Speed Management
Provides accurate motor regulation for smooth machine operation
Energy Efficiency
Helps reduce energy consumption through optimized motor control
Flexible Connectivity
Supports integration with various industrial automation systems
Reliable Industrial Performance
Designed for stable operation in demanding environments
Technical FAQs
1. What type of motors can the ATV320U11M2B control?
The drive supports asynchronous motors and permanent magnet synchronous motors, providing flexible motor control options for industrial applications.
2. What is the rated motor power of the ATV320U11M2B?
The drive is designed for applications requiring a rated motor power of 1.1 kW.
3. What type of power supply does this drive use?
The ATV320U11M2B is designed for single-phase power supply applications with industrial motor control output.
4. Does this drive support vector control technology?
Yes. The drive provides advanced motor control functions, including sensorless vector control for improved torque performance.
5. Can the ATV320U11M2B be integrated into complex machines?
Yes. It is designed for OEM equipment and automation systems requiring flexible configuration and reliable operation.
6. What communication options are supported by this drive series?
The ATV320 platform supports optional communication modules for integration with industrial fieldbus and automation networks.
7. Does the ATV320U11M2B include safety functions?
Yes. The drive includes integrated safety functions designed to support modern machine safety requirements.
8. How are operating parameters configured on this drive?
Parameters can be adjusted using compatible engineering and commissioning tools for specific application needs.
9. What protection features are available in this drive?
The drive includes monitoring and protection functions to help maintain stable operation under different working conditions.
10. Is this model suitable for continuous industrial applications?
Yes. The ATV320U11M2B is designed for reliable long-term operation in industrial automation environments.
