Brand:Schneider PLC Item No.:ATV320U11M3C Product Origin:France Product Dimensions:105 x 143 x 138 mm Product Weight:1.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

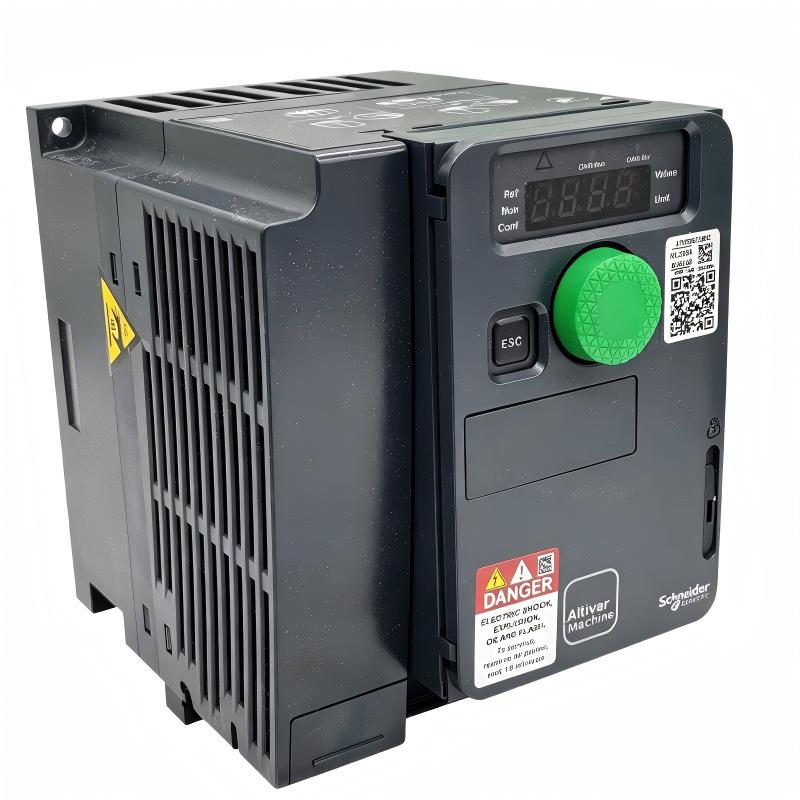

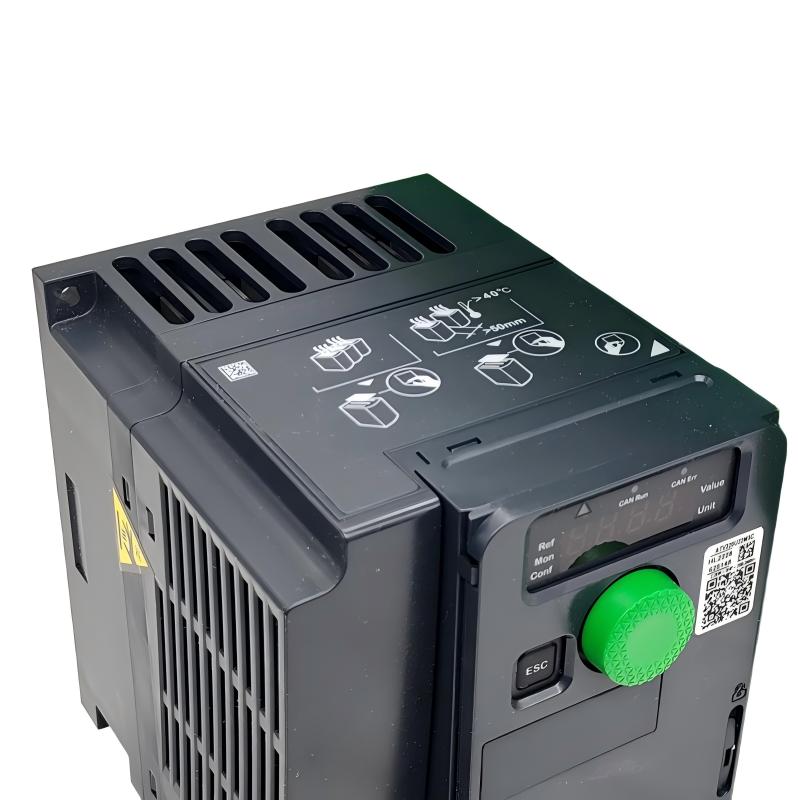

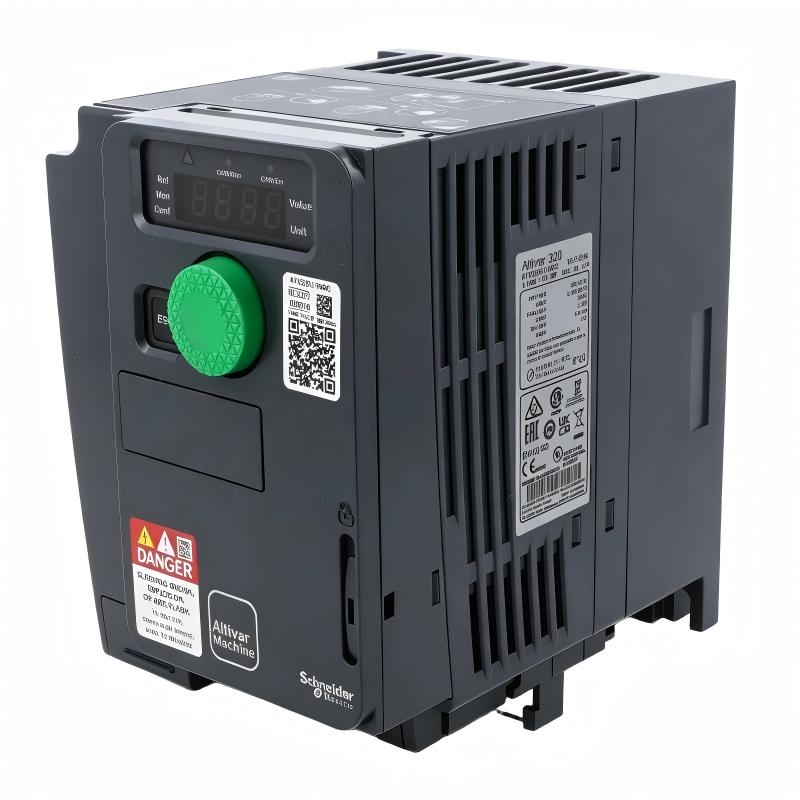

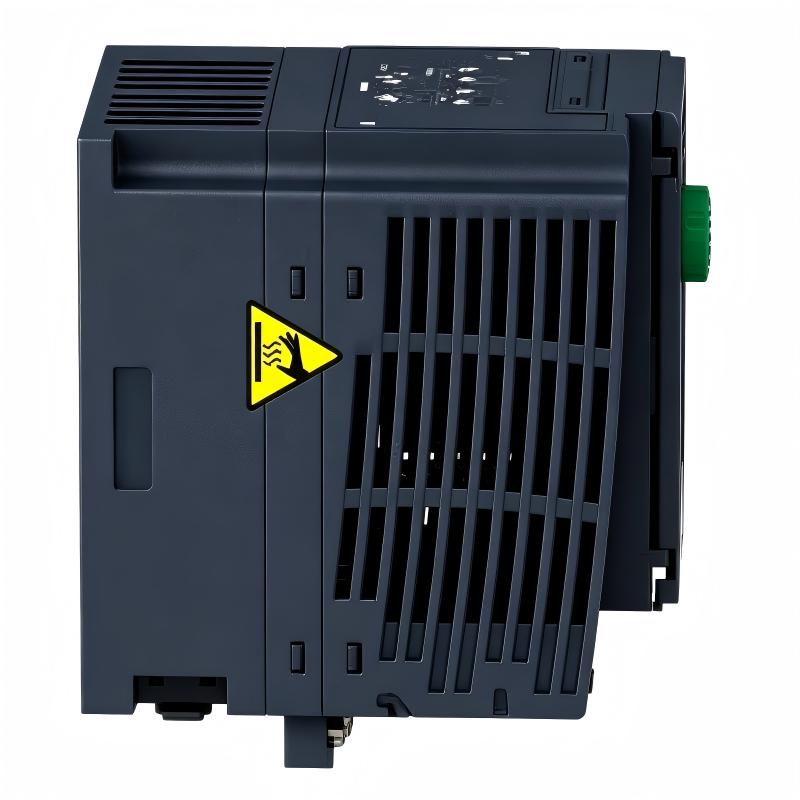

The Schneider ATV320U11M3C Variable-Speed Drive Module delivers reliable and precise motor control for modern industrial automation applications. Designed for machine builders and system integrators, this drive combines compact design, advanced control functions, and dependable performance to meet the needs of demanding equipment.
With intelligent motor management capabilities, the ATV320U11M3C helps optimize machine operation, improve energy efficiency, and reduce system complexity. Its flexible application design makes it suitable for a wide range of industrial environments where accurate motor control is essential.
The ATV320U11M3C represents an effective solution for users seeking a high-performance variable-speed drive that delivers consistent results, efficient operation, and reliable industrial performance.
Technical Specifications
Specification
Details
Product Model
ATV320U11M3C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
1.1 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Three Phase
Rated Output Current
6.9 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Panel Mounting
Cooling Method
Integrated Fan Cooling
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
105 × 143 × 138 mm
Weight
1.40 kg (3.09 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U07M3C
Variable-Speed Drive Module
Compact drive solution for lower-power three-phase motor applications
Schneider ATV320U15M3C
Variable-Speed Drive Module
Higher-capacity drive for medium-duty industrial equipment
Schneider ATV320U22M3C
Variable-Speed Drive Module
Advanced drive solution for applications requiring increased motor capacity
Popular Related Models
Model
Product Type
Description
Schneider ATV320U11M2B
Variable-Speed Drive Module
Single-phase input drive solution for compact industrial systems
Schneider ATV320U15M3C
Variable-Speed Drive Module
Flexible motor control solution for industrial automation equipment
Schneider ATV320U30M3C
Variable-Speed Drive Module
Higher-performance drive for demanding machine applications
Industrial Applications
The Schneider ATV320U11M3C Variable-Speed Drive Module is a compact and efficient motor control solution designed for industrial automation systems, OEM machinery, and production equipment requiring precise speed management and reliable operation. As part of the Altivar Machine ATV320 family, this drive provides advanced motor regulation, flexible integration, and stable performance for a wide range of industrial applications.
Designed for three-phase motor control systems, the ATV320U11M3C helps improve machine efficiency, enhance process stability, and simplify automation system development.
Application Field
Typical Uses
Packaging Machinery
Conveyor systems, automated packaging lines, filling equipment, and assembly machines
Material Handling Systems
Feeders, transfer mechanisms, transport equipment, and positioning applications
Manufacturing Equipment
Processing machines, machine tools, and automated production systems
Pump and Fan Applications
Variable-speed systems requiring efficient motor operation
OEM Automation Solutions
Custom-built machines requiring compact and reliable drive technology
The ATV320U11M3C provides a dependable motor control platform for engineers seeking improved productivity, optimized performance, and long-term operational reliability.
Advanced Performance Advantages
The Schneider ATV320U11M3C combines intelligent motor control technology with a compact industrial design, offering a balanced solution for modern automation requirements.
Advantage
Description
Precise Motor Regulation
Provides accurate speed and torque control for smooth machine operation
Compact Installation Design
Helps reduce control cabinet space requirements while maintaining performance
Efficient Energy Management
Optimizes motor operation to improve overall system efficiency
Flexible Automation Integration
Supports connection with various industrial control architectures
Reliable Industrial Performance
Designed for stable operation in demanding environments
Simplified Machine Development
Helps reduce engineering complexity during system integration
Technical FAQs
1. What motor types are compatible with the ATV320U11M3C?
The drive supports asynchronous motors and permanent magnet synchronous motors, providing flexible motor control options for industrial applications.
2. What is the rated motor power of the ATV320U11M3C?
The drive is designed for applications requiring a rated motor power of 1.1 kW.
3. Does the ATV320U11M3C support advanced motor control functions?
Yes. The drive provides advanced control capabilities, including sensorless vector control for improved torque response and motor stability.
4. Can this drive be used in OEM machine applications?
Yes. It is designed for OEM equipment requiring compact installation, reliable operation, and flexible configuration.
5. What communication options are supported by this drive series?
The ATV320 platform supports optional communication modules for integration with industrial automation networks.
6. How does this drive improve machine performance?
It provides accurate motor speed adjustment and smooth acceleration control, helping improve production efficiency and process stability.
7. Does the ATV320U11M3C include safety functions?
Yes. The drive includes integrated safety features designed to support modern industrial machine requirements.
8. How are parameters configured for different applications?
Operating parameters can be adjusted through compatible engineering and commissioning tools to match specific machine requirements.
9. What protection features are available in this drive?
The drive includes monitoring and protection functions to help maintain reliable operation during industrial processes.
10. Is the ATV320U11M3C suitable for continuous industrial use?
Yes. It is designed for reliable long-term performance in industrial automation environments.
