Brand:Schneider PLC Item No.:ATV320U15M2B Product Origin:France Product Dimensions:60 x 325 x 245 mm Product Weight:2.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

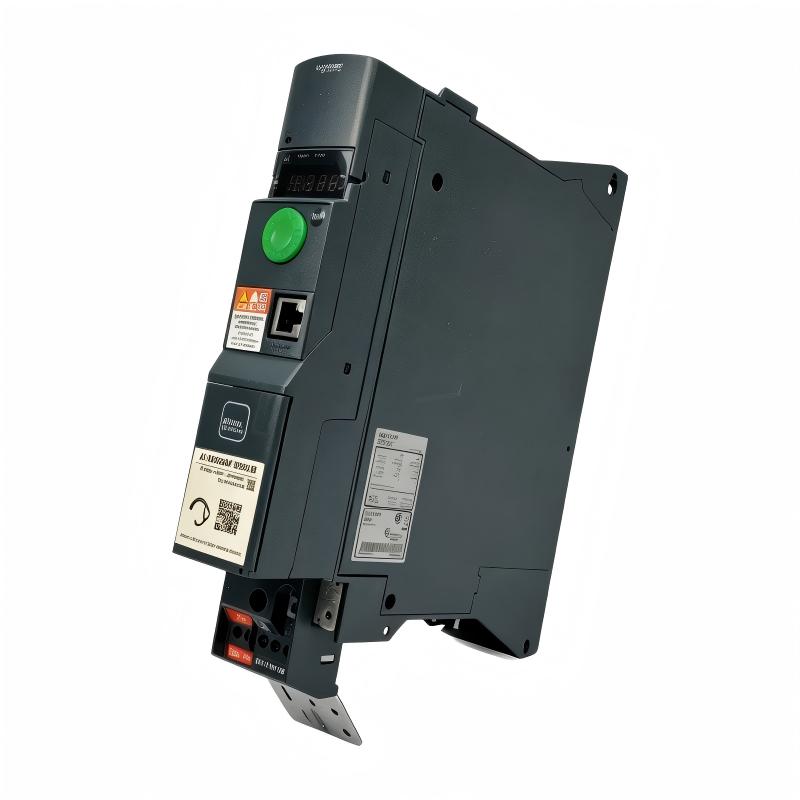

The Schneider ATV320U15M2B Variable-Speed Drive Module delivers efficient and precise motor control for industrial automation systems. Designed for machine builders and system integrators, this drive combines compact installation, advanced control technology, and dependable performance in a versatile industrial solution.
Its intelligent motor management capabilities help improve machine efficiency, enhance process stability, and simplify equipment development. The compact structure allows flexible installation while maintaining reliable operation for demanding industrial applications.
The ATV320U15M2B is an excellent choice for users seeking a high-performance variable-speed drive that delivers consistent motor control, operational efficiency, and reliable automation performance.
Technical Specifications
Specification
Details
Product Model
ATV320U15M2B
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
1.5 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Single Phase Input
Output Configuration
Three Phase Motor Output
Rated Output Current
8.0 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Cabinet Mounting
Cooling Method
Fan Cooling
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
60 × 325 × 245 mm
Weight
2.90 kg (6.39 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U11M2B
Variable-Speed Drive Module
Compact drive solution for lower-power single-phase motor applications
Schneider ATV320U22M2B
Variable-Speed Drive Module
Higher-capacity model for increased motor control requirements
Schneider ATV320U15M3C
Variable-Speed Drive Module
Three-phase alternative for industrial automation systems
Popular Related Models
Model
Product Type
Description
Schneider ATV320U11M3C
Variable-Speed Drive Module
Compact three-phase drive for general industrial machinery
Schneider ATV320U22M3C
Variable-Speed Drive Module
Advanced drive solution for higher-performance automation applications
Schneider ATV320U30M3C
Variable-Speed Drive Module
Powerful drive option for demanding industrial equipment
Industrial Applications
The Schneider ATV320U15M2B Variable-Speed Drive Module is a compact and reliable motor control solution designed for industrial automation systems, OEM machinery, and production equipment requiring accurate speed regulation and efficient motor management. Built for single-phase power applications, this drive delivers stable performance, flexible configuration, and precise control for a wide range of industrial machines.
With its compact book-style design and advanced control capabilities, the ATV320U15M2B helps engineers optimize cabinet space while maintaining excellent motor performance and operational reliability.
Application Field
Typical Uses
Packaging Machinery
Automated conveyors, filling equipment, labeling systems, and production lines
Material Handling Systems
Feeders, transport equipment, transfer mechanisms, and positioning applications
Industrial Processing Equipment
Manufacturing machines requiring stable speed and torque control
Pump and Fan Applications
Variable-speed systems focused on improving operational efficiency
OEM Machine Building
Custom automation equipment requiring compact and dependable drive solutions
The ATV320U15M2B provides a flexible motor control platform for manufacturers seeking improved machine productivity, efficient operation, and long-term reliability.
High-Efficiency Performance Advantages
The Schneider ATV320U15M2B combines advanced motor control functions with a space-saving industrial design, making it a practical solution for modern automation applications.
Advantage
Description
Compact Book-Style Design
Optimizes cabinet installation space while maintaining strong drive performance
Precise Motor Control
Provides accurate speed regulation and stable torque management
Efficient Operation
Helps optimize motor performance and reduce unnecessary energy consumption
Flexible System Integration
Supports connection with various industrial automation architectures
Reliable Industrial Performance
Designed for stable operation in demanding working environments
Simplified Machine Engineering
Helps reduce installation complexity and improve commissioning efficiency
Technical FAQs
1. What motor types are compatible with the ATV320U15M2B?
The drive supports asynchronous motors and permanent magnet synchronous motors, providing flexible solutions for different industrial applications.
2. What is the rated motor power of the ATV320U15M2B?
The ATV320U15M2B is designed for applications requiring a rated motor power of 1.5 kW.
3. What type of power supply does this drive use?
The drive is designed for single-phase input power systems suitable for industrial motor control applications.
4. Does the ATV320U15M2B support advanced motor control technology?
Yes. The drive provides advanced motor control functions, including sensorless vector control for improved torque response and speed stability.
5. Can this drive be used in OEM automation equipment?
Yes. It is designed for OEM machines requiring compact installation, reliable operation, and flexible motor control.
6. What communication options are available for this drive series?
The ATV320 platform supports optional communication modules for integration with industrial automation networks.
7. Does the ATV320U15M2B include safety functions?
Yes. The drive includes integrated safety functions designed to support modern machine automation requirements.
8. How are drive parameters configured?
Parameters can be adjusted through compatible engineering and commissioning tools according to specific application requirements.
9. What protection features are included in this drive?
The drive includes monitoring and protection functions designed to maintain reliable operation during industrial processes.
10. Is the ATV320U15M2B suitable for continuous industrial operation?
Yes. It is designed to provide stable and dependable motor control performance in long-term industrial environments.
