Brand:Schneider PLC Item No.:ATV320U15M3C Product Origin:France Product Dimensions:105 x 143 x 138 mm Product Weight:1.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

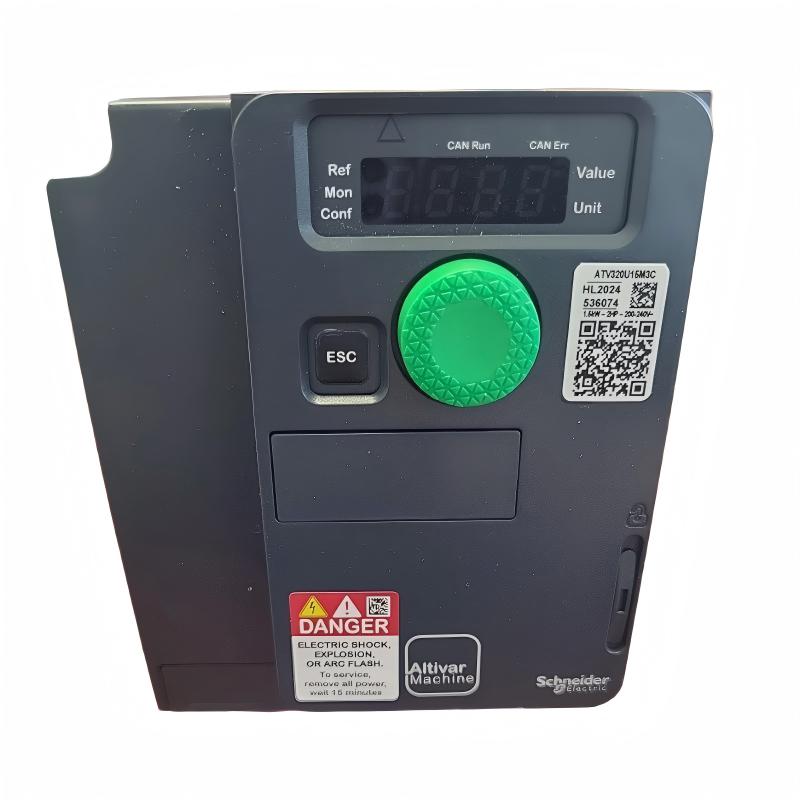

The Schneider ATV320U15M3C Variable-Speed Drive Module delivers reliable and precise motor control for industrial automation applications. Designed for machine builders and system integrators, this drive combines compact construction, intelligent control functions, and dependable performance in a versatile industrial solution.
Its advanced motor management capabilities help improve machine productivity, enhance process stability, and simplify automation system development. The ATV320U15M3C provides efficient speed control and reliable operation for applications where performance and flexibility are essential.
With its balanced combination of functionality, efficiency, and industrial reliability, the ATV320U15M3C is an excellent choice for modern automation equipment and manufacturing systems.
Technical Specifications
Specification
Details
Product Model
ATV320U15M3C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
1.5 kW
Rated Supply Voltage
200–240 V AC
Phase Configuration
Three Phase
Rated Output Current
8.0 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Panel Mounting
Cooling Method
Fan Cooling
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
105 × 143 × 138 mm
Weight
1.40 kg (3.09 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U11M3C
Variable-Speed Drive Module
Compact drive solution for lower-power three-phase motor applications
Schneider ATV320U22M3C
Variable-Speed Drive Module
Higher-capacity drive for increased motor control requirements
Schneider ATV320U30M3C
Variable-Speed Drive Module
Advanced drive solution for demanding industrial applications
Popular Related Models
Model
Product Type
Description
Schneider ATV320U15M2B
Variable-Speed Drive Module
Single-phase input drive solution for compact automation systems
Schneider ATV320U11M3C
Variable-Speed Drive Module
Reliable drive option for general industrial machinery
Schneider ATV320U22M3C
Variable-Speed Drive Module
High-performance drive for advanced machine control applications
Industrial Applications
The Schneider ATV320U15M3C Variable-Speed Drive Module is a compact and efficient motor control solution designed for industrial automation systems, OEM machinery, and production equipment requiring accurate speed regulation and reliable operation. Built for three-phase motor applications, this drive provides stable performance, flexible configuration, and precise control for modern industrial environments.
With advanced motor management capabilities and a space-saving design, the ATV320U15M3C helps engineers improve machine efficiency, optimize system performance, and achieve reliable automation control.
Application Field
Typical Uses
Packaging Machinery
Automated conveyors, filling systems, assembly equipment, and production lines
Material Handling Systems
Transport equipment, feeders, positioning units, and transfer mechanisms
Industrial Machinery
Processing equipment, machine tools, and automated production systems
Pump and Fan Applications
Variable-speed systems requiring efficient motor control
OEM Machine Solutions
Custom automation equipment requiring compact and dependable drive technology
The ATV320U15M3C provides a reliable motor control platform for manufacturers seeking improved productivity, simplified integration, and consistent machine performance.
Advanced Performance Advantages
The Schneider ATV320U15M3C combines advanced drive technology with a compact industrial design, offering an effective solution for demanding automation applications.
Advantage
Description
Precise Motor Regulation
Provides accurate speed and torque control for smooth machine operation
Compact Installation Design
Reduces cabinet space requirements while maintaining powerful control capability
Efficient Energy Management
Optimizes motor operation to improve overall system efficiency
Flexible Integration
Supports connection with various industrial automation architectures
Reliable Industrial Performance
Designed for stable operation in demanding environments
Simplified Commissioning
Helps reduce setup complexity and improve machine development efficiency
Technical FAQs
1. What motor types are compatible with the ATV320U15M3C?
The drive supports asynchronous motors and permanent magnet synchronous motors, providing flexible motor control options for different industrial applications.
2. What is the rated motor power of the ATV320U15M3C?
The ATV320U15M3C is designed for applications requiring a rated motor power of 1.5 kW.
3. What type of power supply does this drive require?
The drive is designed for three-phase 200–240 V AC power systems used in industrial motor control applications.
4. Does the ATV320U15M3C support advanced motor control technology?
Yes. The drive provides advanced motor control functions, including sensorless vector control for improved torque response and speed stability.
5. Can this drive be integrated into OEM machinery?
Yes. It is designed for OEM equipment requiring compact installation, reliable operation, and flexible configuration.
6. What communication options are supported by this drive series?
The ATV320 platform supports optional communication modules for integration with industrial automation networks.
7. Does the ATV320U15M3C include safety functions?
Yes. The drive includes integrated safety functions designed to support modern machine automation requirements.
8. How can engineers configure the drive parameters?
Drive settings can be adjusted through compatible engineering and commissioning tools to match different application requirements.
9. What protection features are available in this drive?
The drive includes monitoring and protection functions designed to maintain safe and reliable operation during industrial processes.
10. Is the ATV320U15M3C suitable for continuous industrial operation?
Yes. It is designed to provide stable and dependable motor control performance in long-term industrial environments.
