Brand:Schneider PLC Item No.:ATV320U15S6C Product Origin:France Product Dimensions:105 x 142 x 158 mm Product Weight:1.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

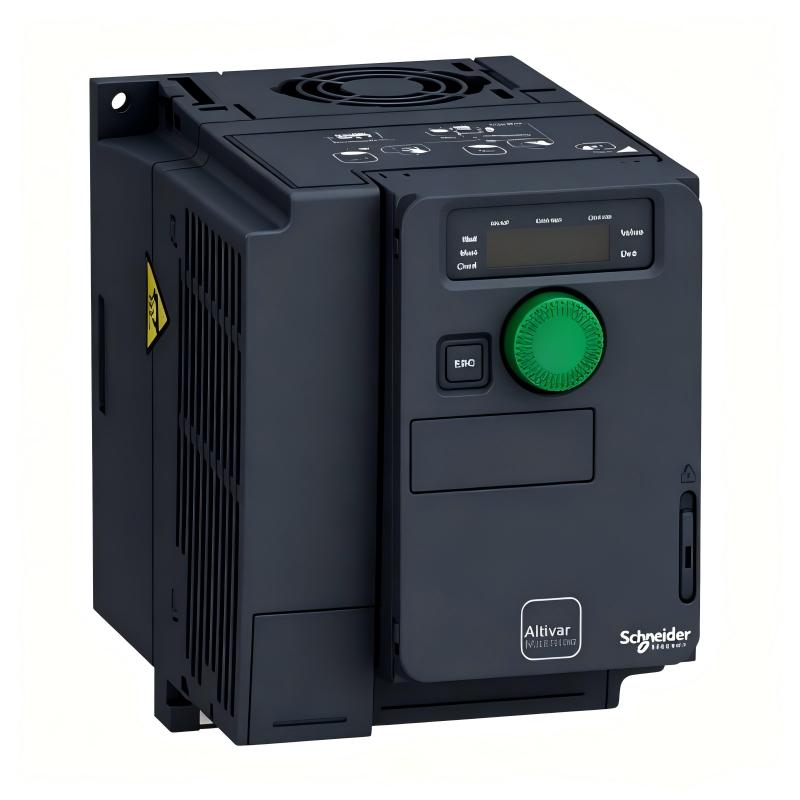

The Schneider ATV320U15S6C Variable-Speed Drive Module delivers efficient and accurate motor control for industrial automation systems requiring high reliability and flexible performance. Designed for machine builders and system integrators, this drive combines advanced control technology with a compact design to support modern industrial applications.
The ATV320U15S6C helps improve equipment productivity by providing smooth motor operation, optimized speed management, and reliable system integration. Its robust design and intelligent features make it suitable for applications where performance, efficiency, and operational stability are critical.
With a strong balance of functionality and industrial reliability, the ATV320U15S6C is an excellent choice for advanced machine automation and motor control applications.
Technical Specifications
Specification
Details
Product Model
ATV320U15S6C
Product Type
Variable-Speed Drive Module
Product Series
Altivar Machine ATV320
Rated Motor Power
1.5 kW
Rated Supply Voltage
525–600 V AC
Phase Configuration
Three Phase
Rated Output Current
2.7 A
Input Frequency
50/60 Hz
Protection Rating
IP20
Mounting Type
Wall Mounting
Cooling Method
Fanless Cooling
Control Technology
Sensorless Vector Control
Communication Capability
Optional Communication Modules Supported
Motor Compatibility
Asynchronous Motors and Permanent Magnet Motors
Dimensions (W × H × D)
105 × 142 × 158 mm
Weight
1.29 kg (2.84 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV320U07S6C
Variable-Speed Drive Module
Compact high-voltage drive for lower-power industrial applications
Schneider ATV320U22S6C
Variable-Speed Drive Module
Higher-capacity solution for increased motor control requirements
Schneider ATV320U40S6C
Variable-Speed Drive Module
Advanced drive option for larger industrial automation systems
Popular Related Models
Model
Product Type
Description
Schneider ATV320U15M3C
Variable-Speed Drive Module
Three-phase compact drive for general industrial automation
Schneider ATV320U22M3C
Variable-Speed Drive Module
Reliable drive solution for higher-performance machine systems
Schneider ATV320U15M2B
Variable-Speed Drive Module
Single-phase input drive for compact automation applications
Industrial Applications
The Schneider ATV320U15S6C Variable-Speed Drive Module is a compact and high-performance motor control solution designed for industrial automation systems, OEM machinery, and advanced production equipment. Built for three-phase high-voltage applications, this drive delivers precise motor regulation, reliable operation, and flexible integration capabilities for demanding industrial environments.
With its advanced control functions and compact structure, the ATV320U15S6C helps improve machine efficiency, optimize motor performance, and support reliable automation processes across various industries.
Application Field
Typical Uses
Packaging Machinery
Automated packaging lines, conveyors, filling systems, and assembly equipment
Material Handling Systems
Transport mechanisms, feeders, lifting equipment, and positioning systems
Industrial Processing Equipment
Production machinery requiring accurate speed and torque control
Pump and Fan Applications
Variable-speed systems focused on efficient motor operation
The ATV320U15S6C provides a flexible and reliable motor control platform for manufacturers seeking improved productivity, reduced operational complexity, and long-term system stability.
Enhanced Performance Advantages
The Schneider ATV320U15S6C combines intelligent motor control technology with a compact industrial design, providing an efficient solution for modern automation requirements.
Advantage
Description
High-Voltage Compatibility
Designed for industrial systems requiring 525–600 V three-phase power operation
Precise Motor Control
Provides accurate speed regulation and stable torque management
Compact Installation
Helps optimize control cabinet space while maintaining reliable performance
Efficient Energy Management
Supports optimized motor operation to improve system efficiency
Flexible Communication Support
Enables integration with different industrial automation architectures
Reliable Industrial Design
Built for continuous operation in demanding machine environments
Technical FAQs
1. What motor types are compatible with the ATV320U15S6C?
The drive supports asynchronous motors and permanent magnet synchronous motors, allowing flexible application across various industrial systems.
2. What is the rated motor power of the ATV320U15S6C?
The ATV320U15S6C is designed for applications requiring a rated motor power of 1.5 kW.
3. What voltage range does this drive support?
The drive is designed for three-phase 525–600 V AC industrial power systems.
4. Does the ATV320U15S6C support advanced motor control functions?
Yes. It provides advanced motor control capabilities, including sensorless vector control for improved torque response and speed stability.
5. Can this drive be integrated into OEM automation equipment?
Yes. It is suitable for OEM machinery requiring compact installation, reliable operation, and flexible configuration.
6. What communication options are available for this drive series?
The ATV320 platform supports optional communication modules for integration with industrial automation networks.
7. Does the ATV320U15S6C include machine safety functions?
Yes. The drive includes integrated safety features designed to support modern industrial machine requirements.
8. How does the drive improve motor operation efficiency?
It adjusts motor speed and torque according to application requirements, helping optimize energy usage and machine performance.
9. What control methods are supported by this variable-speed drive?
The drive supports multiple motor control methods, including frequency control and vector-based motor regulation.
10. Is the ATV320U15S6C suitable for demanding industrial environments?
Yes. It is designed to provide stable and reliable motor control performance in long-term industrial applications.
