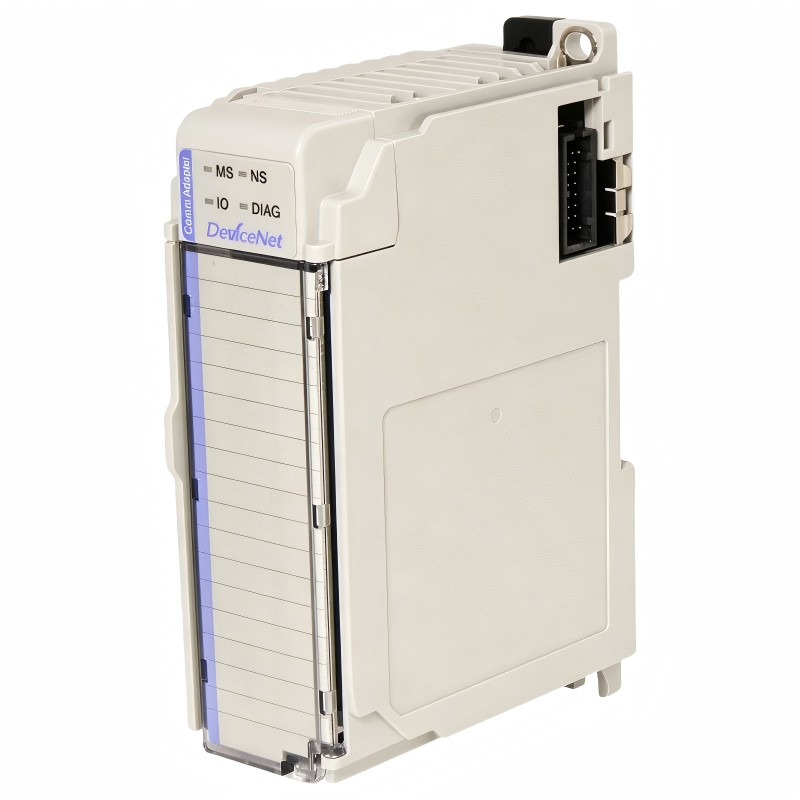

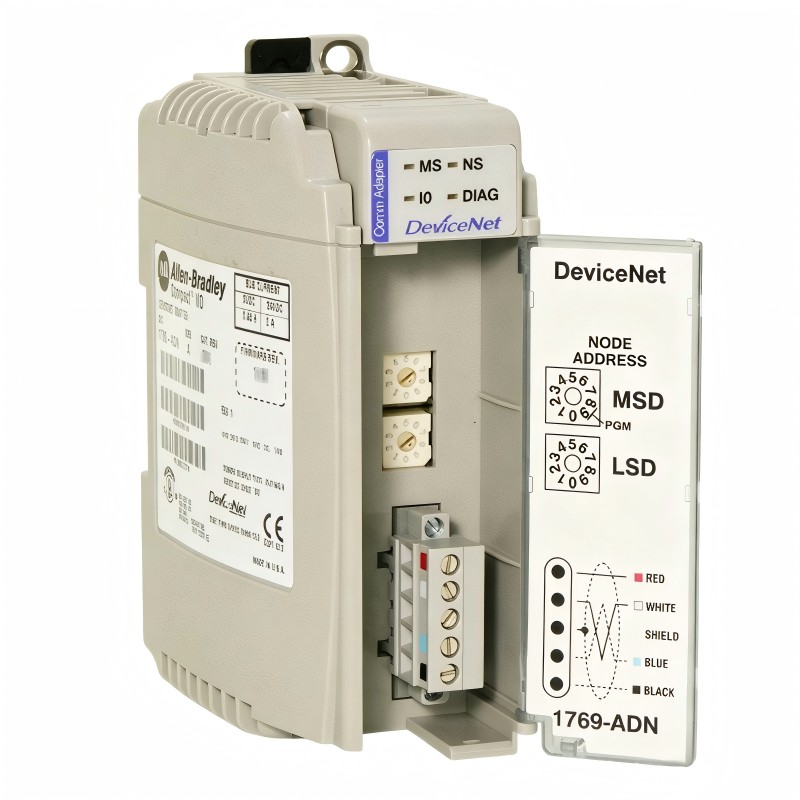

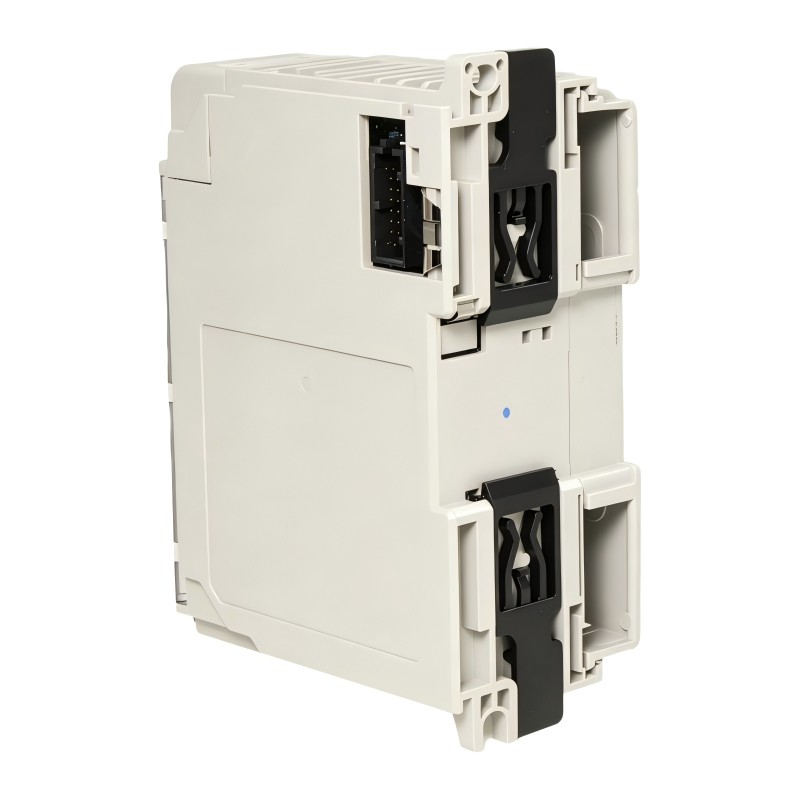

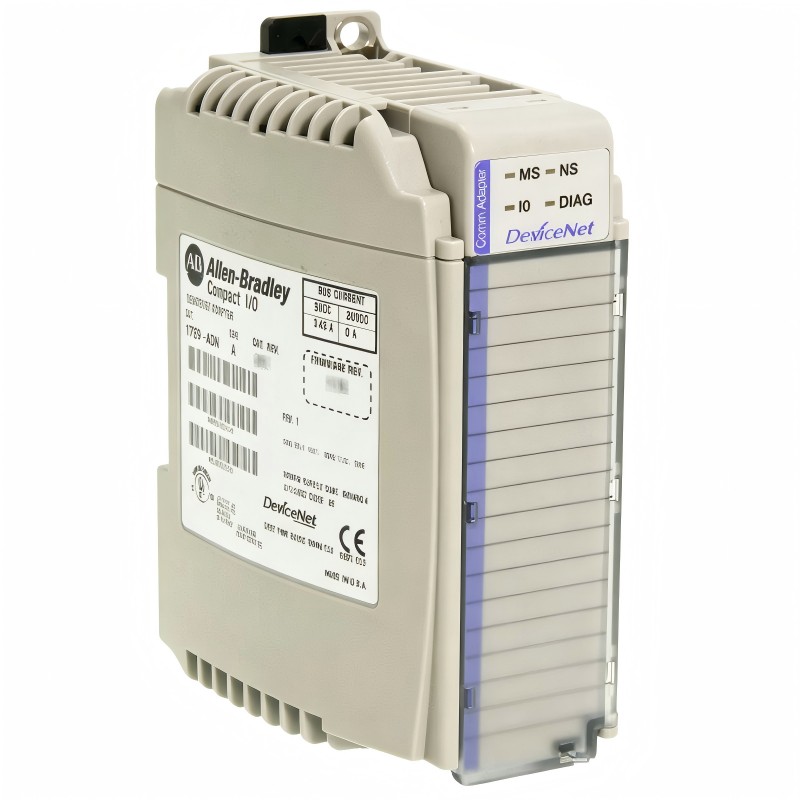

Allen Bradley 1769-ADN/A CompactLogix Compact I/O DeviceNet Adapter Module
Allen Bradley 1769-ADN/A CompactLogix Compact I/O DeviceNet Adapter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-ADN/A Product Origin:USA Product Dimensions:118 x 87 x 50 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-ADN CompactLogix Compact I/O DeviceNet Adapter Module provides an efficient communication solution for industrial control systems requiring reliable remote I/O connectivity. Designed for automation engineers and machine builders, this module enables seamless integration between Compact I/O platforms and DeviceNet networks.
With its compact form factor, flexible configuration options, and dependable communication performance, the 1769-ADN helps reduce system complexity while improving automation flexibility.
This adapter module is a practical choice for industrial users seeking stable network communication and efficient distributed I/O management.
Technical Specifications
Specification
Details
Product Model
1769-ADN
Product Type
CompactLogix Compact I/O DeviceNet Adapter Module
Product Series
Compact I/O
Communication Network
DeviceNet
Communication Data Rate
125 kbps / 250 kbps / 500 kbps
I/O Capacity
Supports Compatible Compact I/O Modules
DeviceNet Power Requirement
24V DC
Backplane Current Draw
500 mA at 5V DC Maximum
Power Dissipation
4.7 W Maximum
Communication Interface
DeviceNet Port
Mounting Type
DIN Rail or Panel Mounting
Module Status Indicators
Network, Module, I/O, Diagnostic Status
Enclosure Type
Open Style
Dimensions (W × H × D)
118 × 87 × 50 mm
Weight
0.28 kg (0.62 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 1769-SDN
CompactLogix DeviceNet Scanner Module
DeviceNet communication module for CompactLogix controller systems
Allen Bradley 1769-IF4
Compact I/O Analog Input Module
Analog input expansion module for Compact I/O systems
Allen Bradley 1769-OB16
Compact I/O Digital Output Module
Digital output expansion module for industrial control applications
Popular Related Models
Model
Product Type
Description
Allen Bradley 1769-AENTR
Compact I/O Ethernet Adapter Module
Ethernet-based remote I/O communication solution
Allen Bradley 1769-PA4
Compact I/O Power Supply Module
Power supply solution for Compact I/O configurations
Allen Bradley 1769-L33ER
CompactLogix Controller Module
Compact automation controller for industrial applications
Industrial Applications
The Allen Bradley 1769-ADN CompactLogix Compact I/O DeviceNet Adapter Module is a reliable communication interface designed to connect Compact I/O systems with DeviceNet networks in industrial automation environments. This module provides efficient remote I/O connectivity, allowing distributed control systems to communicate smoothly with field devices and automation equipment.
Designed for machine builders and system integrators, the 1769-ADN helps simplify network architecture, improve system flexibility, and provide dependable data exchange between controllers and remote I/O modules.
Application Field
Typical Uses
Remote I/O Systems
Distributed I/O control and field device communication
Machine Automation
Automated production equipment and standalone machine systems
The 1769-ADN provides a practical solution for expanding automation systems while maintaining stable communication performance and efficient system management.
Flexible Communication Advantages
The Allen Bradley 1769-ADN Compact I/O DeviceNet Adapter Module combines compact installation with reliable network communication capabilities, making it suitable for industrial automation applications requiring efficient remote I/O management.
Advantage
Description
DeviceNet Network Integration
Enables communication between Compact I/O modules and DeviceNet-based control systems
Compact Installation Design
Saves cabinet space while providing reliable automation connectivity
Remote I/O Capability
Supports distributed control architectures for flexible system layouts
Efficient Data Exchange
Provides stable communication between controllers and field devices
Easy System Expansion
Allows additional I/O modules to be integrated into automation networks
Industrial Reliability
Designed for continuous operation in demanding industrial environments
Technical FAQs
1. What is the primary function of the 1769-ADN module?
The 1769-ADN functions as a DeviceNet adapter that connects Compact I/O modules to DeviceNet communication networks.
2. What type of network does the 1769-ADN support?
The module supports DeviceNet communication for industrial automation and remote I/O applications.
3. Can the 1769-ADN be used with CompactLogix systems?
Yes. The module is designed for integration with CompactLogix and Compact I/O automation platforms.
4. How many I/O modules can be connected through this adapter?
The module supports expansion with multiple compatible Compact I/O modules for distributed control applications.
5. What communication speeds are supported by the 1769-ADN?
The module supports standard DeviceNet communication rates including 125 kbps, 250 kbps, and 500 kbps.
6. Can this module be used for remote I/O applications?
Yes. It is specifically designed to provide remote I/O communication capability within DeviceNet networks.
7. What configuration software is used for this module?
The module can be configured using compatible industrial automation configuration and programming software.
8. Does the 1769-ADN support diagnostic functions?
Yes. The module provides status indicators and diagnostic information to assist with system monitoring and troubleshooting.
9. Is the 1769-ADN suitable for OEM machines?
Yes. Its compact structure and communication flexibility make it suitable for OEM equipment and automation systems.
10. Can the module operate in industrial environments?
Yes. The module is designed for reliable operation in industrial automation applications with demanding operating conditions.
