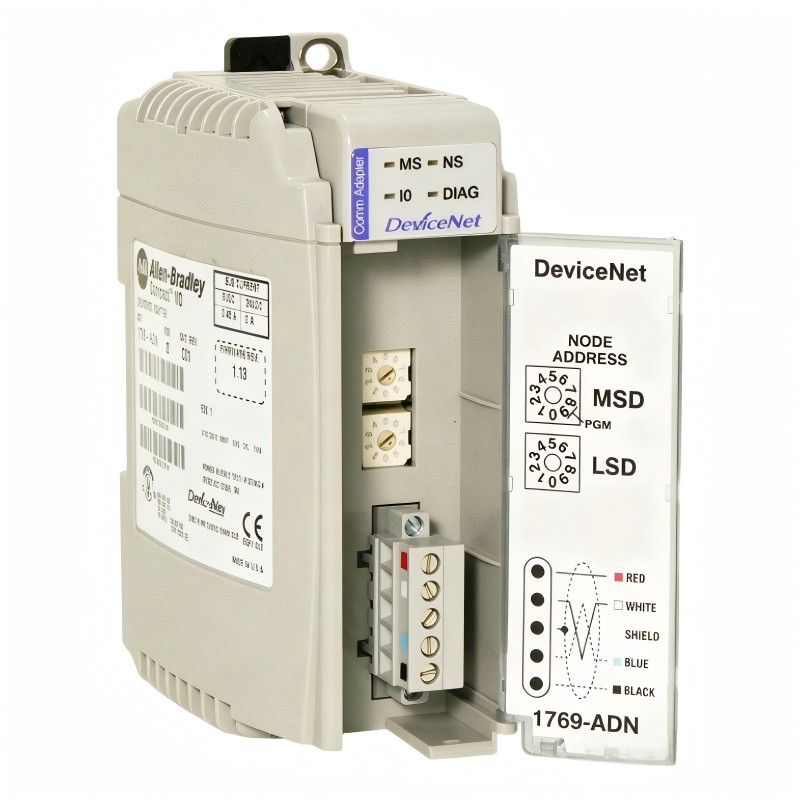

Allen Bradley 1769-ADN/B CompactLogix Compact I/O DeviceNet Adapter Module
Allen Bradley 1769-ADN/B CompactLogix Compact I/O DeviceNet Adapter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-ADN/B Product Origin:USA Product Dimensions:118 x 87 x 50 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-ADN/B CompactLogix Compact I/O DeviceNet Adapter Module provides a practical solution for connecting distributed I/O systems within industrial automation networks. Designed for efficient communication and flexible system layouts, this module helps engineers build reliable control architectures with reduced wiring complexity.
With its compact design, stable DeviceNet communication, and compatibility with Compact I/O systems, the 1769-ADN/B supports efficient machine development and improved automation performance.
This adapter module is an ideal choice for industrial applications requiring dependable remote I/O connectivity and flexible control system expansion.
Technical Specifications
Specification
Details
Product Model
1769-ADN/B
Product Type
CompactLogix Compact I/O DeviceNet Adapter Module
Product Series
Compact I/O
Communication Network
DeviceNet
Communication Data Rate
125 kbps / 250 kbps / 500 kbps
Compatible Platform
CompactLogix Compact I/O System
I/O Capacity
Supports Compatible Compact I/O Modules
DeviceNet Power Requirement
24V DC
Backplane Current Draw
500 mA at 5V DC
Power Dissipation
4.7 W Maximum
Communication Interface
DeviceNet Port
Status Indicators
Module, Network, I/O, Diagnostic Status
Mounting Type
DIN Rail or Panel Mounting
Enclosure Type
Open Style
Dimensions (W × H × D)
118 × 87 × 50 mm
Weight
0.28 kg (0.62 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 1769-SDN
CompactLogix DeviceNet Scanner Module
Provides DeviceNet communication capability for CompactLogix systems
Allen Bradley 1769-AENTR
Compact I/O Ethernet Adapter Module
Ethernet-based remote I/O communication solution
Allen Bradley 1769-PA4
Compact I/O Power Supply Module
Power supply solution for Compact I/O configurations
Popular Related Models
Model
Product Type
Description
Allen Bradley 1769-L33ER
CompactLogix Controller Module
Compact automation controller for industrial applications
Allen Bradley 1769-IF4
Compact I/O Analog Input Module
Analog signal acquisition module for industrial control systems
Allen Bradley 1769-OB16
Compact I/O Digital Output Module
Digital output expansion module for automation equipment
Industrial Applications
The Allen Bradley 1769-ADN/B CompactLogix Compact I/O DeviceNet Adapter Module is a compact and reliable communication interface designed for distributed industrial automation systems. It provides a connection between Compact I/O modules and DeviceNet networks, enabling efficient remote I/O management and flexible system expansion.
Designed for machine builders, system integrators, and industrial automation engineers, the 1769-ADN/B helps simplify control architectures by allowing field devices and I/O modules to communicate effectively within a distributed automation environment.
Application Field
Typical Uses
Machine Automation
Automated production equipment, assembly machines, and standalone control systems
Remote I/O Networks
Distributed I/O control and field device communication applications
Packaging Equipment
Packaging lines, inspection systems, and automated processing machines
Material Handling
Conveyor systems, sorting equipment, and transfer applications
The 1769-ADN/B provides an efficient communication solution for industrial users requiring stable network integration, flexible configuration, and dependable automation performance.
Flexible Communication Advantages
The Allen Bradley 1769-ADN/B CompactLogix Compact I/O DeviceNet Adapter Module combines compact installation with reliable network communication, making it an effective choice for modern industrial control systems.
Advantage
Description
DeviceNet Connectivity
Enables communication between Compact I/O systems and DeviceNet-based networks
Compact Installation
Saves control cabinet space while maintaining reliable communication performance
Distributed I/O Support
Allows flexible placement of I/O modules closer to field devices
Efficient Data Exchange
Provides stable communication between controllers and remote I/O equipment
Easy System Expansion
Supports additional Compact I/O modules for scalable automation solutions
Reliable Industrial Operation
Designed for continuous use in demanding automation environments
Technical FAQs
1. What is the main function of the 1769-ADN/B module?
The 1769-ADN/B functions as a DeviceNet adapter module that connects Compact I/O systems with DeviceNet communication networks.
2. What type of network does the 1769-ADN/B support?
The module supports DeviceNet communication for distributed industrial automation applications.
3. Can the 1769-ADN/B be used with CompactLogix systems?
Yes. It is designed for use with CompactLogix and Compact I/O automation platforms.
4. How does this module improve automation system design?
It enables distributed I/O architectures, allowing control components to be positioned closer to field devices.
5. What communication speeds are supported by the 1769-ADN/B?
The module supports DeviceNet communication rates of 125 kbps, 250 kbps, and 500 kbps.
6. Can the module support multiple Compact I/O modules?
Yes. The adapter supports connection with compatible Compact I/O expansion modules for larger control systems.
7. What software is used for configuring the 1769-ADN/B?
The module can be configured using compatible industrial automation configuration tools and programming software.
8. Does the 1769-ADN/B provide diagnostic functions?
Yes. The module includes status indicators for monitoring network communication, module operation, and system conditions.
9. Is the 1769-ADN/B suitable for OEM machinery?
Yes. Its compact structure and flexible communication capability make it suitable for OEM automation equipment.
10. Can this module operate in industrial environments?
Yes. It is designed to provide reliable communication performance in industrial automation applications.
