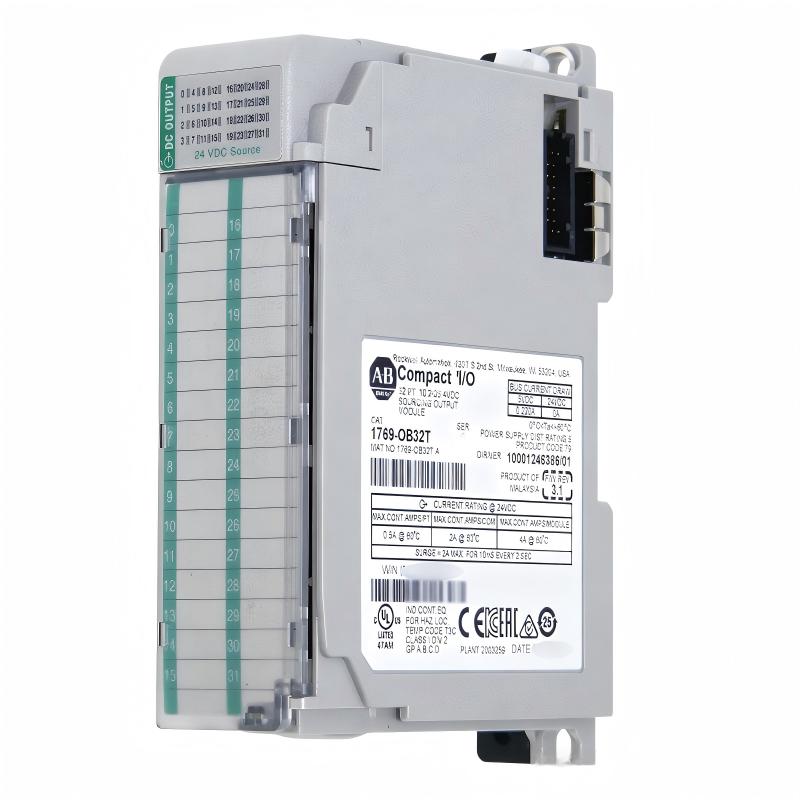

Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module
Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-OB32T Product Origin:USA Product Dimensions:118 x 35 x 87 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module provides a reliable and efficient solution for industrial digital output control applications. Designed for automation engineers and machine manufacturers, this module delivers high-density output capability while maintaining a compact footprint.
Its flexible architecture allows seamless integration into CompactLogix control systems, helping users improve machine functionality, optimize panel space, and simplify automation design.
The 1769-OB32T is an ideal choice for industrial applications requiring dependable DC output management, efficient system expansion, and consistent control performance.
Technical Specifications
Specification
Details
Product Model
1769-OB32T
Product Type
CompactLogix 32-Point DC Power Output Module
Product Series
CompactLogix Compact I/O
Output Type
24V DC Digital Output
Number of Output Points
32 Points
Output Signal Range
10.2–26.4V DC
Output Configuration
Solid-State Transistor Output
Maximum Current per Output
0.5 A
Maximum Module Current
4 A
Isolation Voltage
1200V AC
Compatible Platform
CompactLogix Automation System
Mounting Type
DIN Rail or Panel Mounting
Status Indicators
Module and Output Status Monitoring
Enclosure Type
Open Style
Dimensions (W × H × D)
118 × 35 × 87 mm
Weight
0.23 kg (0.51 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 1769-OB16
CompactLogix Digital Output Module
Compact 16-point DC output solution for industrial control applications
Allen Bradley 1769-OB32
CompactLogix 32-Point DC Output Module
High-density digital output module for automation systems
Allen Bradley 1769-IB32
CompactLogix Digital Input Module
32-point input expansion module for machine control systems
Popular Related Models
Model
Product Type
Description
Allen Bradley 1769-OV32T
CompactLogix Digital Output Module
32-point DC sinking output solution for automation applications
Allen Bradley 1769-IQ32
CompactLogix Digital Input Module
High-density input module for industrial monitoring systems
Allen Bradley 1769-AENTR
Compact I/O Ethernet Adapter Module
Ethernet communication solution for distributed I/O systems
Industrial Applications
The Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module is a high-density digital output solution designed for CompactLogix automation systems requiring reliable control of multiple DC-powered field devices. With 32 output points in a compact module design, it provides efficient machine control capability for industrial equipment, production systems, and distributed automation applications.
Designed for engineers and machine builders, the 1769-OB32T helps simplify control panel layouts while providing stable output performance for applications requiring accurate switching control and dependable operation.
Application Field
Typical Uses
Machine Automation
Automated machinery, assembly systems, and production equipment
Packaging Systems
Actuators, solenoid control, and automated packaging processes
Material Handling
Conveyor systems, sorting equipment, and transport mechanisms
Manufacturing Lines
Industrial equipment requiring high-density digital outputs
The 1769-OB32T provides an efficient solution for expanding automation capabilities while maintaining reliable control performance and streamlined system design.
High-Density Output Performance Advantages
The Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module combines compact installation with flexible digital output control, making it suitable for demanding industrial automation environments.
Advantage
Description
32-Point Output Capacity
Provides high-density digital output control for multiple field devices
Compact Module Design
Helps reduce control cabinet space requirements
Reliable DC Output Control
Delivers stable switching performance for industrial loads
Flexible System Integration
Designed for use within CompactLogix automation architectures
Efficient Wiring Layout
Supports organized machine control panel design
Industrial Durability
Provides dependable operation in continuous automation applications
Technical FAQs
1. What is the main function of the 1769-OB32T module?
The 1769-OB32T is a digital output module designed to control DC-powered field devices within CompactLogix automation systems.
2. How many output channels does the 1769-OB32T provide?
The module provides 32 digital DC output points for controlling multiple connected devices.
3. What type of output signal does this module use?
The module provides 24V DC output signals suitable for industrial control applications.
4. Can the 1769-OB32T control solenoids and actuators?
Yes. The module is suitable for controlling various DC-powered industrial devices such as solenoids, relays, and actuators.
5. Is the 1769-OB32T compatible with CompactLogix systems?
Yes. It is designed for integration with CompactLogix and Compact I/O automation platforms.
6. What type of applications require a high-density output module?
Applications with multiple controlled devices, such as automated machinery and production lines, benefit from high-density output modules.
7. Does the module provide electrical isolation protection?
Yes. The module includes output isolation features to improve system reliability and protect connected control components.
8. How is the 1769-OB32T configured in an automation system?
The module is configured through compatible PLC programming and system configuration software.
9. Can the module be used in distributed control applications?
Yes. It can support distributed machine control systems where multiple output devices require centralized management.
10. Is the 1769-OB32T suitable for continuous industrial operation?
Yes. It is designed for reliable long-term performance in industrial automation environments.
