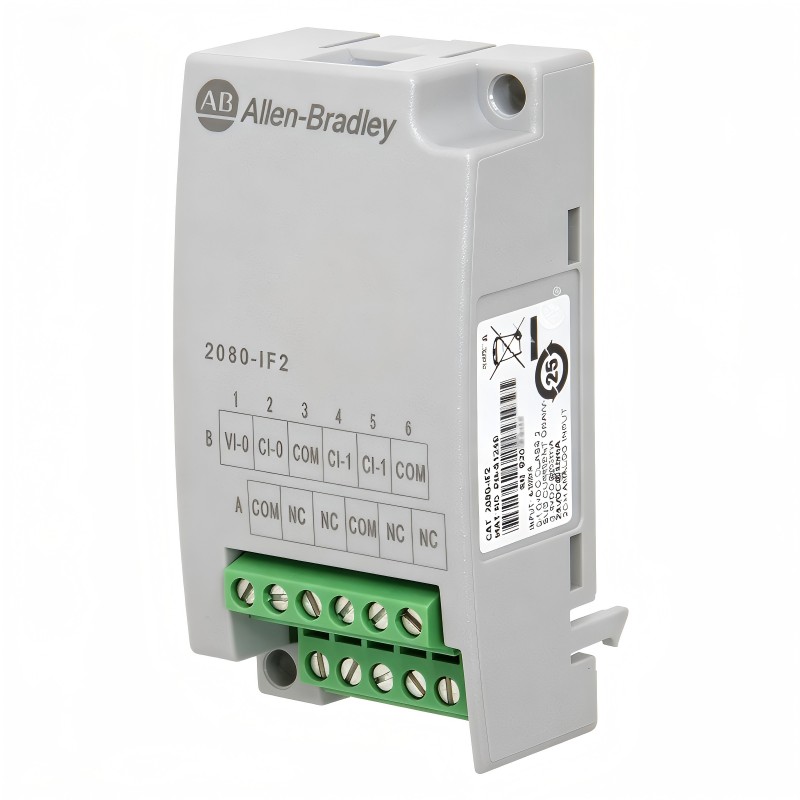

Allen Bradley 2080-IF2 Micro800 2-Channel Current/Voltage Analog Input Module
Allen Bradley 2080-IF2 Micro800 2-Channel Current/Voltage Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2080-IF2 Product Origin:USA Product Dimensions:62 x 20 x 31.5 mm Product Weight:0.021 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2080-IF2 Micro800 2-Channel Current/Voltage Analog Input Module provides an efficient solution for expanding compact automation systems with accurate analog signal processing capability. Designed for machine builders and automation engineers, this module enables Micro800 controllers to collect valuable field data from sensors and measurement devices.
Its compact design and flexible input capability help simplify machine development while improving monitoring accuracy and system performance. The 2080-IF2 is an excellent choice for applications requiring dependable analog measurement in a small automation footprint.
By combining reliable signal acquisition with easy system integration, this module supports smarter and more efficient industrial control solutions.
Technical Specifications
Specification
Details
Product Model
2080-IF2
Product Type
Micro800 2-Channel Current/Voltage Analog Input Module
Product Series
Micro800 Plug-In Module
Number of Analog Inputs
2 Channels
Input Type
Current / Voltage Analog Input
Voltage Input Range
0–10V DC
Current Input Range
0–20mA
Analog Resolution
12 Bit
Input Configuration
Configurable Analog Channels
Signal Conversion
Analog-to-Digital Conversion
Isolation Type
Non-Isolated Input
Compatible Platform
Micro800 Controller Series
Connection Type
Screw Terminal Connection
Installation Method
Controller Plug-In Installation
Dimensions (W × H × D)
62 × 20 × 31.5 mm
Weight
0.02 kg (0.05 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 2080-IF4
Micro800 4-Channel Analog Input Module
Provides additional analog input channels for expanded monitoring applications
Allen Bradley 2080-OF2
Micro800 2-Channel Analog Output Module
Supports analog output control for industrial devices
Allen Bradley 2080-L50E-24QBB
Micro800 Controller Module
Advanced controller solution for compact automation systems
Popular Related Models
Model
Product Type
Description
Allen Bradley 2080-LC30-24QBB
Micro830 Programmable Controller
Compact PLC solution for machine automation
Allen Bradley 2080-L50-24QWB
Micro850 Programmable Controller
Flexible controller for advanced automation applications
Allen Bradley 2085-IF4
Micro850 Expansion Analog Input Module
Multi-channel analog expansion solution for Micro850 systems
Industrial Applications
The Allen Bradley 2080-IF2 Micro800 2-Channel Current/Voltage Analog Input Module is a compact signal expansion solution designed for Micro800 automation systems requiring accurate analog data acquisition and flexible machine control. This module enables controllers to receive current and voltage signals from industrial sensors, transmitters, and measurement devices, helping improve monitoring accuracy and automation performance.
Designed for OEM machines, compact control systems, and intelligent equipment, the 2080-IF2 provides an efficient way to expand analog input capability while maintaining a space-saving installation structure.
Application Field
Typical Uses
Machine Automation
Sensor feedback, equipment monitoring, and automated control systems
Process Control
Pressure, temperature, flow, and level signal measurement
OEM Machinery
Compact machines requiring additional analog input capability
Industrial Monitoring
Real-time data collection from field instruments
Building Automation
Analog device monitoring and control applications
The 2080-IF2 delivers a practical solution for engineers seeking accurate signal processing, simplified integration, and reliable automation performance.
Compact Signal Processing Advantages
The Allen Bradley 2080-IF2 Micro800 Analog Input Module combines flexible signal measurement capability with a compact plug-in design, making it an effective choice for modern industrial automation applications.
Advantage
Description
Dual Analog Input Channels
Provides two channels for monitoring current and voltage signals
Flexible Signal Measurement
Supports different analog sensor and transmitter applications
Space-Saving Design
Expands controller functionality without requiring additional cabinet space
Reliable Data Acquisition
Enables accurate analog signal conversion for automation processes
Easy Controller Expansion
Provides a simple method to enhance Micro800 system capability
Efficient Machine Integration
Helps simplify development of compact automation solutions
Technical FAQs
1. What is the primary function of the 2080-IF2 module?
The 2080-IF2 is an analog input expansion module used to collect current and voltage signals for Micro800 controllers.
2. How many analog input channels are available on this module?
The module provides two analog input channels for industrial signal monitoring.
3. What types of analog signals can the module accept?
The module accepts current and voltage signals from compatible industrial sensors and transmitters.
4. Which controller platforms support the 2080-IF2?
The module is designed for use with compatible Micro800 controller platforms.
5. Can the module be used for process measurement applications?
Yes. It can be used for monitoring process variables such as pressure, temperature, and flow through compatible sensors.
6. What type of devices can connect to the analog inputs?
The module can connect to industrial transmitters, sensors, and other analog signal devices.
7. How is the module configured within the control system?
The module is configured through compatible Micro800 programming software for application requirements.
8. Does the 2080-IF2 improve controller functionality?
Yes. It expands the controller’s ability to process analog field signals and perform advanced monitoring tasks.
9. Is the module suitable for OEM machine applications?
Yes. Its compact structure makes it suitable for space-limited OEM automation equipment.
10. What industries commonly use analog input modules?
Analog input modules are widely used in manufacturing, process automation, equipment monitoring, and industrial control applications.
