Brand:Schneider PLC Item No.:BMXXTSHSC20 Product Origin:France Product Dimensions:52 × 20 × 12 mm Product Weight:0.021 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

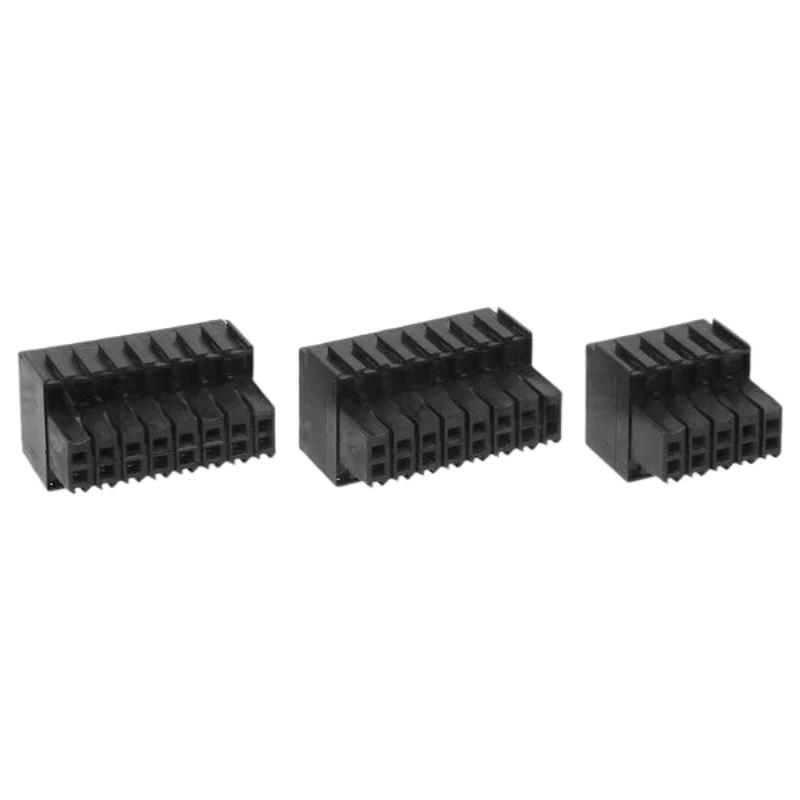

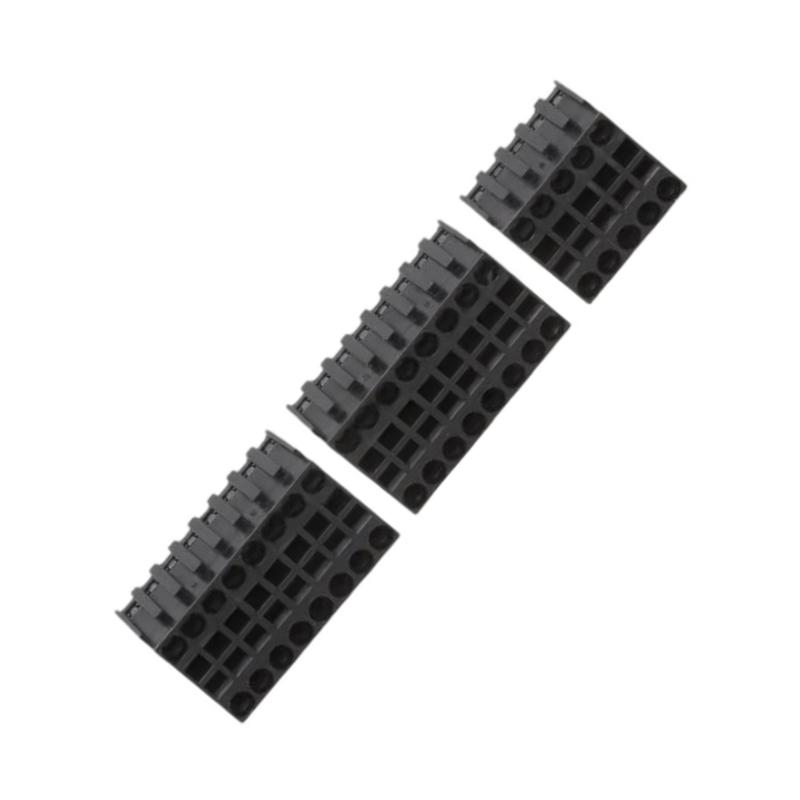

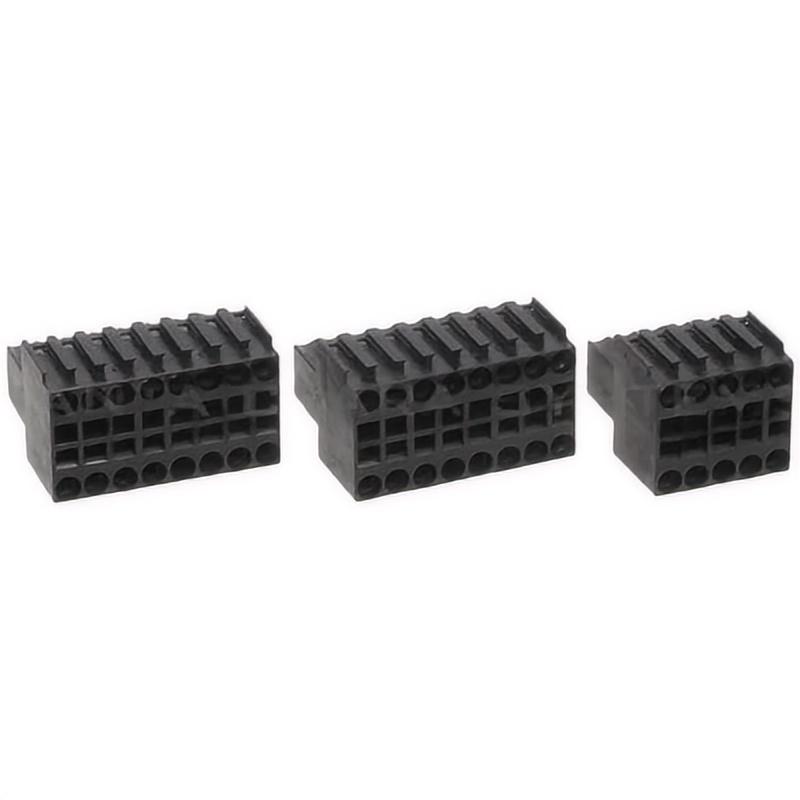

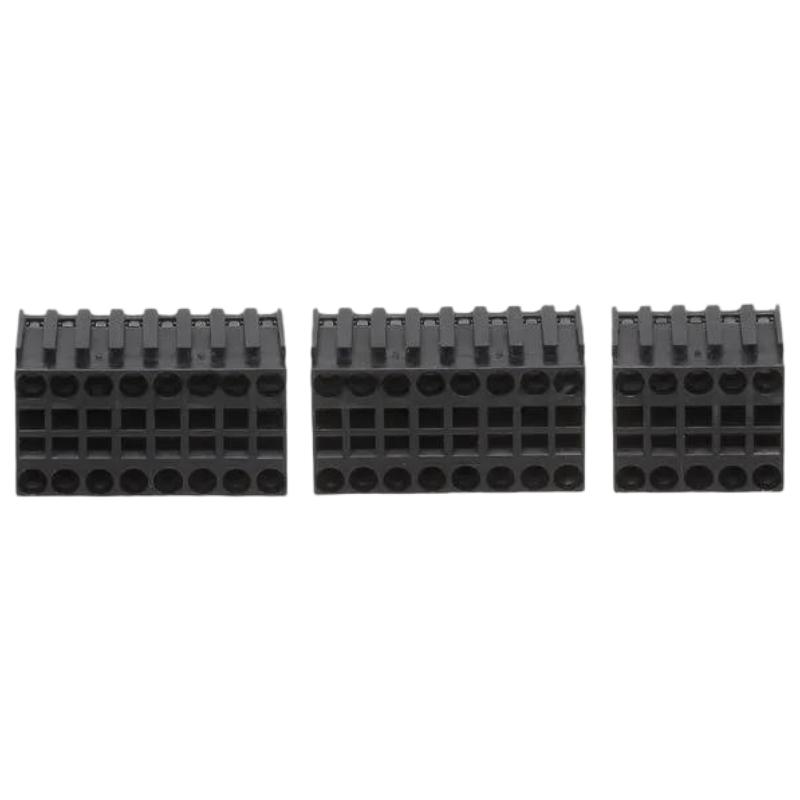

The Schneider BMXXTSHSC20 Connector is a specialized automation accessory developed to provide reliable signal connection support for industrial control systems. Designed for Modicon M340 high-speed counter applications, it helps maintain stable communication between modules and connected devices.
With its compact design and efficient connection structure, the BMXXTSHSC20 improves installation convenience while supporting dependable system performance. It is an ideal accessory for engineers seeking reliable module integration and simplified maintenance in automation projects.
This connector solution contributes to cleaner cabinet layouts, improved wiring organization, and enhanced operational reliability in industrial environments.
Technical Specifications
Specification
Details
Product Type
Connector
Manufacturer
Schneider Electric
Model
BMXXTSHSC20
Product Series
Modicon M340
Accessory Type
Connector Kit
Compatible Module
BMXEHC0200 Counter Module
Connector Composition
Two 16-pin Connectors and One 10-pin Connector
Application
High-Speed Counter Module Connection
Mounting Type
Plug-in Connection
Installation Environment
Industrial Automation Systems
Dimensions (H × W × D)
52 × 20 × 12 mm
Weight
0.02 kg (0.05 lb)
Recommended Related Models
Model
Product Type
Description
Schneider BMXEHC0200
Counter Module
High-speed counter module for Modicon M340 automation systems.
Schneider BMXEHC0800
Counter Module
Multi-channel counter module for industrial measurement applications.
Schneider BMXXSP0400
Shielded Connection Kit
Provides shielding support for compatible automation racks.
Schneider BMXFTB2000
Terminal Block
Removable terminal connection accessory for automation modules.
Popular Related Models
Model
Product Type
Application Focus
Schneider BMXXTSHSC20
Connector
M340 high-speed counter module connection
Schneider BMXEHC0200
Counter Module
Industrial counting and monitoring applications
Schneider BMXP342020
Processor Module
Modicon M340 automation control
Schneider BMXCPS2000
Power Supply Module
PLC system power management
Industrial Application Areas
The Schneider BMXXTSHSC20 Connector is a dedicated connection accessory designed for Modicon M340 automation systems. It provides a reliable interface solution for high-speed counter modules, helping ensure secure signal connections and efficient module integration in industrial control applications.
Designed for professional automation environments, the BMXXTSHSC20 supports stable connection performance for counter module applications. Its compact structure and easy installation make it suitable for PLC systems, machine automation, and industrial equipment requiring dependable signal transmission.
Application Area
Description
PLC Automation Systems
Provides reliable connector support for Modicon M340 controller configurations.
High-Speed Counter Applications
Enables secure signal connections for counter modules used in industrial monitoring and control.
Machine Automation
Supports accurate data transmission in automated machinery.
Industrial Control Panels
Helps maintain organized and reliable internal cabinet wiring.
Production Equipment Upgrades
Provides a practical replacement accessory for existing automation installations.
Reliable Connection Performance Advantages
The Schneider BMXXTSHSC20 combines compact design with dependable electrical connection performance. It helps simplify module installation, improve maintenance efficiency, and support stable operation in industrial automation systems.
Advantage
Description
Secure Signal Connection
Provides reliable connection between automation modules and field wiring.
Easy Installation
Designed for convenient mounting and replacement during maintenance operations.
Compact Structure
Saves valuable cabinet space in industrial control environments.
Stable Electrical Performance
Supports consistent signal transmission for high-speed counting applications.
Industrial Reliability
Built for professional automation systems requiring long-term operation.
Technical FAQs
1. What is the main function of the Schneider BMXXTSHSC20?
The BMXXTSHSC20 is a connector kit designed to provide connection support for compatible Modicon M340 counter modules.
2. Which module is compatible with the BMXXTSHSC20?
This connector kit is designed for use with the BMXEHC0200 high-speed counter module.
3. What is included in the BMXXTSHSC20 connector kit?
The kit includes two 16-pin connectors and one 10-pin connector for module connection requirements.
4. Why are dedicated connectors used in PLC systems?
Dedicated connectors provide secure electrical interfaces and help simplify installation and maintenance.
5. Can the BMXXTSHSC20 support high-speed counting applications?
Yes. It is designed for connection requirements associated with high-speed counter modules.
6. Does this connector require software configuration?
No. The BMXXTSHSC20 is a hardware accessory and does not require software setup.
7. What should be checked before replacing this connector?
Module compatibility, connector type, and system wiring requirements should be verified before replacement.
8. Can the BMXXTSHSC20 improve maintenance efficiency?
Yes. The detachable connector design allows easier module servicing and wiring management.
9. Is the BMXXTSHSC20 suitable for industrial environments?
Yes. It is designed for use in professional industrial automation applications.
10. What type of automation systems commonly use this connector?
It is commonly used in Modicon M340 PLC systems with compatible counter modules.
