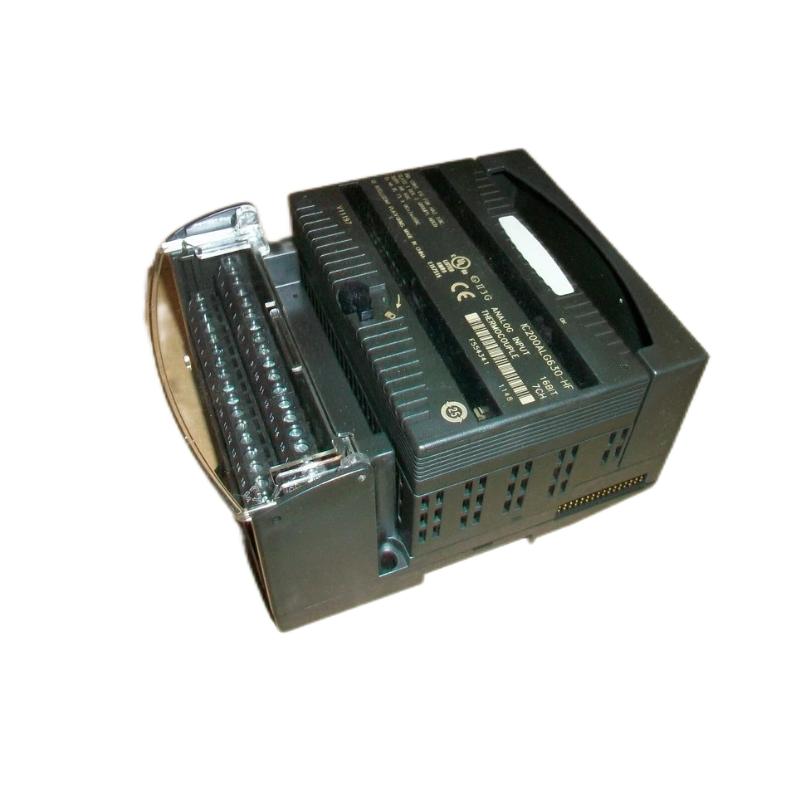

Introduction

The GE IC200ALG326H VersaMax Analog Current Output Module is a precision analog control module designed for GE VersaMax industrial automation platforms. Providing eight channels of current-sourcing analog output, it enables PLC systems to directly control field devices that require continuous 4–20 mA or 0–20 mA signals.

Built for demanding industrial applications, the IC200ALG326H combines 13-bit resolution, flexible output configuration, and dependable signal processing to support accurate process regulation. Its compact VersaMax architecture allows efficient installation in space-limited control panels while maintaining reliable communication with the automation system.

From proportional valve positioning to drive control and process adjustment, this module provides a practical solution for engineers seeking stable analog output performance within existing VersaMax installations.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200ALG326H
Product Type	Analog Current Output Module
Product Family	VersaMax
Output Type	Analog Current-Sourcing Output
Number of Outputs	8 Channels
Output Configuration	Single-Ended, One Group
Output Range	4–20 mA Default / 0–20 mA Configurable
Resolution	13 Bit
Update Rate	15 ms Maximum
External Field Power	18–30 VDC
Output Current Capacity	Approx. 20.38 mA Maximum per Channel
Output Protection	Current Limiting Protection
Output Isolation	Field Side Isolation from Logic
Channel Isolation	No Channel-to-Channel Isolation
Output State Configuration	Hold Last State / Default State
Indicators	OK LED, Field Power LED
Backplane Current Consumption	50 mA Maximum at 5 VDC
Field Current Consumption	Up to 185 mA at Full Scale Output
Mounting Type	VersaMax Carrier / DIN Rail
Dimensions	Approx. 110 × 66.8 × 50 mm
Weight	Approx. 0.15 kg

Recommended Companion Models

Model	Product Name
IC200CPU005	VersaMax CPU Module
IC200PWR102C	VersaMax AC Power Supply Module
IC200ERM002F	VersaMax Expansion Receiver Module
IC200ALG264H	VersaMax Analog Current Input Module

Frequently Selected Alternatives

Model	Product Name
IC200ALG328H	VersaMax 12-Channel Analog Current Output Module
IC200ALG325H	VersaMax 8-Channel Analog Voltage Output Module
IC200ALG331	VersaMax Analog Combination Input/Output Module
IC693ALG392	Series 90-30 Analog Current/Voltage Output Module

Where It Excels in Industrial Use

GE VersaMax PLC systems requiring precise analog current control
Process automation with proportional control requirements
Valve position control and actuator regulation
Variable frequency drive speed references
Flow, pressure, and temperature control loops
Chemical and manufacturing process systems
Remote analog output stations
OEM machinery requiring adjustable current signals
SCADA-controlled field regulation applications
Existing VersaMax automation system expansions

Key Strengths at a Glance

8-channel analog current output capability
Supports 4–20 mA and configurable 0–20 mA output ranges
13-bit output resolution for accurate signal control
Single-ended current-sourcing outputs
Fast 15 ms maximum update rate
External 18–30 VDC field power support
Output hold-last-state or default-state configuration
Integrated field power status indication
Compact VersaMax modular design
Reliable signal generation for industrial control applications

Technical FAQs

1. What is the primary function of the GE IC200ALG326H?

The IC200ALG326H is a VersaMax analog output module designed to provide eight analog current-sourcing outputs for controlling industrial devices such as valves, actuators, and process controllers.

2. How many analog output channels does the module provide?

The IC200ALG326H provides 8 single-ended analog current output channels arranged in one output group.

3. What output signal ranges are supported?

The module supports 4–20 mA output as the default range and can be configured for 0–20 mA operation using a jumper setting.

4. What resolution does the IC200ALG326H provide?

The module provides 13-bit analog output resolution, allowing accurate adjustment of industrial control signals.

5. Does the module require external field power?

Yes. The analog output circuits require an external 18–30 VDC field power supply to drive connected current loops.

6. What types of devices can be controlled?

Typical applications include proportional valves, motor speed controllers, actuators, process regulators, and other industrial equipment requiring 4–20 mA control signals.

7. Can the output state be maintained during communication interruption?

Yes. The module can be configured to hold the last output value or switch to a predefined default state if backplane power or communication is interrupted.
