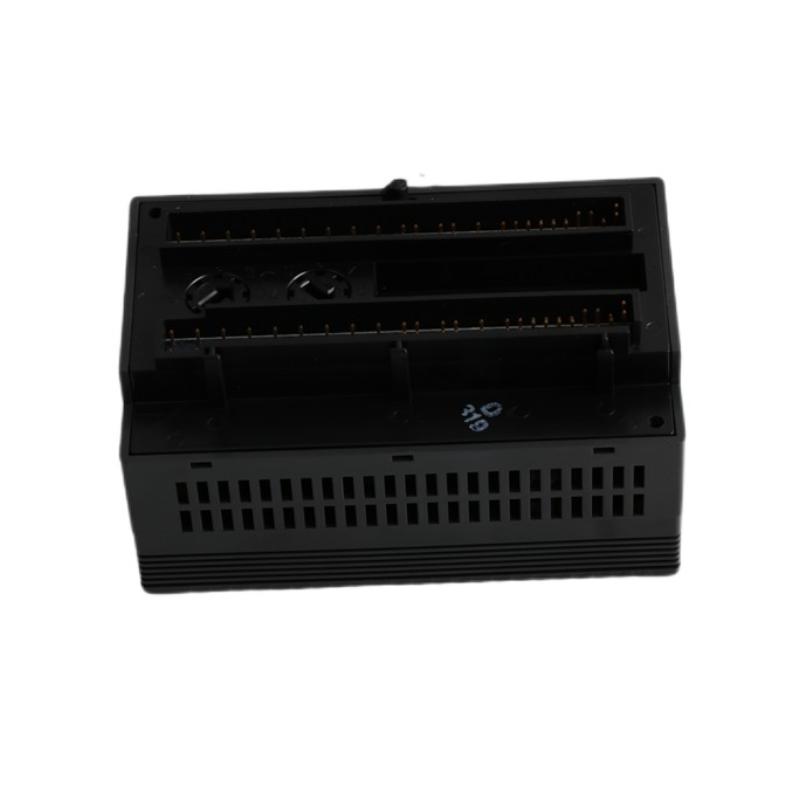

GE IC200ALG320B VersaMax Analog Current Output Module
GE IC200ALG320B VersaMax Analog Current Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200ALG320B Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200ALG320B VersaMax Analog Current Output Module is a precision analog output solution developed for GE VersaMax automation platforms. Featuring four single-ended current output channels, it enables PLC systems to generate stable 4–20 mA signals for controlling industrial devices and process equipment.
Designed for applications where accurate continuous control is required, the IC200ALG320B provides 12-bit resolution, rapid update performance, and flexible output configuration. Its compact VersaMax architecture allows engineers to integrate analog control capability into space-efficient automation systems while maintaining dependable operation.
From process regulation to machine automation, this module delivers reliable analog signal generation for applications involving valves, drives, actuators, and industrial control loops.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ALG320B
Product Type
VersaMax Analog Current Output Module
Product Family
VersaMax Modular I/O
Output Type
Analog Current Output
Number of Outputs
4 Channels
Output Configuration
Single-Ended, One Group
Output Range
4–20 mA
Resolution
12 Bit
Current Resolution
4 μA
Update Rate
0.3 ms Maximum
Output Accuracy
±0.3% Typical Full Scale
External Field Power
18–30 VDC
Maximum Output Current
Approx. 20.38 mA per Channel
Output Protection
Current Limiting Protection
Output State Configuration
Hold Last State / Default State
Isolation
Field Side to Logic Isolation
Indicators
FLD PWR LED, OK LED
Backplane Current Consumption
50 mA Maximum at 5 VDC
Field Current Consumption
Approx. 160 mA Maximum
Mounting Type
VersaMax Carrier / DIN Rail
Dimensions
Approx. 50 × 110 × 66.8 mm
Weight
Approx. 0.16 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax AC Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200ALG264H
VersaMax Analog Current Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG326H
VersaMax 8-Channel Analog Current Output Module
IC200ALG260
VersaMax Analog Voltage Input Module
IC200ALG264H
VersaMax 15-Channel Analog Current Input Module
IC693ALG392
Series 90-30 Analog Current/Voltage Output Module
Where It Excels in Industrial Use
GE VersaMax distributed I/O systems requiring accurate analog control signals
Process automation applications using 4–20 mA control loops
Modulating valve and actuator positioning systems
Variable frequency drive speed reference control
Flow, pressure, and level regulation applications
Industrial equipment requiring continuous current output signals
Remote analog output stations in distributed control architectures
OEM machinery with proportional control requirements
SCADA and process monitoring systems
VersaMax PLC expansion and modernization projects
Key Strengths at a Glance
4-channel analog current output design
12-bit digital-to-analog conversion resolution
Standard 4–20 mA current output range
Single-ended output architecture
Fast 0.3 ms maximum update rate
Supports external 18–30 VDC field power
Output hold-last-state or default-state configuration
Built-in field power and module status indicators
Compact VersaMax modular installation
Suitable for precise industrial closed-loop control applications
Technical FAQs
1. What is the primary function of the GE IC200ALG320B?
The IC200ALG320B is a VersaMax analog output module designed to convert PLC digital values into four 4–20 mA analog current output signals for controlling industrial field devices.
2. How many analog output channels does the module provide?
The IC200ALG320B provides four single-ended analog current output channels arranged in one output group.
3. What type of output signal does the module generate?
The module provides a 4–20 mA current output signal commonly used for industrial transmitters, proportional valves, actuators, and drive controllers.
4. What is the resolution of the IC200ALG320B?
The module uses a 12-bit analog output resolution, providing approximately 4 μA output resolution for accurate current regulation.
5. Does the module require external field power?
Yes. The output circuitry requires an external field power supply, typically 18–30 VDC, to drive connected analog loads.
6. What types of devices can be controlled by this module?
Typical applications include proportional control valves, dampers, variable frequency drives, signal isolators, panel meters, and other devices accepting 4–20 mA input signals.
7. How does the module handle PLC communication interruption?
The output behavior can be configured to either maintain the last output value or switch to a predefined default state when communication or backplane power conditions change.
8. Does the IC200ALG320B provide diagnostic indicators?
Yes. The module includes LED indicators for field power availability and module operating status, simplifying troubleshooting and maintenance.
9. Is the IC200ALG320B compatible with VersaMax CPUs and NIUs?
Yes. The module is designed for the GE VersaMax platform and is compatible with VersaMax CPUs and Network Interface Units.
10. Why is the IC200ALG320B widely used in automation systems?
Its combination of compact design, reliable 4–20 mA output performance, fast update speed, and VersaMax compatibility makes it a practical solution for industrial analog control applications.
