Introduction

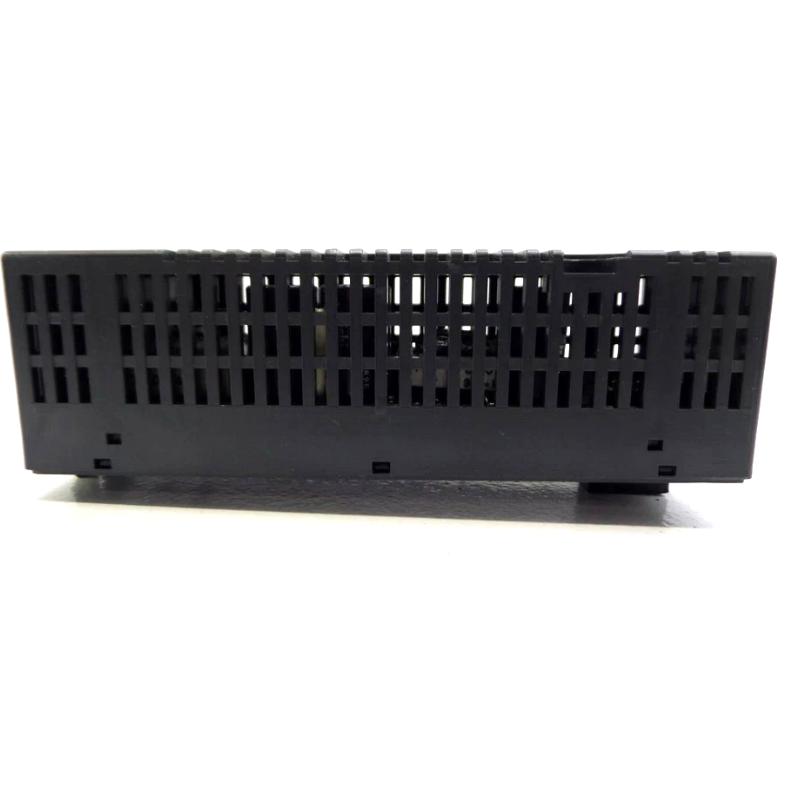

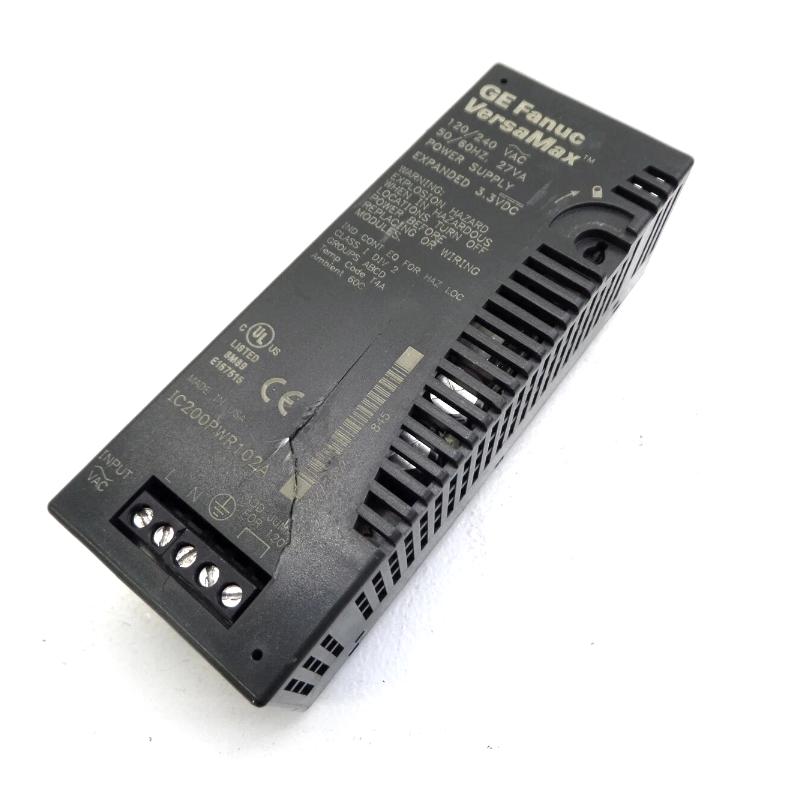

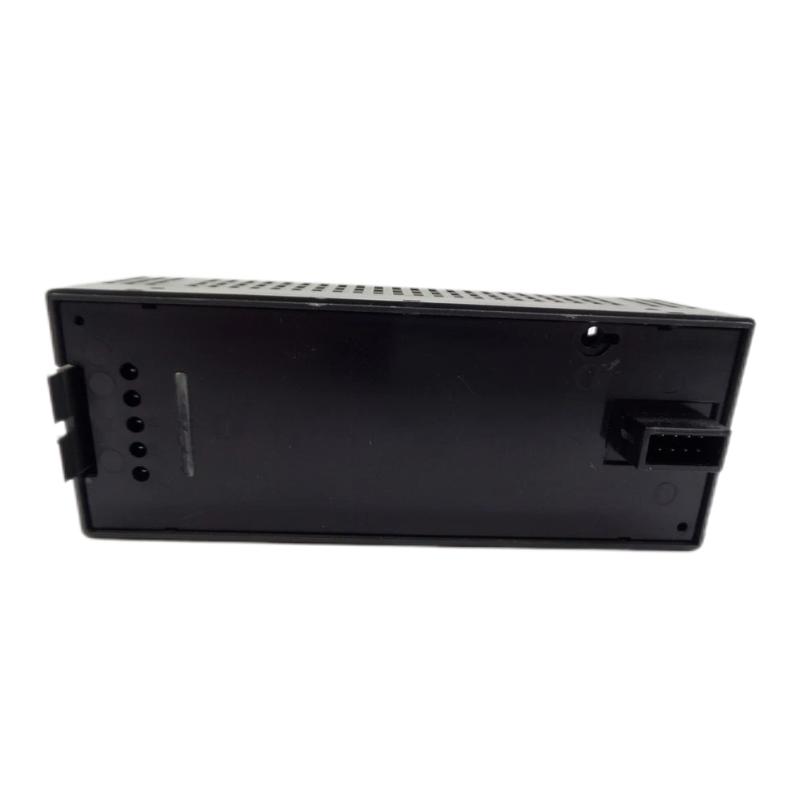

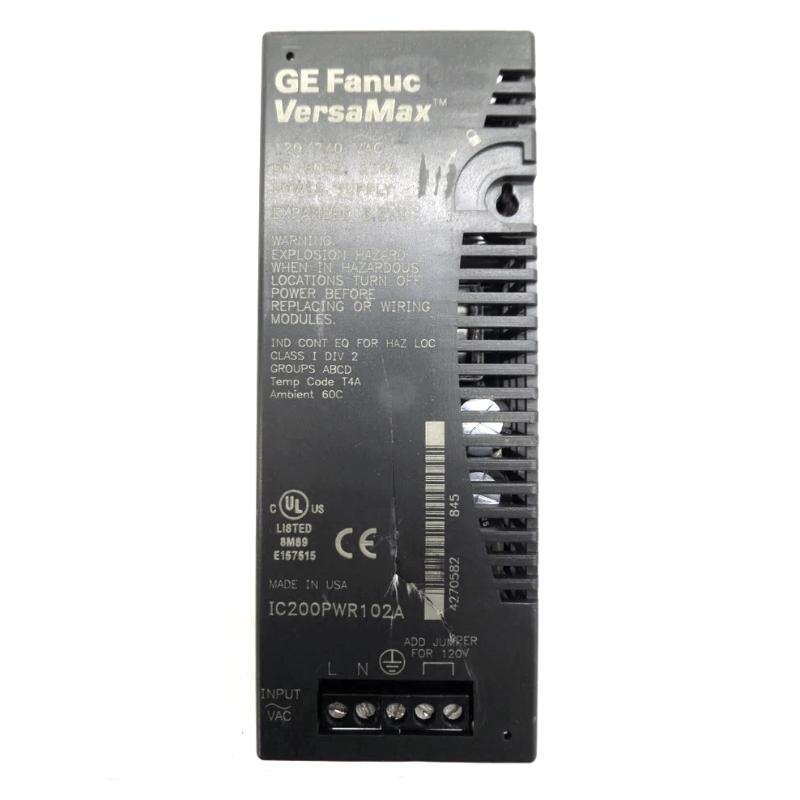

The GE IC200PWR102F VersaMax Expanded Power Supply Module is a dependable power management solution designed for GE VersaMax PLC and distributed I/O systems. Engineered to provide stable operating power for automation hardware, this module supports both primary station power and supplemental power requirements in larger control architectures.

Featuring 120/240 VAC input capability and dual DC output support, the IC200PWR102F helps maintain reliable operation of VersaMax CPUs, communication modules, and I/O devices. Its compact design, integrated protection functions, and flexible installation options make it suitable for industrial control panels where system availability and efficient space utilization are important.

For automation engineers maintaining existing VersaMax platforms, this power supply module provides a practical solution for system replacement, expansion, and long-term operational support.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200PWR102F
Product Type	Expanded Power Supply Module
Product Family	VersaMax
Input Voltage	120/240 VAC Nominal
Input Voltage Range	85–132 VAC / 176–264 VAC
Input Frequency	47–63 Hz
Input Power	27 VA
Output Voltage	5 VDC and 3.3 VDC
Total Output Current	1.5 A Maximum
5 VDC Output Current	Up to 1.5 A (within total limit)
3.3 VDC Output Current	1.0 A Maximum
Hold-Up Time	20 ms
Protection Features	Short Circuit, Overload Protection
Application Mode	Main or Supplemental Power Source
Mounting Type	VersaMax Carrier / DIN Rail
Status Indicators	Power Status LED
Operating Temperature	0°C to +60°C
Dimensions	Approx. 49 × 133.4 × 39 mm
Weight	Approx. 0.14–0.30 kg

Recommended Companion Models

Model	Product Name
IC200CPUE05	VersaMax Ethernet CPU Module
IC200ERM002F	VersaMax Expansion Receiver Module
IC200ETM001D	VersaMax Expansion Transmitter Module
IC200GBI001-BF	VersaMax Genius Network Interface Unit Module

Frequently Selected Alternatives

Model	Product Name
IC200PWR101	VersaMax Standard Power Supply Module
IC200PWR201	VersaMax 12 VDC Power Supply Module
IC200PWR202	VersaMax Expanded 12 VDC Power Supply Module
IC200PWB001	VersaMax Power Supply Booster Carrier Module

Where It Excels in Industrial Use

GE VersaMax PLC control systems requiring reliable rack power distribution
Distributed I/O stations with multiple connected modules
Industrial automation cabinets with extended power requirements
Manufacturing equipment and production line controllers
Process control systems requiring stable DC power conversion
Remote I/O applications using VersaMax CPUs and Network Interface Units
OEM machinery requiring compact power supply integration
System expansion projects requiring additional module power capacity
Legacy VersaMax installations requiring replacement power modules
Industrial environments where continuous PLC operation is essential

Key Strengths at a Glance

Expanded power supply designed for VersaMax automation systems
Supports 120/240 VAC input operation
Provides 5 VDC and 3.3 VDC output power rails
Delivers up to 1.5 A total output current capacity
Suitable as primary or supplemental station power source
Built-in short-circuit and overload protection
20 ms power hold-up capability for improved stability
Compact DIN rail mounting design
Compatible with VersaMax CPUs and Network Interface Units
Reliable power solution for larger I/O configurations

Technical FAQs

1. What is the primary function of the GE IC200PWR102F?

The IC200PWR102F is a VersaMax expanded power supply module designed to provide operating power for VersaMax CPUs, network interface units, and I/O modules. It supplies regulated DC power to the system backplane.

2. What input voltage does the IC200PWR102F support?

The module supports 120/240 VAC nominal input operation. The selectable input range is approximately 85–132 VAC or 176–264 VAC depending on jumper configuration.

3. What output voltages are provided by this power supply?

The IC200PWR102F provides two DC output rails:

5 VDC output for VersaMax system electronics
3.3 VDC expanded output for compatible modules

4. What is the maximum output current capability?

The module provides a total output current capacity of up to 1.5 A, with the 3.3 VDC output rated up to approximately 1.0 A while maintaining the total current limitation.

5. Can the IC200PWR102F be used as an additional power source?

Yes. The module can function as either the main VersaMax station power supply or as supplemental power for larger I/O configurations requiring additional capacity.

6. What protection functions are included?

The power supply includes protection features such as short-circuit protection and overload protection to help protect the automation system during abnormal operating conditions.

7. Does the module require a separate DC input supply?

No. The IC200PWR102F is an AC-input power supply module and accepts industrial AC power directly within its specified voltage range.

8. Which VersaMax components can use this power supply?

The module is designed to supply power for VersaMax CPUs, Network Interface Units, booster carriers, and connected I/O modules installed in the same system configuration.
