GE IC200CHS022J VersaMax Compact Box-Style I/O Carrier Module
GE IC200CHS022J VersaMax Compact Box-Style I/O Carrier Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200CHS022J Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

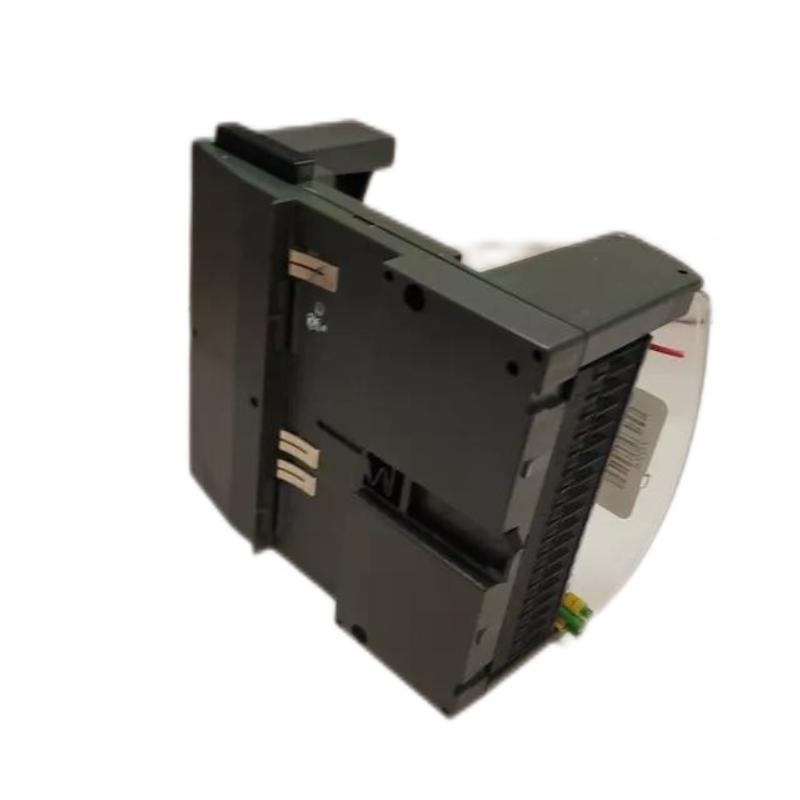

The GE IC200CHS022J VersaMax Compact Box-Style I/O Carrier Module is a dedicated hardware carrier designed to support GE VersaMax distributed I/O modules. It provides the essential connection point between the I/O module, field wiring, and VersaMax backplane communication system.
Designed for compact industrial automation environments, the IC200CHS022J combines module mounting, terminal wiring, and system connectivity into a single space-efficient component. Its box-style terminal design simplifies field wiring while maintaining a clean and organized control cabinet layout.
With its robust construction and compatibility with a wide range of VersaMax I/O modules, this carrier remains an important component for machine builders, system integrators, and maintenance teams supporting existing GE automation platforms.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200CHS022J
Product Type
Compact Box-Style I/O Carrier Module
Product Family
VersaMax
Carrier Style
Vertical Box Style
Supported Modules
VersaMax I/O Modules
Terminal Type
IEC Box-Style Terminal
Number of Terminals
36
Supported I/O Capacity
Up to 32 I/O Points + 4 Common Connections
Mounting Type
35 mm DIN Rail
Installation Orientation
Vertical
Wiring Type
Solid or Stranded Copper Wire
Maximum Voltage Rating
Up to 264 VAC
Maximum Current per Point
2 A
Connector Type
Integrated Carrier Connection
Module Installation
Tool-Free Snap Mounting
Wiring Card
Pivoting Card Holder Design
Operating Temperature
0°C to +60°C
Dimensions
Approx. 66.8 × 163.5 × 70 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC200ALG260C
VersaMax Analog Voltage/Current Input Module
IC200MDL650E
VersaMax 32-Point Discrete Input Module
IC200ALG321B
VersaMax Analog Voltage Output Module
IC200PWR102F
VersaMax Expanded Power Supply Module
Frequently Selected Alternatives
Model
Product Name
IC200CHS002
VersaMax Box-Style Horizontal I/O Carrier
IC200CHS025
VersaMax Spring Clamp Vertical I/O Carrier
IC200CHS012
VersaMax Non-Integrated Box-Style I/O Carrier
IC200CHS001
VersaMax Barrier Horizontal I/O Carrier
Where It Excels in Industrial Use
GE VersaMax distributed I/O system installations
Compact PLC control cabinets requiring modular field wiring
Industrial machine automation equipment
OEM control panels with limited installation space
Factory production line I/O expansion systems
Discrete and analog I/O module mounting applications
Retrofit projects replacing older GE Fanuc VersaMax carriers
Industrial systems requiring flexible DIN rail installation
Key Strengths at a Glance
Compact box-style I/O carrier designed for VersaMax modules
Provides mounting, backplane communication, and field wiring connections
Supports one VersaMax I/O module installation
Provides 36 IEC box-style terminal connections
Supports up to 32 I/O points and four common connections
Integrated card holder for convenient wiring identification
Tool-free module installation with secure locking design
Compatible with DIN rail mounting systems
Supports vertical mounting orientation for space optimization
Designed for reliable long-term industrial automation operation
Technical FAQs
1. What is the primary function of the GE IC200CHS022J?
The IC200CHS022J is a VersaMax compact I/O carrier module that provides the physical mounting structure, backplane connection, and field wiring interface for one VersaMax I/O module.
2. How many terminals does the IC200CHS022J provide?
The module includes 36 IEC box-style terminals, allowing connection of field wiring for installed VersaMax I/O modules.
3. How many I/O points can the carrier support?
The IC200CHS022J supports I/O modules with up to 32 input/output points and four common power connections.
4. Does the IC200CHS022J contain any control processing functions?
No. The carrier does not perform PLC logic processing or communication control. It provides the mechanical mounting and electrical connection interface for VersaMax I/O modules.
5. Which VersaMax modules can be installed on this carrier?
The IC200CHS022J supports compatible VersaMax discrete, analog, and specialty I/O modules that use the compact carrier architecture.
6. What type of mounting system does this carrier use?
The module is designed for 35 mm DIN rail mounting, allowing fast installation inside industrial control cabinets.
7. Does the IC200CHS022J require additional wiring connectors?
No additional connector cables are required. The carrier provides integrated terminal connections and a direct module interface for VersaMax I/O installation.
8. What type of wiring is supported?
The carrier supports solid or stranded copper wiring. Terminal connections accommodate typical industrial wire sizes used in control cabinet applications.
9. What is the maximum electrical capability of the carrier terminals?
The carrier terminals support applications up to approximately 264 VAC and up to 2 A per I/O point, depending on the installed module specifications.
10. Why is the IC200CHS022J still used in automation systems?
Its compact design, reliable wiring interface, and compatibility with existing VersaMax I/O modules make it a practical choice for maintaining and expanding legacy industrial control systems.
