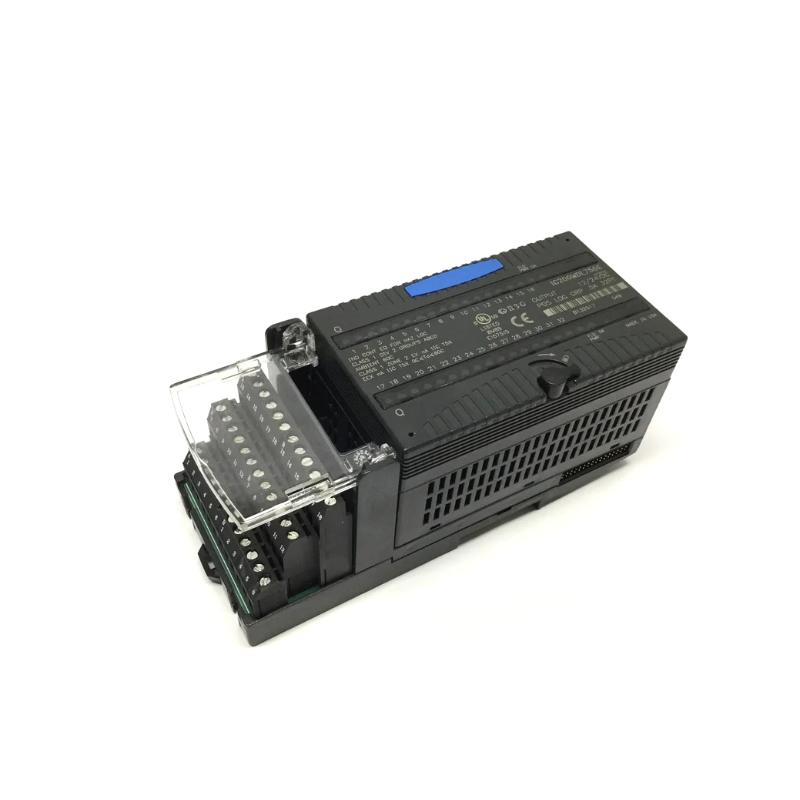

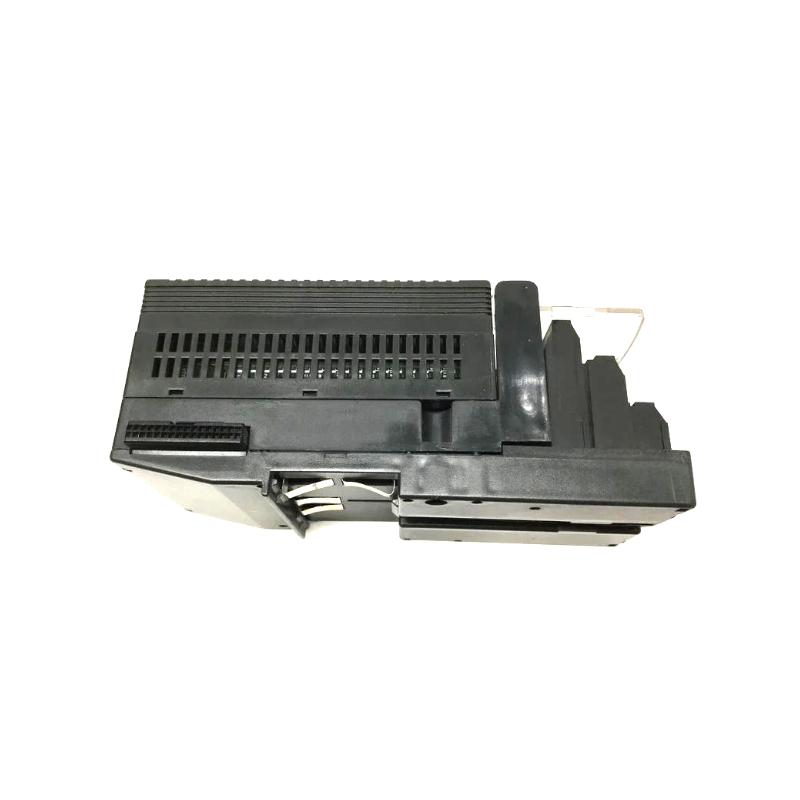

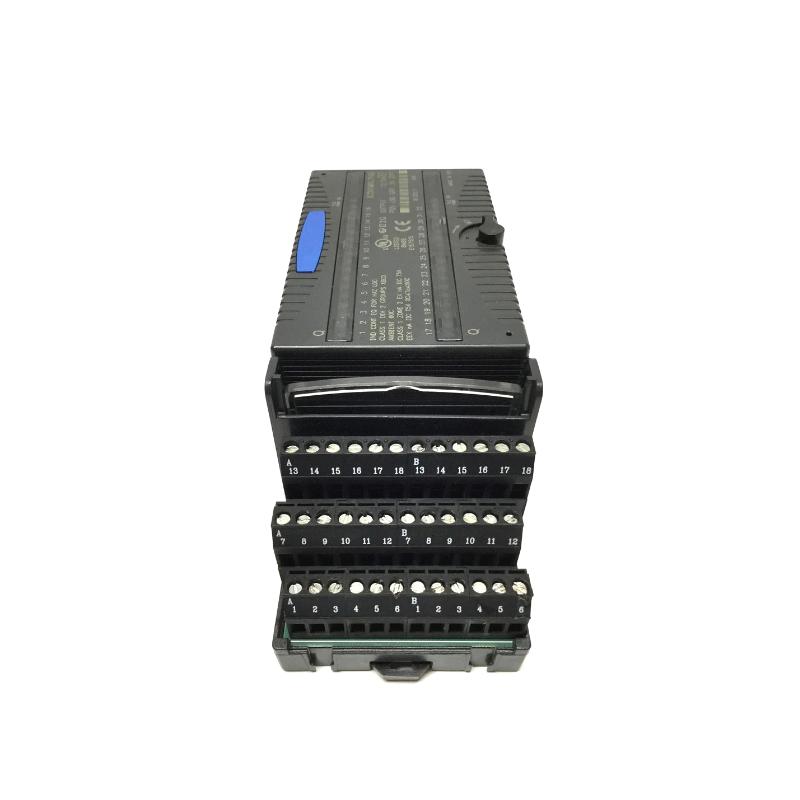

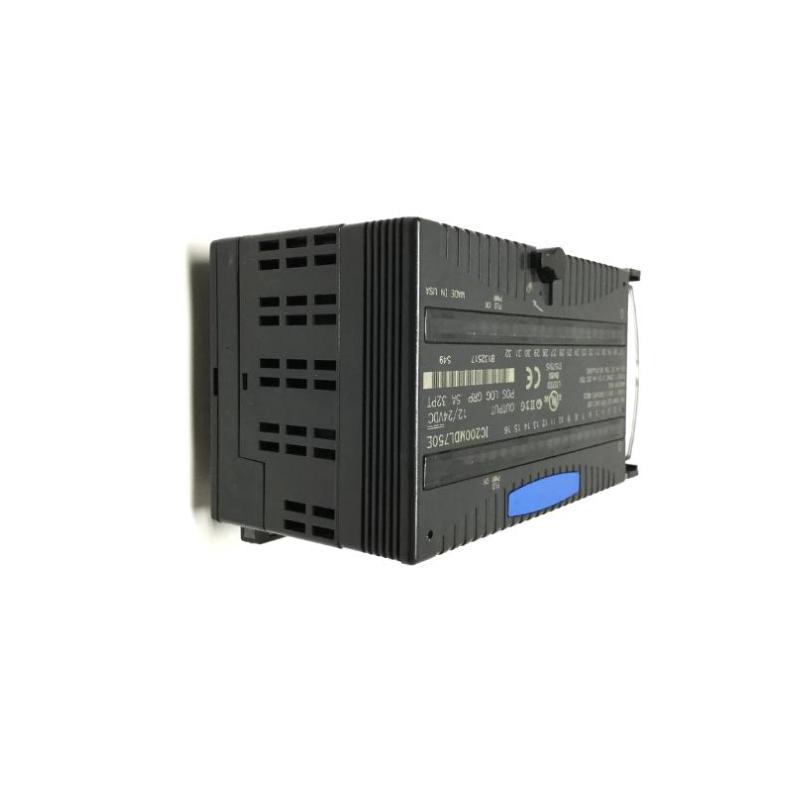

GE IC200MDL750J VersaMax 32-Point Positive Logic Discrete Output Module
GE IC200MDL750J VersaMax 32-Point Positive Logic Discrete Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200MDL750J Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200MDL750J VersaMax 32-Point Positive Logic Discrete Output Module is a high-density digital output solution engineered for GE VersaMax PLC and distributed I/O systems. Designed with 32 sourcing outputs arranged in two independently powered groups, the module provides reliable switching for a broad range of industrial control devices while optimizing cabinet space.
With fast response times, individual channel diagnostics, and robust electrical isolation, the IC200MDL750J delivers dependable performance in demanding manufacturing and process automation environments. Its modular VersaMax architecture simplifies installation and maintenance, making it an excellent choice for both new system designs and long-term support of existing automation platforms.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200MDL750J
Product Type
Positive Logic Discrete Output Module
Product Family
VersaMax
Number of Outputs
32 Points
Output Groups
2 Groups × 16 Outputs
Logic Type
Positive Logic (Sourcing)
Output Voltage Range
10.2–30 VDC
Nominal Output Voltage
12/24 VDC
Maximum Output Current
0.5 A per Point
Maximum Group Current
4 A
Inrush Current
2 A Maximum for 100 ms
ON Response Time
0.2 ms Maximum
OFF Response Time
1.0 ms Maximum
Isolation
250 VAC Continuous, 1500 VAC for 1 Minute
Backplane Current Consumption
90 mA @ 5 VDC
External Field Supply
10.2–30 VDC
Status Indicators
32 Output LEDs, FLD PWR LED, OK LED
Mounting
VersaMax I/O Carrier
Operating Temperature
0°C to +60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.22 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200CHS022J
VersaMax Compact Box-Style I/O Carrier Module
IC200PWR102F
VersaMax Expanded Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL740G
VersaMax 16-Point Positive Logic Output Module
IC200MDL650E
VersaMax 32-Point Discrete Input Module
IC200MDL241B
VersaMax 16-Point AC Input Module
IC693MDL753F
Series 90-30 32-Point Positive Logic Output Module
Where It Excels in Industrial Use
GE VersaMax PLC digital output control systems
Industrial machine automation and sequencing
Manufacturing production line control
Motor starter and relay switching applications
Solenoid valve and actuator control
Packaging and material handling equipment
OEM automation control panels
Conveyor and warehouse automation systems
Distributed I/O installations
Factory modernization and VersaMax system expansion
Key Strengths at a Glance
32 positive logic (sourcing) discrete outputs
Two isolated groups of 16 output channels
Supports 12 VDC and 24 VDC industrial systems
0.5 A maximum output current per point
Fast switching performance with 0.2 ms ON response
Individual LED indication for every output channel
FLD PWR and OK diagnostic status LEDs
Optical isolation between field wiring and logic circuits
Compatible with VersaMax box-style and compact I/O carriers
Designed for dependable high-density digital output applications
Technical FAQs
1. What is the primary function of the GE IC200MDL750J?
The IC200MDL750J is a 32-point positive logic discrete output module that enables a VersaMax PLC to control external DC loads such as relays, solenoid valves, indicator lamps, and contactors.
2. How many output channels are available?
The module provides 32 discrete sourcing outputs, organized into two groups of 16 outputs for simplified field wiring and power distribution.
3. What output voltage does the module support?
The IC200MDL750J operates with 10.2 to 30 VDC, supporting both 12 VDC and 24 VDC nominal industrial control systems.
4. What is the maximum output current?
Each output point can deliver up to 0.5 A, while each group supports a maximum combined current of 4 A, depending on ambient operating conditions.
5. What does positive logic (sourcing) output mean?
Positive logic outputs switch the positive side of the DC supply to the load, supplying current when the output is energized. This configuration is commonly used with sinking field devices.
6. Does the module require an external field power supply?
Yes. An external 10.2–30 VDC power source is required to provide operating power for the connected output loads.
7. What diagnostic indicators are included?
The module features individual output LEDs for each channel, an OK LED indicating backplane power, and a FLD PWR LED indicating the presence of external field power.
8. What protection features are provided?
The IC200MDL750J incorporates optical isolation between the field side and logic side, helping improve noise immunity and protecting the controller from electrical disturbances.
9. Which VersaMax carriers are compatible with this module?
The module installs directly on compatible GE VersaMax IC200CHS-series I/O carriers, including both box-style and compact carrier models.
10. Which industrial devices are commonly controlled by this module?
Typical applications include motor starters, relays, solenoid valves, indicator lamps, alarm devices, pneumatic actuators, and other 12/24 VDC discrete loads requiring reliable PLC control.
