Technical Questions & Answers

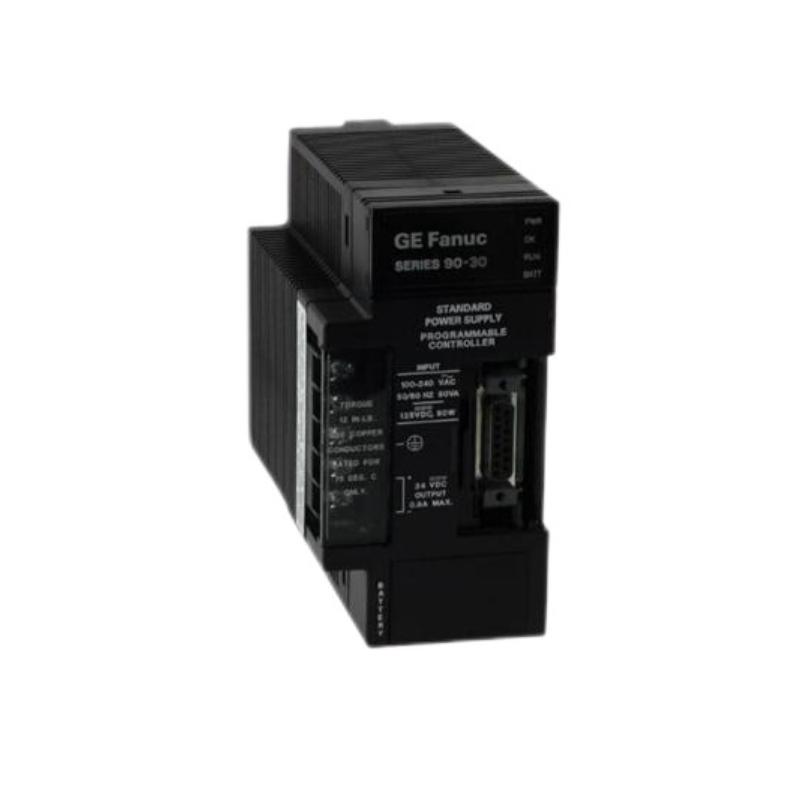

1. Can the IC694PWR321B operate with both AC and DC input power?
Yes. The module supports 120/240 VAC nominal input as well as 125 VDC nominal input, providing installation flexibility across a wide range of industrial power systems.
2. Which PLC platform is this power supply designed for?
It is designed for GE RX3i Serial Expansion systems and is intended for use with compatible RX3i expansion backplanes.
3. Does this module provide isolated auxiliary power?
Yes. It provides isolated 24 VDC output in addition to the standard logic power outputs, allowing reliable power distribution for compatible field devices.
4. Can this power supply support redundant load sharing?
No. This model is designed as a standard expansion power supply and does not include load-sharing redundancy.
5. What protection features contribute to reliable operation?
The module incorporates industrial-grade electrical isolation and stable power regulation to help maintain dependable PLC operation under normal operating conditions.
6. Is hot replacement recommended for this module?
No. The system should be powered down before replacing the module to protect connected equipment and maintain system integrity.
7. How is available power capacity determined during system design?
Engineers should calculate the combined power consumption of all installed modules to ensure the total load remains within the power supply's rated output capacity.
8. What types of output voltages are available?
The module provides +5 VDC logic power, +24 VDC relay power, and isolated +24 VDC output for compatible industrial devices.
9. Is this module suitable for continuous industrial operation?
Yes. It is engineered for continuous operation in demanding industrial automation environments when installed according to system specifications.
10. Why is this module preferred in RX3i expansion systems?
Its stable output, broad input voltage range, and dependable performance make it a practical choice for maintaining reliable power distribution throughout RX3i expansion installations.
