Technical Questions & Answers

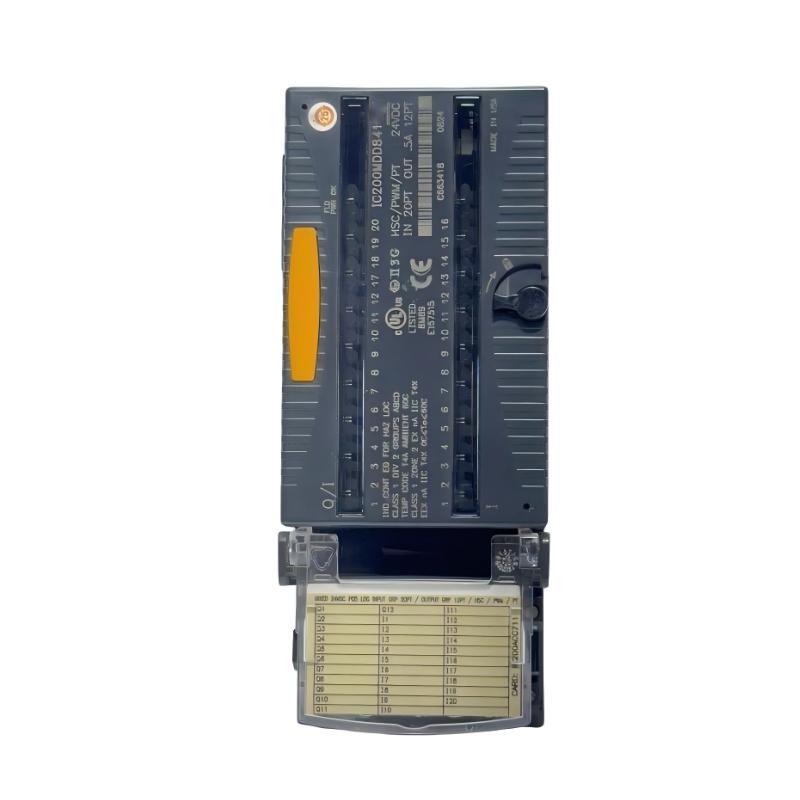

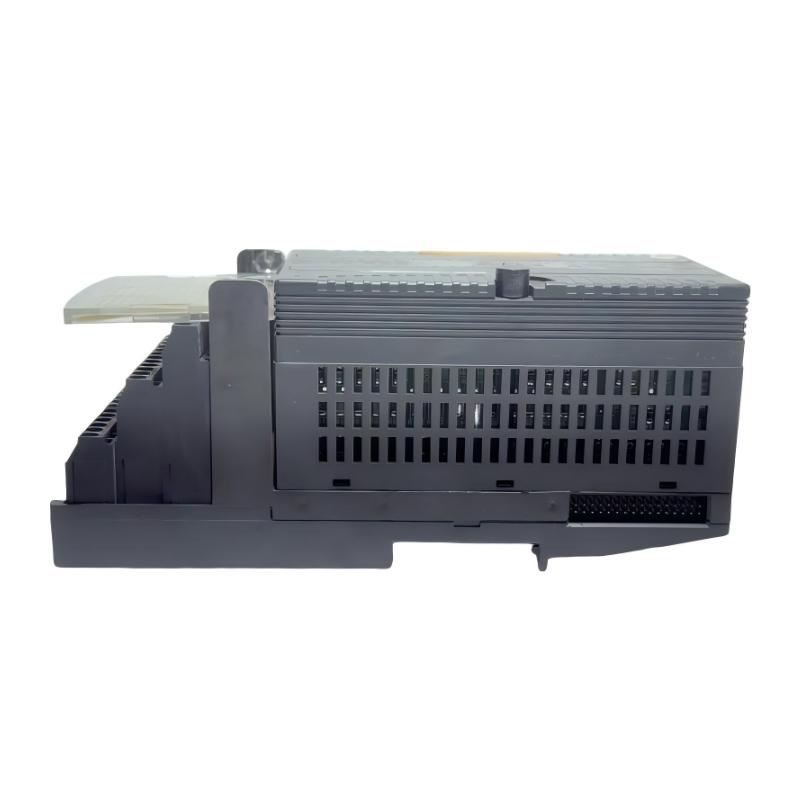

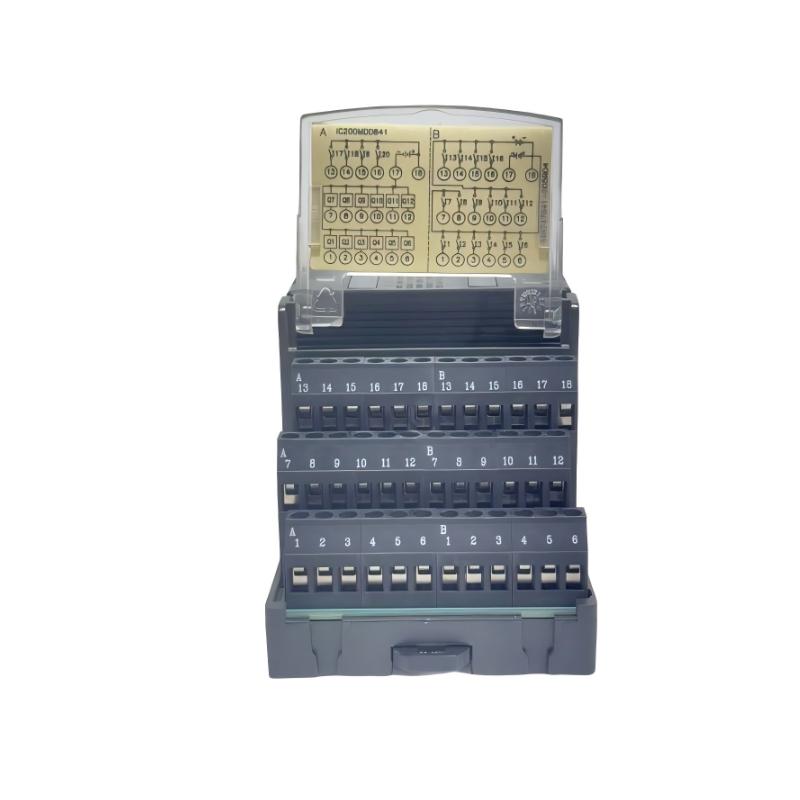

1. What is the primary function of the IC200MDD841-GF module?
The module combines mixed discrete I/O with integrated high-speed counter functionality, enabling accurate pulse processing, motion control, and high-speed industrial automation tasks.
2. How many configurable high-speed counters are available?
The module supports four configurable Type A high-speed counters, which can be configured for multiple counting modes depending on the application requirements.
3. Can the module process encoder signals?
Yes. It supports high-frequency pulse inputs from incremental encoders, making it suitable for positioning, speed measurement, and motion control applications.
4. What is the maximum input pulse frequency?
The high-speed counter channels can process input signals up to 80 kHz, ensuring accurate counting for demanding automation systems.
5. Does the module support pulse train and PWM outputs?
Yes. Four configurable outputs can operate as PWM, pulse train, ramping pulse train, or high-speed counter outputs according to the system configuration.
6. Can multiple counter operating modes be configured?
Yes. The module supports four Type A counters, two Type A counters with one A-Quad-B counter, or one A-Quad-B counter with homing capability.
7. Does the module require an external field power supply?
Yes. The module receives operating power from the VersaMax backplane, while the field I/O circuits require an external 24 VDC power supply.
8. How are module diagnostics performed?
Built-in status LEDs and diagnostic data help monitor module health, field power availability, and individual I/O channel status for efficient troubleshooting.
9. Is the IC200MDD841-GF suitable for continuous industrial operation?
Yes. It is engineered for continuous operation in industrial environments requiring reliable high-speed counting and deterministic control performance.
10. What distinguishes the GF revision from earlier versions?
The GF revision primarily reflects a manufacturing location update while maintaining the same functional features, compatibility, and operational performance as previous revisions.
