Built for Dependable VersaMax Power Distribution

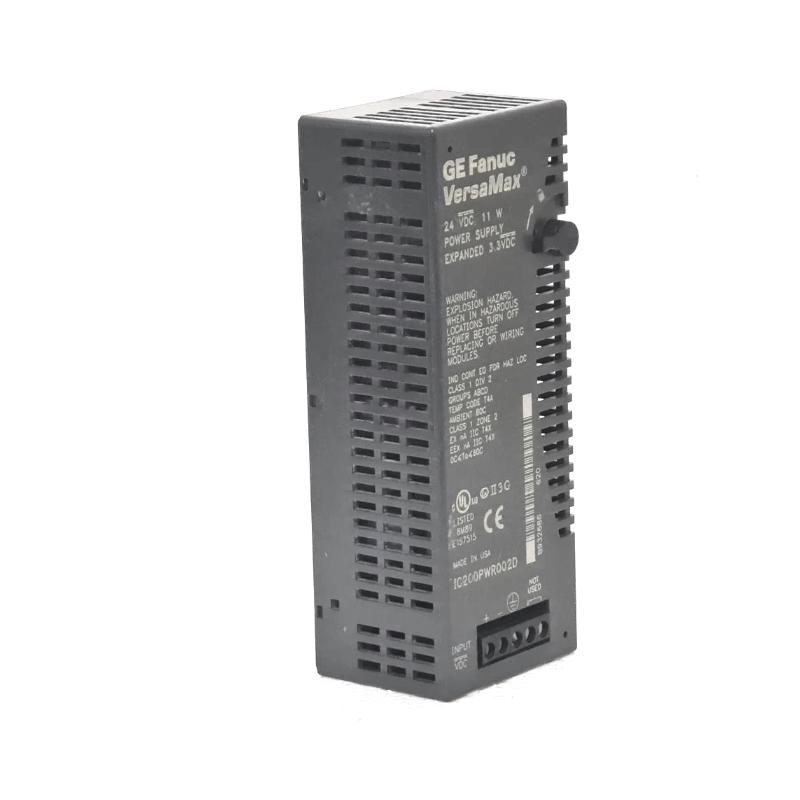

The GE IC200PWR002E Power Supply Module is engineered to deliver stable and efficient DC power for VersaMax automation systems. Supporting both primary and supplemental power supply configurations, it ensures reliable operation of CPUs, NIUs, and distributed I/O modules. With dual regulated outputs, integrated protection features, and a compact industrial design, the IC200PWR002E offers a dependable solution for expanding control systems while maintaining long-term operational stability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | IC200PWR002E |
| Product Type | Power Supply Module |
| Series | VersaMax |
| Input Voltage | 24 VDC Nominal |
| Input Voltage Range | 18–30 VDC |
| Input Power | 11 W |
| Output Voltage | 5 VDC, 3.3 VDC |
| Total Output Current | 1.5 A Maximum |
| 3.3 VDC Output Current | 1.0 A Maximum |
| Protection Features | Short Circuit, Overload, Reverse Polarity |
| Isolation | Non-Isolated |
| Installation | VersaMax CPU, NIU or Booster Carrier |
| Operating Temperature | 0°C to +60°C |
| Dimensions (W × H × D) | 49 × 133.4 × 39 mm |
| Weight | Approximately 0.14 kg |
Recommended Companion Models
| Model | Product Name |
|---|
| IC200CPU005 | CPU Module |
| IC200CHS006 | I/O Carrier |
| IC200ALG260 | Analog Input Module |
| IC200MDL650 | Digital Input Module |
Frequently Selected Alternatives
| Model | Product Name |
|---|
| IC200PWR001 | Power Supply Module |
| IC200PWR102 | Power Supply Module |
| IC200MDL740 | Digital Output Module |
| IC200NIU001 | Network Interface Unit |
Technical Questions & Answers
1. What is the primary purpose of the IC200PWR002E module?
The IC200PWR002E provides regulated backplane power for VersaMax CPUs, NIUs, and I/O modules, serving either as the primary station power supply or as a supplemental booster power supply.
2. Can this module be used as both a main and supplemental power supply?
Yes. When mounted on a CPU or NIU, it operates as the station's primary power supply. When installed on a Power Supply Booster Carrier, it functions as a supplemental power source for larger systems.
3. What input voltage does the module require?
The module operates from a nominal 24 VDC supply and accepts an input voltage range of 18–30 VDC for reliable industrial operation.
4. What output voltages are available?
It provides regulated 5 VDC and 3.3 VDC outputs to power VersaMax backplane electronics and compatible modules.
5. Does the module include protection against electrical faults?
Yes. It incorporates protection against short circuits, overload conditions, and reverse polarity to enhance operational reliability.
6. Is the power supply isolated?
No. The IC200PWR002E is a non-isolated DC power supply designed specifically for VersaMax backplane applications.
7. How should system power capacity be evaluated?
The combined current consumption of all installed CPU and I/O modules should be calculated to ensure the total backplane load remains within the module's rated output capacity.
8. Can the module be replaced while the system is energized?
No. Power should always be removed before installing or replacing the module to protect the controller and connected I/O equipment.
9. What applications is this power supply best suited for?
It is well suited for distributed automation systems requiring dependable DC power for VersaMax controllers, remote I/O stations, and industrial machine control.
10. What distinguishes the IC200PWR002E revision?
The "E" designation identifies a hardware revision while maintaining compatibility with standard VersaMax power supply functionality and system architecture.
