Brand:Schneider PLC Item No.:ATV340U07N4 Product Origin:France Product Dimensions:85 x 270 x 232.5 Product Weight:1.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

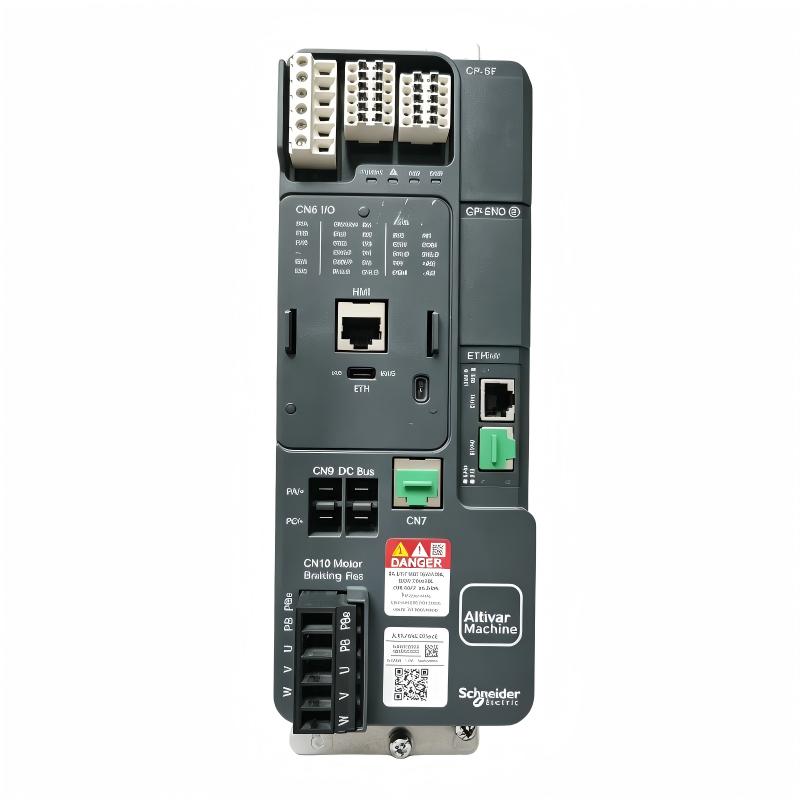

Schneider ATV340U07N4 Variable Speed Drive is a compact and efficient motor control solution developed for industrial automation applications requiring accurate speed adjustment and reliable operation.
Modern manufacturing equipment often requires smaller control components without sacrificing performance. The ATV340U07N4 provides an ideal balance between compact size and advanced motor control capability, helping machines achieve stable operation and improved productivity.
Designed for 0.75kW industrial motor applications, this variable speed drive is suitable for three-phase industrial power systems and compact automation equipment. It provides smooth motor control, flexible configuration options, and reliable performance for various machine applications.
The Schneider ATV340U07N4 features dimensions of 85 × 270 × 232.5 mm and a weight of 1.70 kg (3.75 lb). Its lightweight and compact structure allows efficient installation in limited spaces while maintaining excellent operating reliability.
With its combination of precise control, compact design, and industrial durability, Schneider ATV340U07N4 Variable Speed Drive is an excellent solution for small automation machines, OEM equipment, and industrial motor control upgrades.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
ATV340U07N4
Product Type
Variable Speed Drive
Product Series
Altivar Machine ATV340
Power Rating
0.75 kW
Voltage Range
380–480 V AC
Phase
Three Phase
Motor Control Type
Asynchronous Motor / Synchronous Motor Control
Frequency Range
50/60 Hz
Installation Type
Cabinet Mount
Protection Rating
IP20
Cooling Method
Forced Cooling
Communication Capability
Industrial Automation Network Integration
Dimensions
85 × 270 × 232.5 mm
Weight
1.70 kg (3.75 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV340U15N4
Variable Speed Drive
1.5kW Altivar Machine ATV340 drive
Schneider ATV340U22N4
Variable Speed Drive
2.2kW compact ATV340 drive
Schneider ATV340U30N4
Variable Speed Drive
3kW ATV340 series drive
Schneider VW3A1111
Display Terminal
Drive operation and configuration accessory
Schneider VW3A3607
Communication Module
Industrial communication expansion module
Popular Related Models
Model
Module Type
Application
Schneider ATV320 Series
Variable Speed Drive
General machine automation
Schneider ATV630 Series
Variable Speed Drive
Pump and fan control applications
Schneider ATV930 Series
High Performance Drive
Advanced industrial motor control
Schneider Altivar Process Series
Variable Frequency Drive
Process automation systems
Schneider Modicon M221
PLC Controller
Compact machine automation control
Applications
Schneider ATV340U07N4 Variable Speed Drive is a compact industrial inverter designed for precise motor control, machine automation, and small-power industrial equipment. As a member of the Altivar Machine ATV340 series, this drive provides reliable speed regulation, smooth motor operation, and efficient control performance for modern automation systems.
Typical application areas include:
Compact packaging machines
Small conveyor systems
Assembly equipment
Machine tools
Textile and printing equipment
Small industrial fans and pumps
Automated production machines
Material handling systems
The Schneider ATV340U07N4 Variable Speed Drive is designed for 0.75kW motor applications and provides stable operation for industrial equipment requiring accurate speed control, compact installation, and dependable performance.
Its optimized design makes it suitable for machine builders and automation engineers who need a reliable drive solution for space-limited control cabinets while maintaining excellent motor control capability.
Advantages
Schneider ATV340U07N4 Variable Speed Drive combines compact construction, advanced motor control technology, and reliable industrial performance to meet the needs of modern machine automation.
Space-Saving Compact Design
The ATV340U07N4 features a small and efficient structure, allowing easy installation in compact electrical cabinets and machine control panels.
Accurate Motor Regulation
The drive provides precise speed and torque control, helping machines achieve smoother operation and improved production consistency.
Reliable Industrial Performance
Designed for industrial environments, the ATV340U07N4 delivers stable performance during continuous operation and changing load conditions.
Efficient Energy Management
By adjusting motor speed according to actual application requirements, the drive helps reduce energy waste and improve system efficiency.
Flexible Automation Compatibility
The drive can be integrated into industrial automation systems, allowing coordinated operation with PLC controllers and machine control platforms.
Easy Machine Integration
The compact design, flexible configuration, and reliable operation make it a practical choice for OEM equipment manufacturers and system integrators.
Technical FAQs
Q1: What is the main function of Schneider ATV340U07N4?
A: It controls motor speed, torque, and acceleration by regulating the output frequency and voltage supplied to the motor.
Q2: What motor power is suitable for ATV340U07N4?
A: It is designed for 0.75kW industrial motor applications requiring reliable variable speed control.
Q3: Why does ATV340U07N4 trigger an overcurrent fault?
A: Possible causes include excessive mechanical load, incorrect motor parameters, wiring problems, short circuits, or unsuitable acceleration settings.
Q4: How can unstable motor speed problems be solved?
A: Check motor parameters, control settings, load conditions, wiring connections, and drive operating status.
Q5: What causes ATV340U07N4 overheating during operation?
A: Possible reasons include poor ventilation, blocked cooling paths, excessive load, high ambient temperature, or improper installation.
Q6: What should be checked if the motor cannot start?
A: Verify input power, motor wiring, control commands, safety settings, parameter configuration, and fault records.
Q7: Why is motor autotuning required during commissioning?
A: Motor autotuning allows the drive to identify motor characteristics and improve speed and torque control accuracy.
Q8: Can ATV340U07N4 be integrated into PLC automation systems?
A: Yes, it can be used in industrial automation systems requiring coordinated motor control.
Q9: What maintenance is recommended for ATV340U07N4?
A: Regular inspection of wiring, cooling conditions, installation environment, and operating parameters is recommended.
Q10: What should be confirmed before replacing ATV340U07N4?
A: Confirm the model number, motor specifications, voltage requirements, installation conditions, and application requirements.
