Brand:Schneider PLC Item No.:STBXBE1300K Product Origin:France Product Dimensions:18.4 x 120 x 70 mm Product Weight:0.10 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

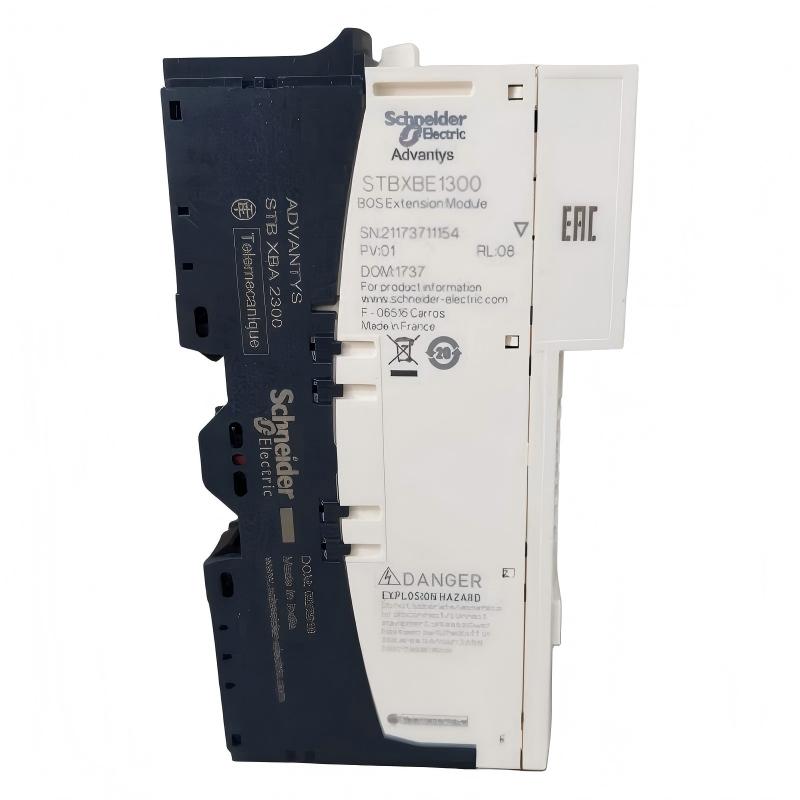

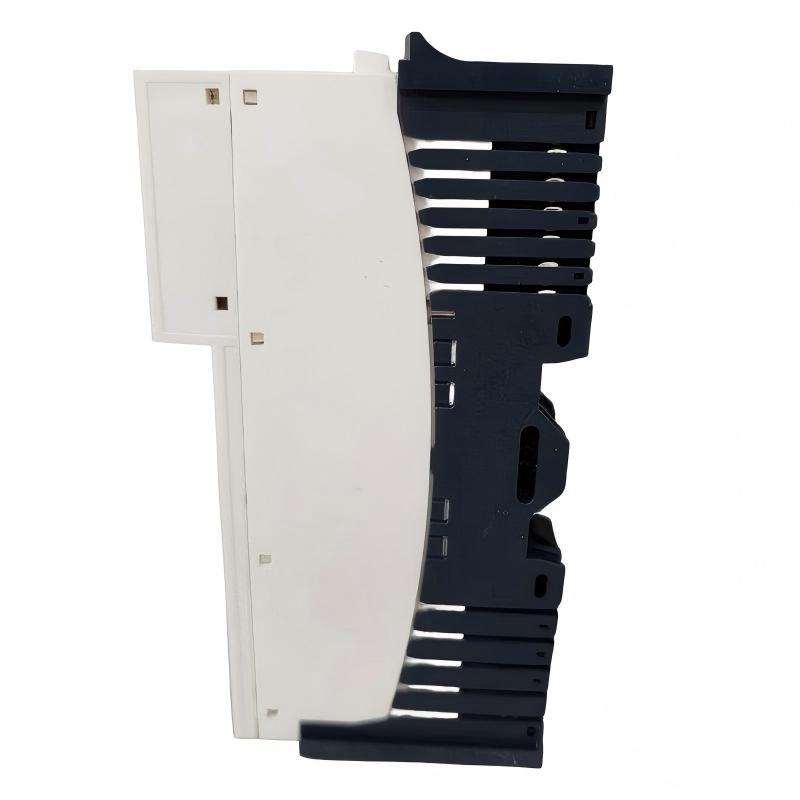

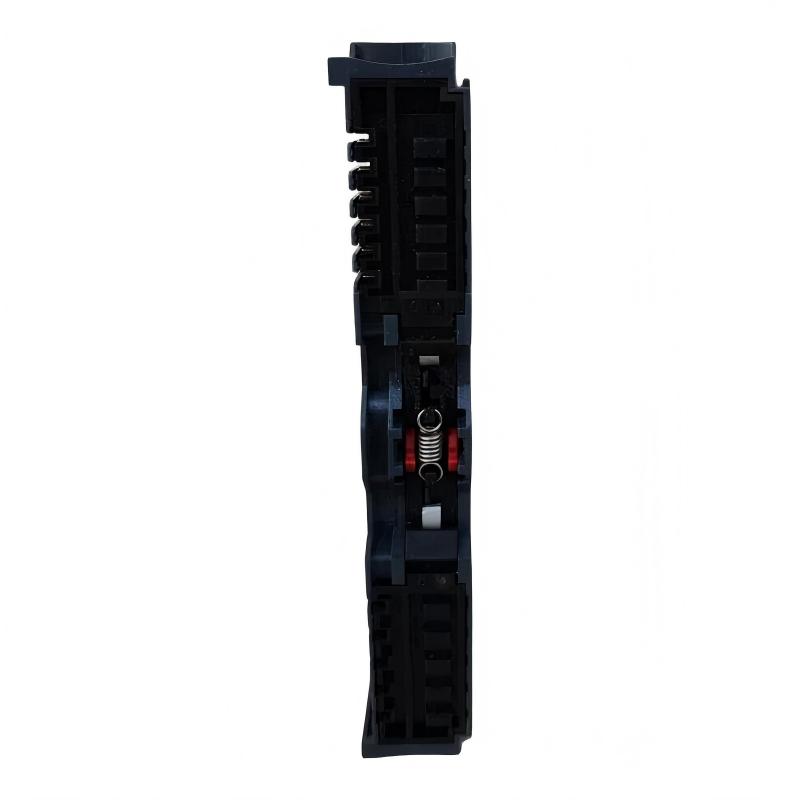

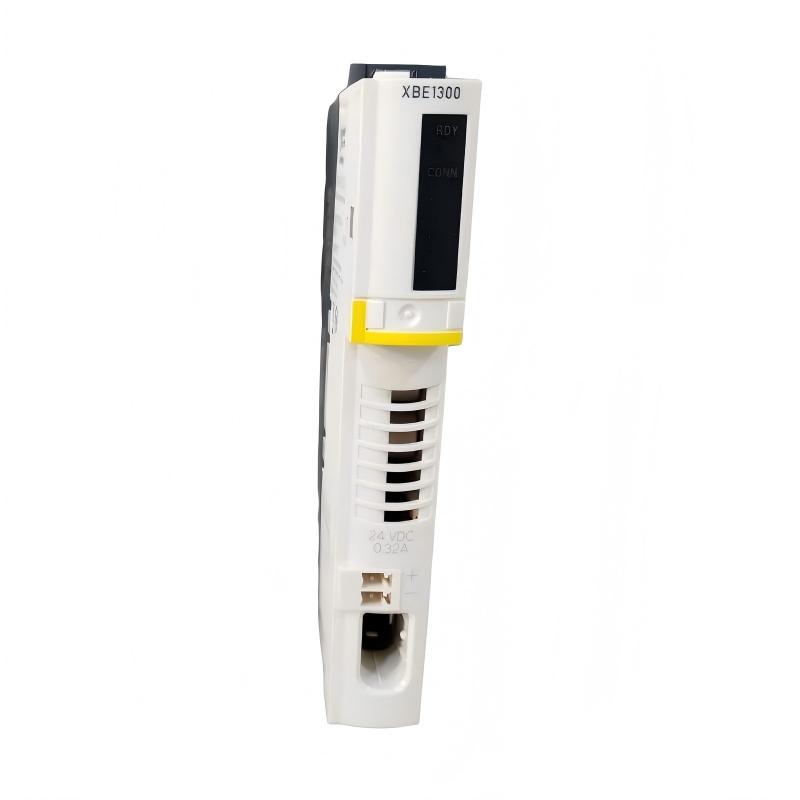

Schneider STBXBE1300K Internal Bus Expansion Kit is a key expansion component for Modicon STB distributed I/O systems. It provides a practical method for increasing system capacity by extending the internal bus structure and supporting additional I/O modules.
As industrial automation systems become more complex, manufacturers often need additional sensors, actuators, and field devices. A flexible distributed I/O structure allows machines to expand without replacing the complete control system. The STBXBE1300K provides this capability by extending the existing STB architecture and maintaining reliable communication between connected modules.
The expansion kit is designed for industrial applications requiring modular system design, efficient cabinet organization, and long-term operational stability. It helps automation engineers create scalable solutions for production lines, machine upgrades, and distributed control systems.
Schneider STBXBE1300K features dimensions of 18.4 × 120 × 70 mm and a weight of 0.10 kg (0.22 lb). Its compact design allows easy integration into automation cabinets while minimizing additional installation space.
With reliable internal bus expansion capability, flexible system integration, and industrial-grade durability, Schneider STBXBE1300K Internal Bus Expansion Kit is an ideal choice for Modicon STB system expansion, automation upgrades, and modular machine control applications.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
STBXBE1300K
Product Type
Internal Bus Expansion Kit
Product Series
Modicon STB
Expansion Function
Internal Bus Extension
Application
STB Distributed I/O Expansion
Compatible System
Modicon STB Platform
Installation Type
DIN Rail Mount
Power Supply
24 V DC System Power
Communication Function
Internal Bus Extension
Protection Rating
IP20
Dimensions
18.4 × 120 × 70 mm
Weight
0.10 kg (0.22 lb)
Recommended Related Models
Model
Product Type
Description
Schneider STBXBE1100K
Internal Bus Expansion Kit
STB expansion segment module
Schneider STBNIP2311
Network Interface Module
Ethernet Modbus TCP/IP communication module
Schneider STBNFP2212
Network Interface Module
FIPIO communication interface module
Schneider STBNMP2212
Network Interface Module
Modbus Plus communication module
Schneider STBCPS2111K
Power Supply Module
STB system power supply module
Popular Related Models
Model
Module Type
Application
Schneider Modicon STB Series
Distributed I/O System
Modular remote I/O applications
Schneider Modicon M340
PLC Controller
Medium-scale automation control
Schneider Modicon M580
PLC Controller
Advanced industrial automation
Schneider Premium Series
PLC Controller
Industrial control applications
Schneider Advantys STB Series
Distributed I/O Platform
Flexible machine automation solutions
Applications
Schneider STBXBE1300K Internal Bus Expansion Kit is an expansion component designed for Modicon STB distributed I/O systems. It allows users to extend the internal bus structure of an STB island, making it possible to add more I/O modules and create larger automation configurations without changing the existing PLC control architecture.
Typical application areas include:
Factory automation systems
Distributed remote I/O applications
Packaging machinery
Assembly production lines
Material handling equipment
Industrial machine upgrades
Process control systems
Automated manufacturing equipment
The Schneider STBXBE1300K Internal Bus Expansion Kit is mainly used when an existing STB I/O island requires additional module capacity or a more flexible layout. By extending the internal communication bus, it helps engineers build modular automation systems with improved scalability and easier maintenance.
This expansion solution is especially suitable for OEM machine builders and industrial users who need to increase field device connections while maintaining a compact and organized control system design.
Advantages
Schneider STBXBE1300K Internal Bus Expansion Kit provides reliable system expansion capability, flexible installation options, and stable performance for Modicon STB automation architectures.
Flexible I/O System Expansion
The STBXBE1300K allows additional STB modules to be added to existing distributed I/O structures, helping users expand automation functions according to production requirements.
Reliable Internal Bus Communication
The module provides stable communication between STB segments, ensuring consistent data transmission throughout expanded I/O configurations.
Space-Efficient Design
Its compact structure helps reduce cabinet space requirements and supports efficient installation in control panels.
Easy Integration with STB Systems
The expansion kit is designed for Modicon STB platforms, allowing engineers to extend existing systems without major hardware redesign.
Improved Automation Flexibility
By supporting modular I/O expansion, the STBXBE1300K helps create scalable automation solutions for different machine configurations.
Enhanced Maintenance Efficiency
A modular expansion structure makes system inspection, troubleshooting, and future upgrades easier for maintenance teams.
Technical FAQs
Q1: What is the main function of Schneider STBXBE1300K?
A: The STBXBE1300K extends the internal bus structure of Modicon STB distributed I/O systems, allowing additional I/O segments to be connected.
Q2: Where is STBXBE1300K installed in an STB system?
A: It is installed within the STB island architecture to provide internal bus expansion between standard I/O segments.
Q3: Why are additional I/O modules not recognized after installing STBXBE1300K?
A: Possible causes include incorrect module arrangement, poor connector contact, improper installation sequence, or system configuration errors.
Q4: What should be checked when the internal bus communication fails?
A: Check module connections, power supply conditions, expansion component installation, and STB system configuration.
Q5: Can STBXBE1300K be used with existing Modicon STB modules?
A: Yes, it is designed for Modicon STB distributed I/O systems and works with compatible STB modules.
Q6: What causes instability in an expanded STB system?
A: Common causes include loose connections, insufficient power supply, incorrect module configuration, or damaged expansion components.
Q7: Does STBXBE1300K require configuration software?
A: Configuration requirements depend on the complete STB system structure and the connected controller environment.
Q8: Can STBXBE1300K improve machine expansion capability?
A: Yes, it allows additional I/O modules to be added, increasing system flexibility for future automation upgrades.
Q9: What maintenance is recommended for STBXBE1300K?
A: Regular inspection of module connections, system power conditions, and communication status is recommended.
Q10: What should be confirmed before replacing STBXBE1300K?
A: Confirm the STB system architecture, compatible expansion requirements, module arrangement, and application conditions.
